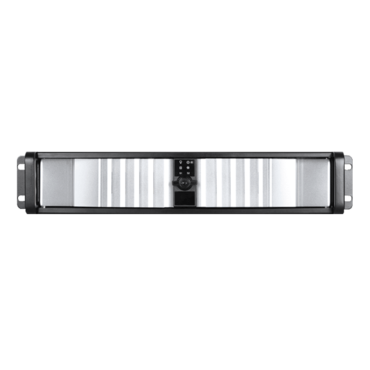

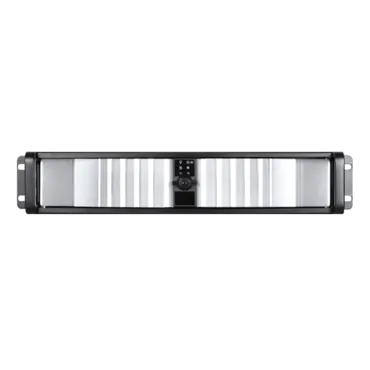

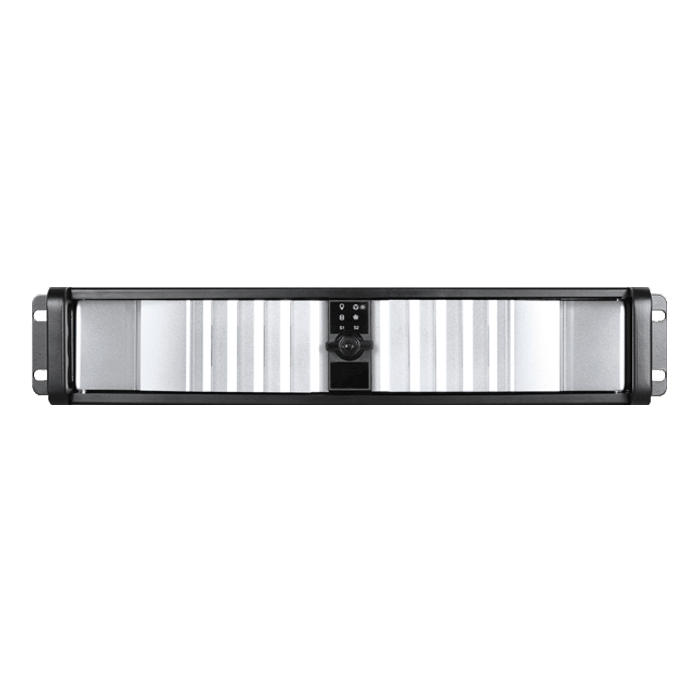

D-200SEA-SL, Silver Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis
D-200SEA-SL, Silver Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis
D-200SEA-SL, Silver Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis
D-200SEA-SL, Silver Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis

D-200SEA-SL, Silver Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis

  • SKU: 9109874
  • Manufacturer: ISTARUSA
  • MPN: D-200SEA-SL
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$224.25
Quantity:
D-200SEA-SL, Silver Bezel, 2x 5.25, 2x 3.5" Bays, No PSU, ATX, Black, 2U Chassis

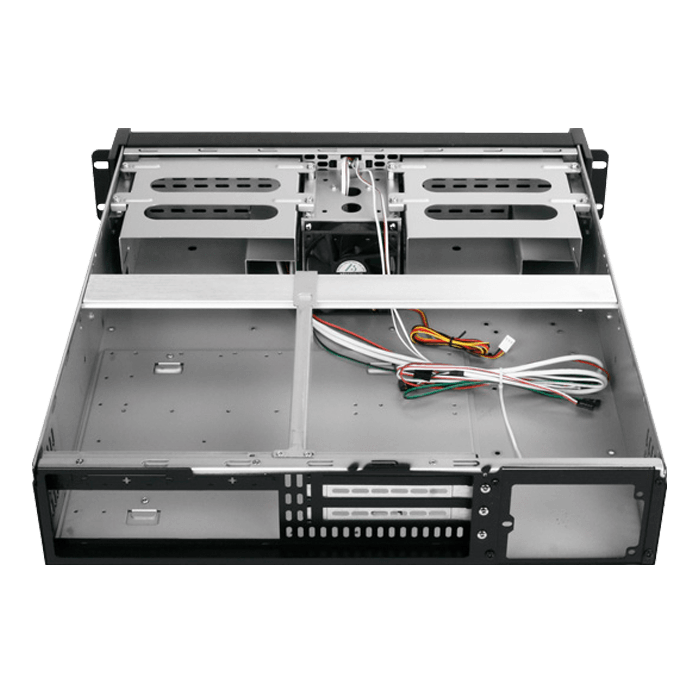

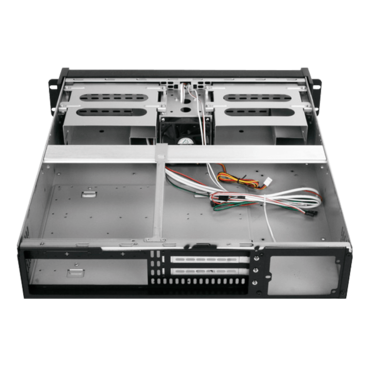

The 2U compact industrial rackmount chassis D Storm D-200SEA-SL. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

D-200SEA-SL 2U Compact Stylish Rackmount Chassis with SEA Bezel

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 80mm x1 cooling fan
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis
Model Number D-200SEA
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 3.5" Drives: 2
5.25" Drives: 2
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 2U

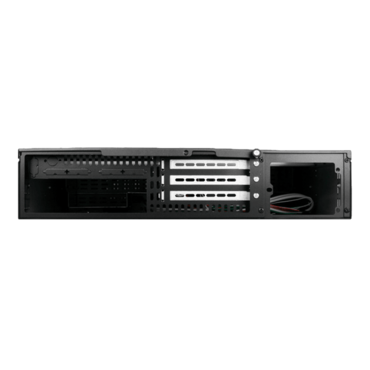

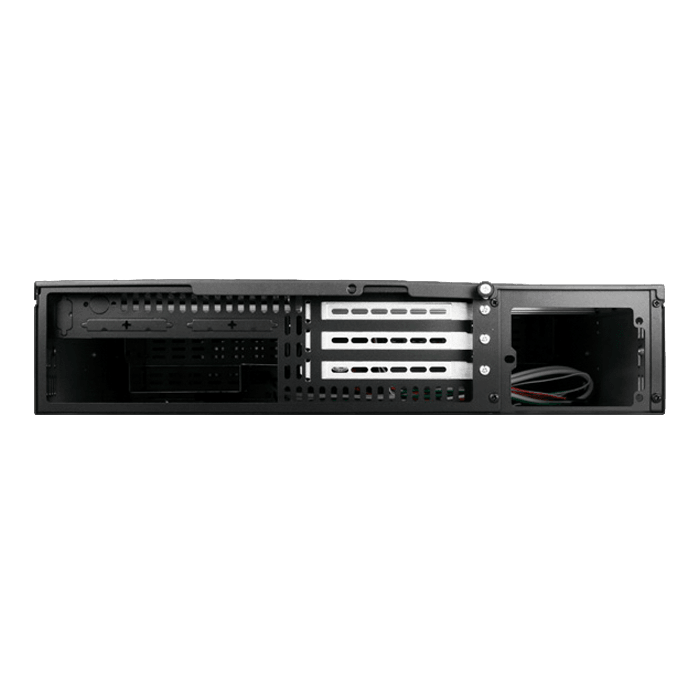

Expansion Slots 3
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Silver
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan 1x80mm
Optional Fan: 60mm x3 (bracket DD-FANGUARD-6 required)
Ordering Information
(Part Number)		 Blue Bezel:D-200SEA
Black Bezel:D-200SEA-BK
Red Bezel:D-200SEA-RD
Silver Bezel:D-200SEA-SL
Dimensions (WxHxD) 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm
Notes - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR.
