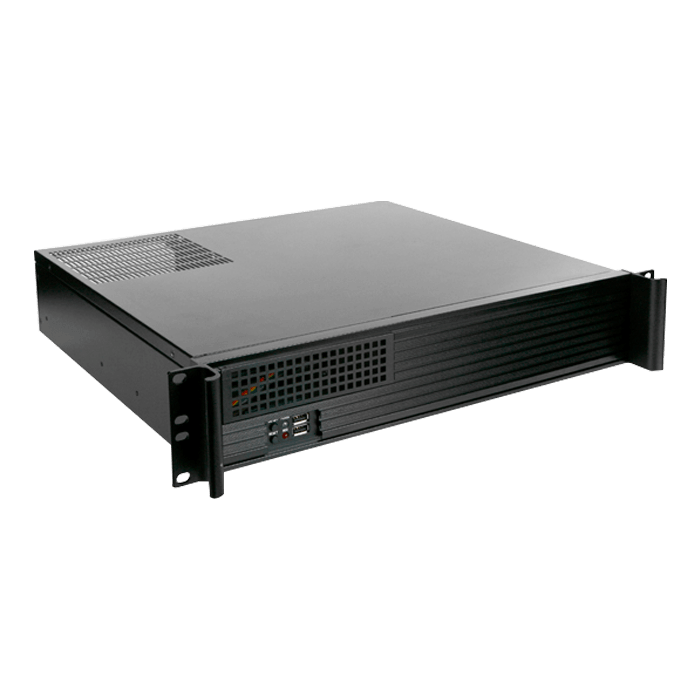

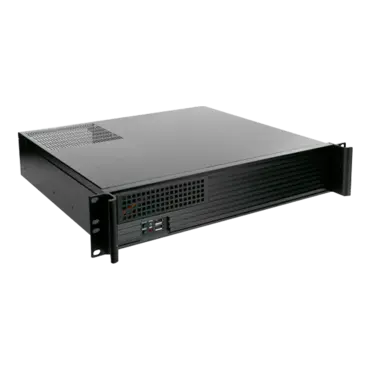

D-213-MATX, 1x 5.25", 2x 3.5" Drive Bays, No PSU, microATX, Black, 2U Chassis

SKU: 3740053

Manufacturer: ISTARUSA

MPN: D-213-MATX

Availability: Available


Price: $83.95
or as low as $3/month
Quantity:

D-213-MATX is a reliable and stable 2U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 16" in depth and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX supports a standard ATX PS2 power supply to meet regular server system applications.

D-213-MATX 2U Compact Rackmount microATX Rackmount Chassis ATX Power Supply Compatible

  • Industrial compact chassis with 16" depth
  • Supports standard ATX power supplies
  • 2x front access USB 2.0 ports
  • Supports 4x low-profile add-on cards
  • The most economic 2U chassis with one 5.25" bay
Model Number D-213-MATX
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 3.5" Drive (internal): 2
5.25" Drives: 1
Indicators Power, HDD
Switches Power, Reset
Supported PSU Type PS2
Expansion Slots 4 (Low profile)
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Zinc-Coated Steel
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 9.6 x 9.6 (microATX, mini-ITX)
Optional Fan: 80mmx2
Dimensions (WxHxD) 19.00" x 3.50" x 16.85"
482.6 mm x 88.9 mm x 428.0 mm
Notes - optional sliding rails TC-RAIL-20 will only work with new version of this chassis with 4 mounting holes on sides
