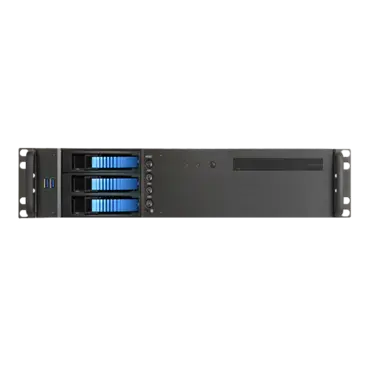

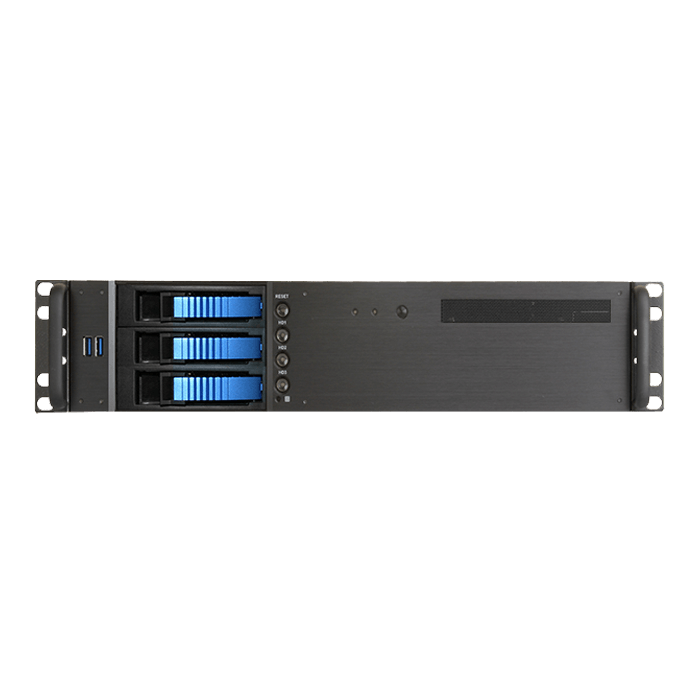

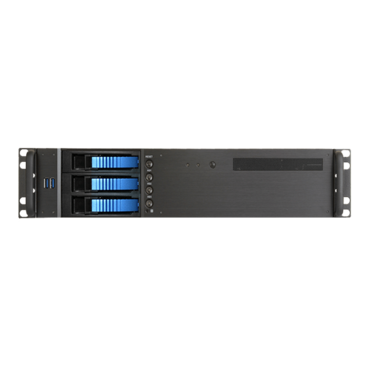

D-230HB-T-BLUE, Blue HDD Handle, 1x Slim 5.25", 3x 3.5" Hotswap Bays, No PSU, microATX, Black, 2U Chassis

  • SKU: 9613353
  • Manufacturer: ISTARUSA
  • MPN: D-230HB-T-BLUE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
  • 3 hotswappable 3.5" bays for HDD quick swap
  • Compatible with 2.5" HDDs/SSDs
  • Supports standard ATX power supplies
  • Slim optical drive bay available
  • USB 3.0 in front for easy access
  • Sleek aluminum front w/ various color options for HDD handles
  • Rackmount or desktop convertible
  • Supports 6.0 Gb/s hard drives
Model Number D-230HB-T
RoHS Compliance Version Yes
Form factor 2 U
Standard Drive Bays 2.5" Drive (internal): 1
3.5" Drive (internal): 1
Hotswap 3.5": 3
Slim 5.25" Optical: 1
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators Power, HDD
Switches Power
Expansion Slots 4 (Low profile)
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis SGCC 0.8mm
Color of Main Chassis Black
Front Connector 2x USB 3.0
Motherboard Size 9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan 1x80mm
Ordering Information
(Part Number)
Black HDD Handle:D-230HB-T
Blue HDD Handle:D-230HB-T-BLUE
Red HDD Handle:D-230HB-T-RED
Silver HDD Handle:D-230HB-T-SILVER
Dimensions (WxHxD) 18.98" x 3.48" x 16.33"
482.1 mm x 88.4 mm x 414.8 mm
Notes - fits standard ATX power supply with length no more than 140mm. - chassis without HDD cage is: D-230H-T-BPU
