D-313SE-MATX, 2x 5.25", 5x 3.5", Drive Bays, No PSU, microATX, Black, 3U Chassis

SKU: 6913066

Manufacturer: ISTARUSA

MPN: D-313SE-MATX

Availability: Unknown


Price: $108.10
or as low as $3/month
Quantity:

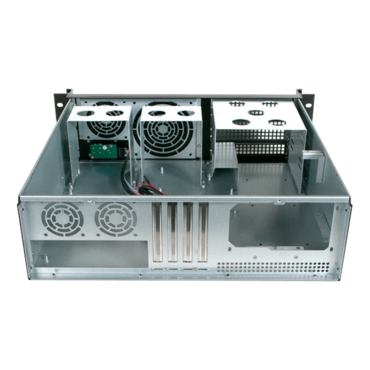

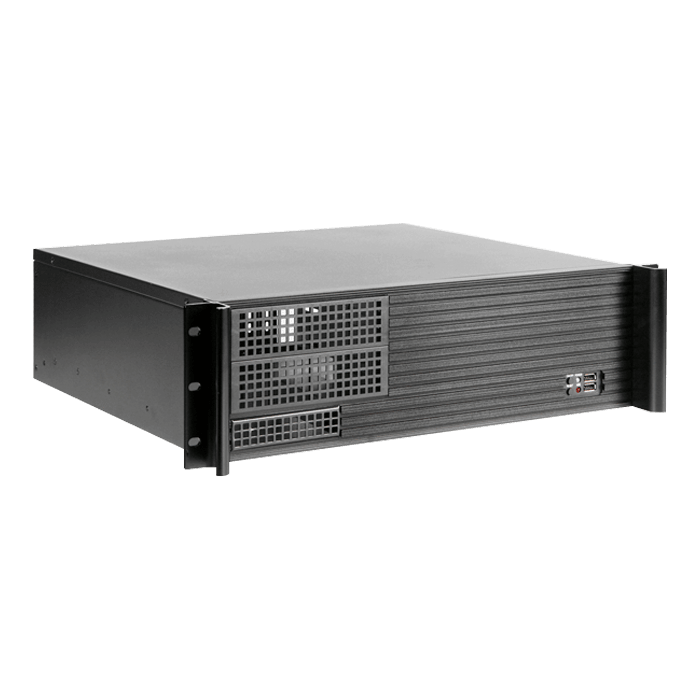

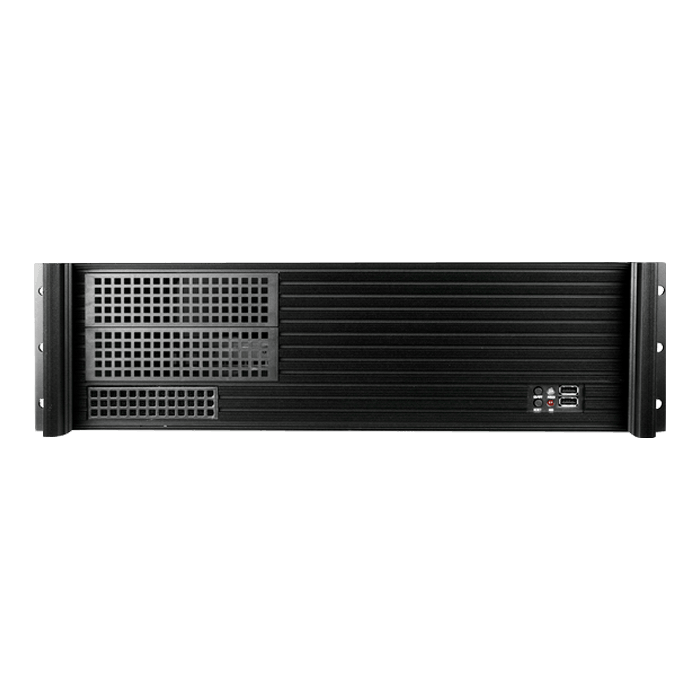

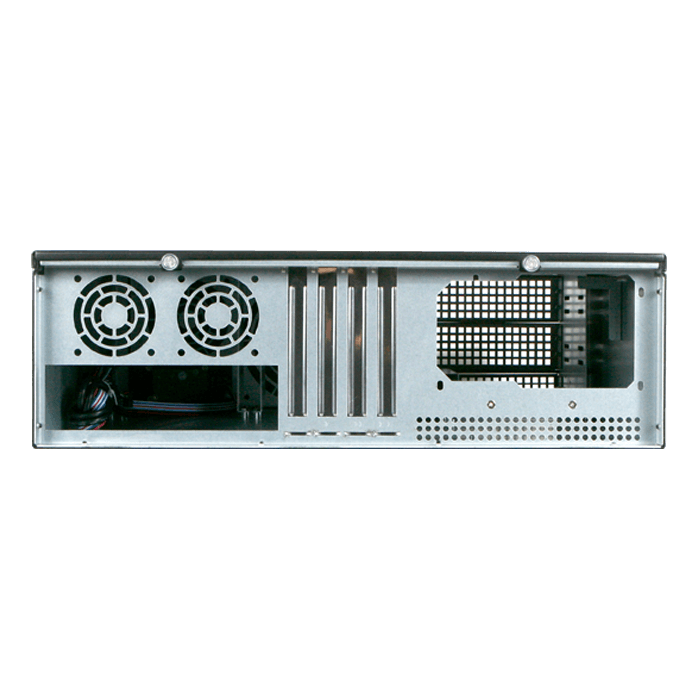

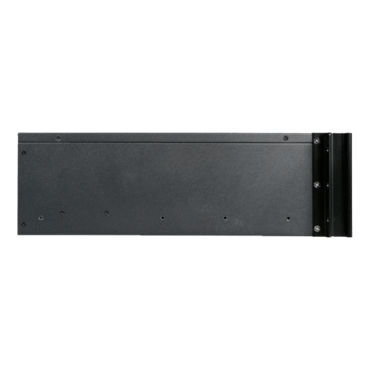

D-313SE-MATX is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional 120mm and 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-313SE-MATX supports a standard ATX power supply to meet regular server system applications.

D-313SE-MATX 3U Compact Rackmount Chassis ATX Power Supply Compatible

  • Supports Front Access USB2.0 x2
  • Power and HDD LED
  • Power and Reset Switch
  • Support ATX PS2 Power Supply
  • Support 4 x Full Height Add-on Cards
Model Number D-313SE-MATX
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 4
5.25" Drives: 2
Indicators Power, HDD
Switches Power, Reset
Supported PSU Type PS2
Expansion Slots 4 (full height & up to 165mm deep with hdds installed)
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Zinc-Coated Steel
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 9.6 x 9.6 (microATX, mini-ITX)
Optional Fan: 120mm x1, 80mm x1, 60mm x2
Dimensions (WxHxD) 19.00" x 5.25" x 16.86"
482.6 mm x 133.3 mm x 428.2 mm
Notes - mounting a hard drive in the external 3.5" bay will need to detach the 3.5" bay cover.
