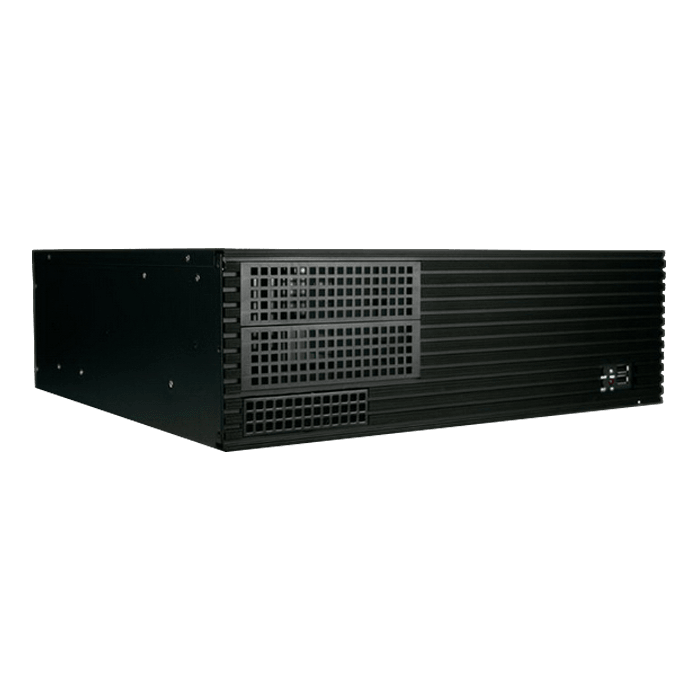

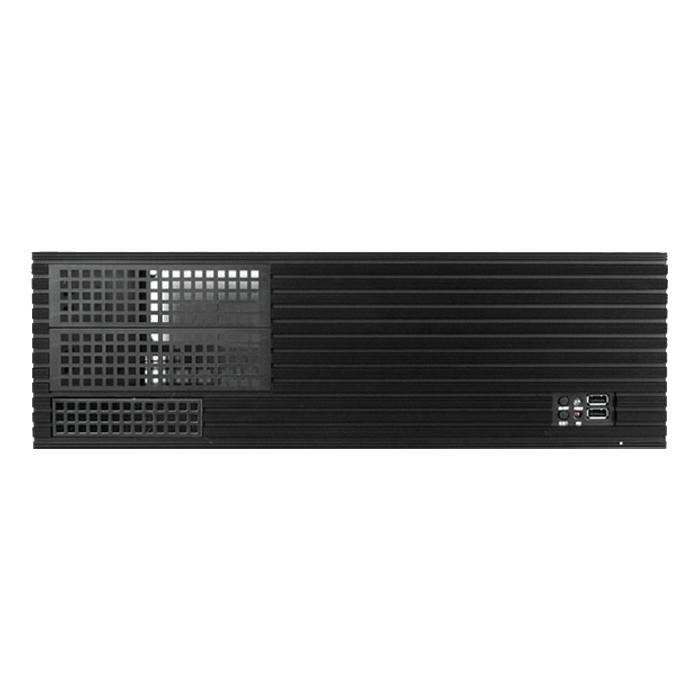

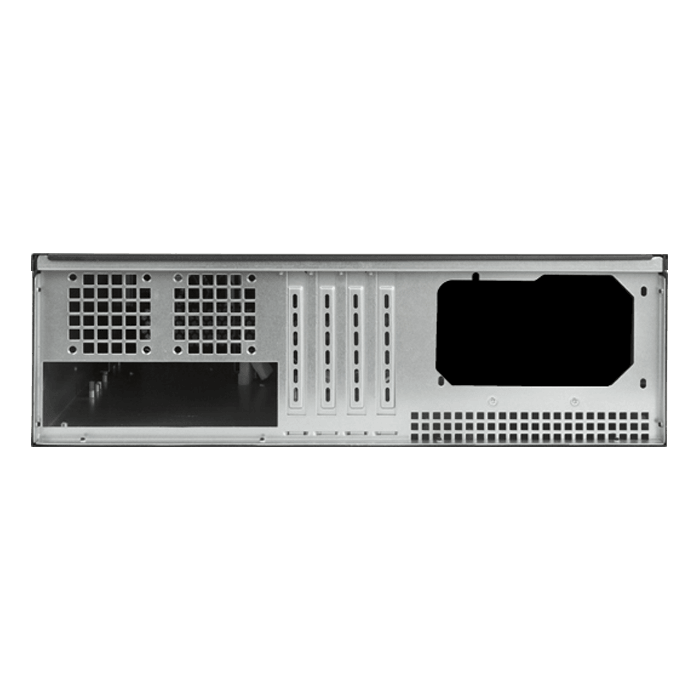

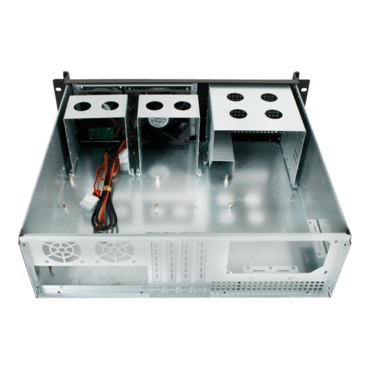

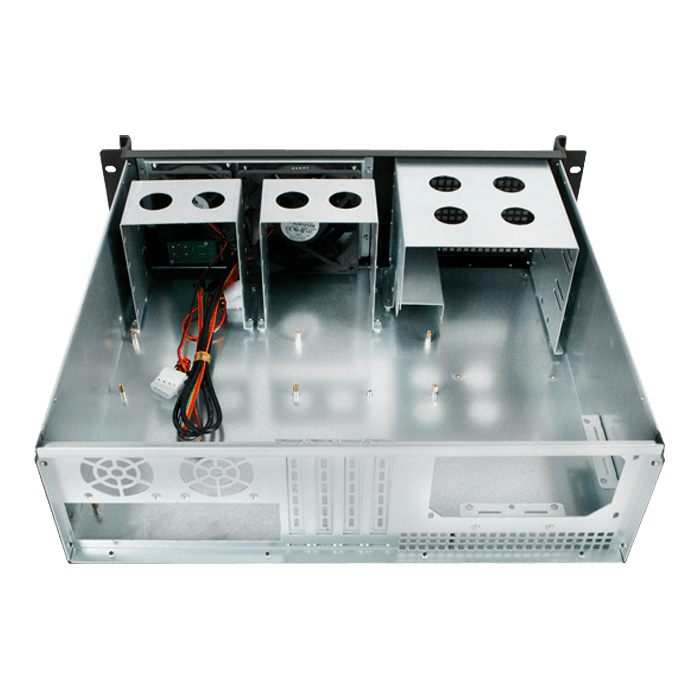

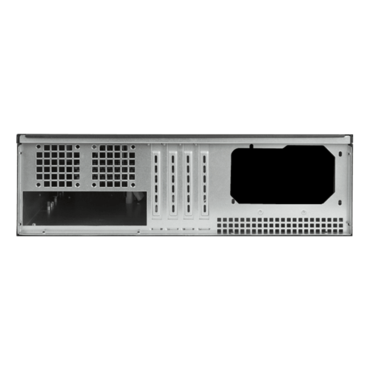

D-313SE-MATX-DT is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional 120mm and 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-313SE-MATX-DT supports a standard PS2 power supply to meet regular server system applications.
D-313SE-MATX-DT 3U Compact Server/Desktop Chassis compatible with PS2 Power Supply
Model Number | D-313SE-MATX-DT |
RoHS Compliance | Yes |
Form factor | 3 U |
Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 4 5.25" Drives: 2 |
Indicators | Power, HDD |
Switches | Power, Reset |
Supported PSU Type | PS2 |
Expansion Slots | 4 (full height & up to 165mm deep with hdds installed) |
Material of Front Bezel | Aluminum |
Material of Handle | Aluminum |
Material of Main Chassis | Zinc-Coated Steel |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 9.6 x 9.6 (microATX, mini-ITX) |
Optional Fan: | 120mm x1, 80mm x1, 60mm x2 |
Dimensions (WxHxD) | 19.00" x 5.25" x 15.56"
482.6 mm x 133.3 mm x 395.2 mm |
Notes | - mounting a |
