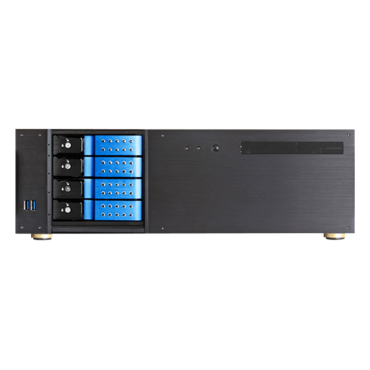

D-340HN-DT-BLUE 3U Compact 4x3.5" Bay Trayless Hotswap ATX Desktop Chassis
- 4 trayless and hotswappable 3.5" bays for HDD quick swap
- Supports standard ATX power supplies
- USB 3.0 in front for easy access
- Slim optical drive bay (12.7mm height) available
- Supports 6.0 Gb/s hard drives
- Sleek aluminum front w/ various color options for HDD handles
- Rackmount or desktop convertible
Model Number | D-340HN-DT |
RoHS Compliance | Yes |
Form factor | 3 U |
Standard Drive Bays | 3.5" Drive (internal): 3
Hotswap 3.5": 4 Slim 5.25" Optical: 1 |
Indicators | Power, HDD |
Switches | Power |
Expansion Slots | 4 |
Material of Front Bezel | Aluminum |
Material of Handle | Aluminum |
Material of Main Chassis | SGCC 0.8mm |
Color of Main Chassis | Black |
Front Connector | 2x USB 3.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 2x80mm |
Optional Fan: | 80mm x1 |
Ordering Information
(Part Number) |
Black HDD Handle:D-340HN-DT
Blue HDD Handle:D-340HN-DT-BLUE Red HDD Handle:D-340HN-DT-RED Silver HDD Handle:D-340HN-DT-SILVER |
Dimensions (WxHxD) | 18.98" x 5.22" x 18.66"
482.1 mm x 132.6 mm x 474.0 mm |
Notes | - the first three expansion slots on an ATX motherboard cannot be used if using an ATX MB in this chassis. |
