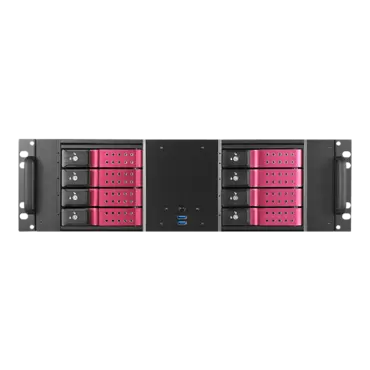

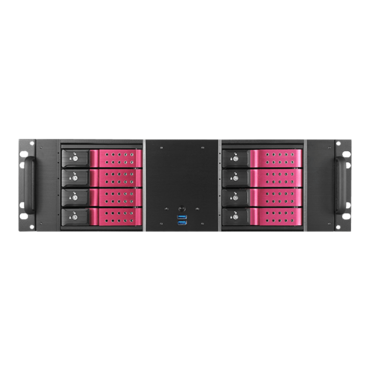

D-380HN-RED 3U Compact 8x 3.5" Bay Trayless Hotswap ATX Chassis
Model Number | D-380HN |
RoHS Compliance | Yes |
Form factor | 3 U |
Standard Drive Bays | 3.5" Drive (internal): 1
Hotswap 3.5": 8 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD |
Switches | Power |
Expansion Slots | 4 |
Material of Front Bezel | Aluminum |
Material of Handle | Aluminum |
Material of Main Chassis | SGCC 0.8mm |
Color of Main Chassis | Black |
Front Connector | 2x USB 3.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 2x80mm |
Optional Fan: | 80mm x1 |
Ordering Information
(Part Number) |
Black HDD Handle:D-380HN
Blue HDD Handle:D-380HN-BLUE Red HDD Handle:D-380HN-RED Silver HDD Handle:D-380HN-SILVER Wood Look HDD Handle:D-380HN-WOOD |
Dimensions (WxHxD) | 18.98" x 5.22" x 20.43"
482.1 mm x 132.6 mm x 518.9 mm |
Notes | - the first three expansion slots on an ATX motherboard cannot be used if using an ATX MB in this chassis. |
