D-416-70P8B, 40x 2.5" Hotswap, E-ATX, Black, 4U Chassis
Quantity:
- SKU: 12486574
- Manufacturer: ISTARUSA
- MPN: D-410-BN40SA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,083.29
D-416-70P8B, 40x 2.5" Hotswap, E-ATX, Black, 4U Chassis

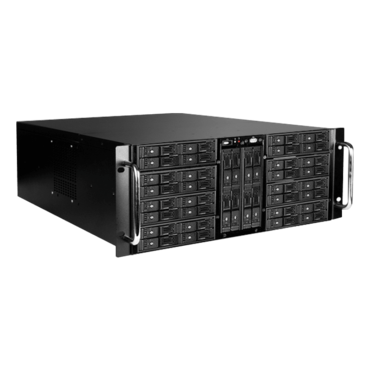

4U industrial rackmount chassis D-410-BN40SA combines with BPN 2.5" hdd trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 40 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-BN40SA provides server or cluster maximum reliability and performance
- Supports Up to 40x 2.5" Hard Drives
- Supports SATA 6.0Gb/s HDDs
- Front Access USB2.0 with Power and HDD LEDs
- 120mm x 2 Cooling Fans on Sides
- Trayless Hard Drive Enclosure Design
- PS2 mini Redundant PSU Compatible
| Model Number | D-410-BN40SA |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | Hotswap 2.5": 40 |
| Hotswap HDD Type: | 2.5" SATA I/II/III |
| Indicators | Power, HDD |
| Switches | Power, Reset |

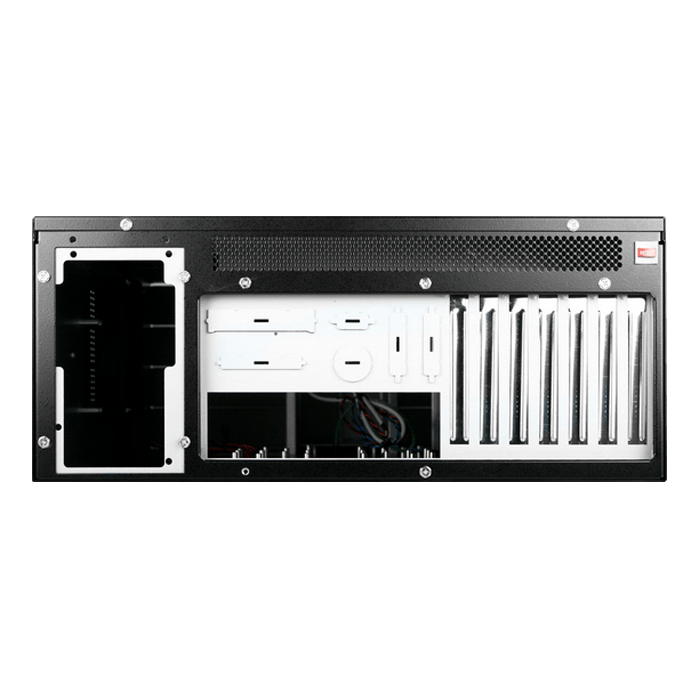

| Expansion Slots | 7 |
| Material of Main Chassis | Steel |
| Color of Main Chassis | Black |
| Front Connector | Front USB 2.0 x 1 Connector |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 2x120mm |
| Dimensions (WxHxD) | 19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm |
