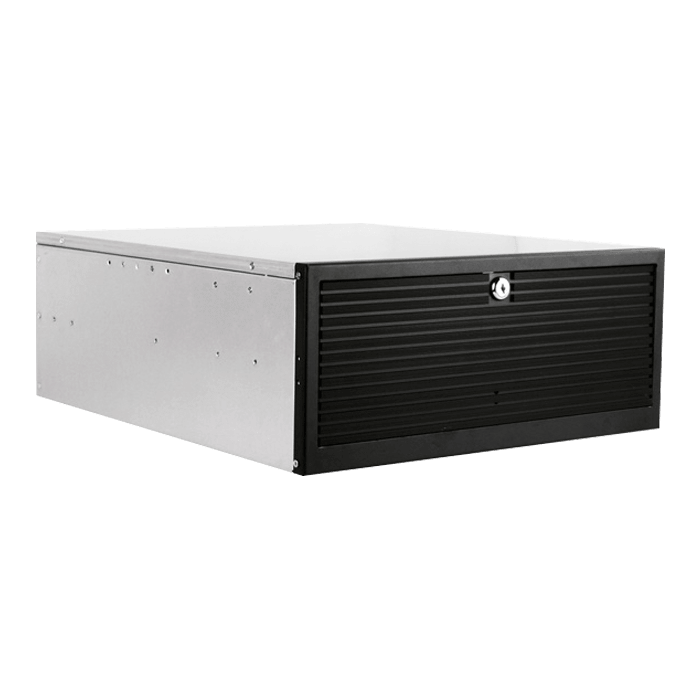

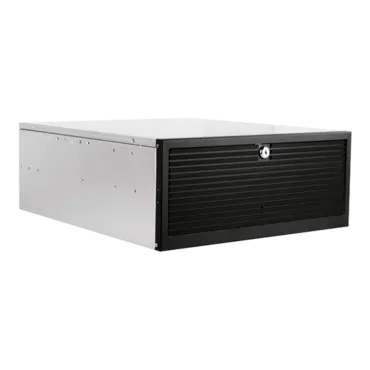

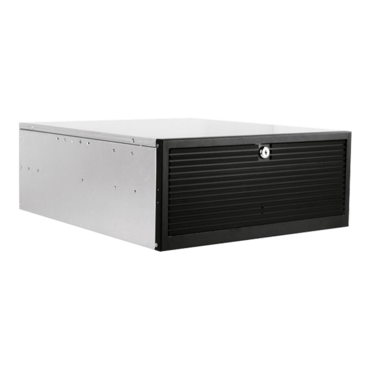

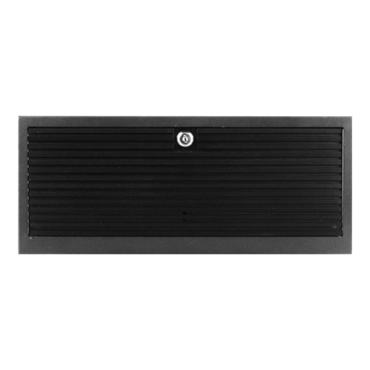

D-416-DT, Black Bezel, 6x 5.25", 2x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis
Quantity:
- SKU: 4167416
- Manufacturer: ISTARUSA
- MPN: D-416-DT
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$128.79
As low as $10.73/ Month*
D-416-DT, Black Bezel, 6x 5.25", 2x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis

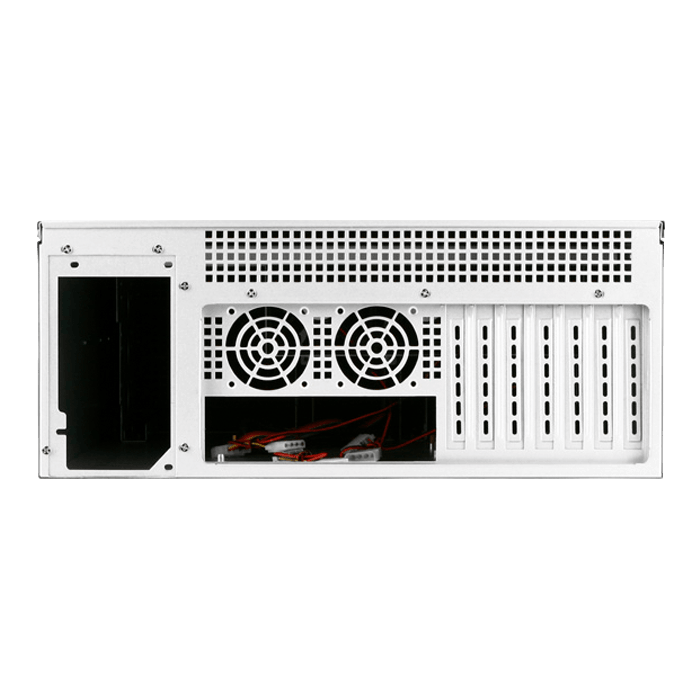

D-416-DT is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DT supports a standard ATX PS2 power supply to meet regular server system applications.
D-416-DT is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DT supports a standard ATX PS2 power supply to meet regular server system applications.
D-416-DT 4U Compact Stylish Server/Desktop Chassis

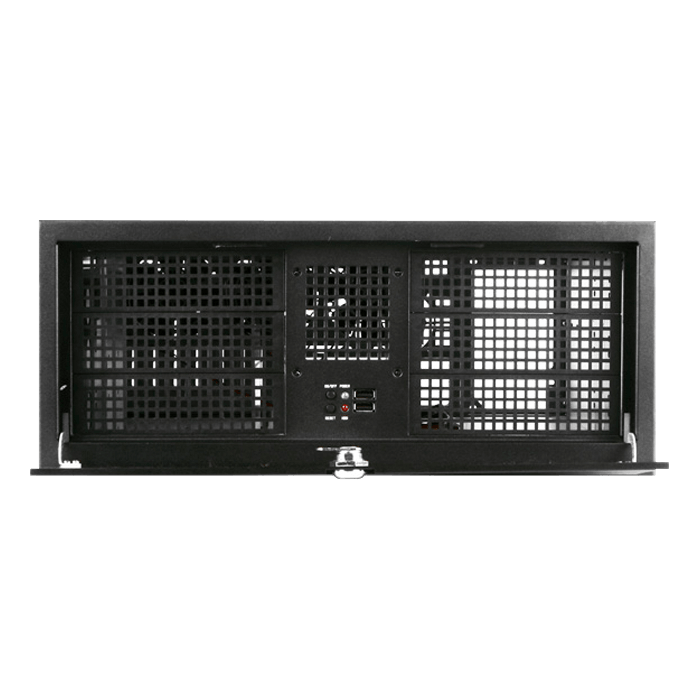

- Supports front access USB ports
- Supports standard ATX power supplies
- Compatible with redundant power supplies
- Fits extended-ATX motherboards for high peroformance configurations
- The most economic solution for 4U chassis with 6 x 5.25" bays
| Model Number | D-416-DT |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drive (internal): 2
5.25" Drives: 6 |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | PS2 |
| Expansion Slots | 7 |

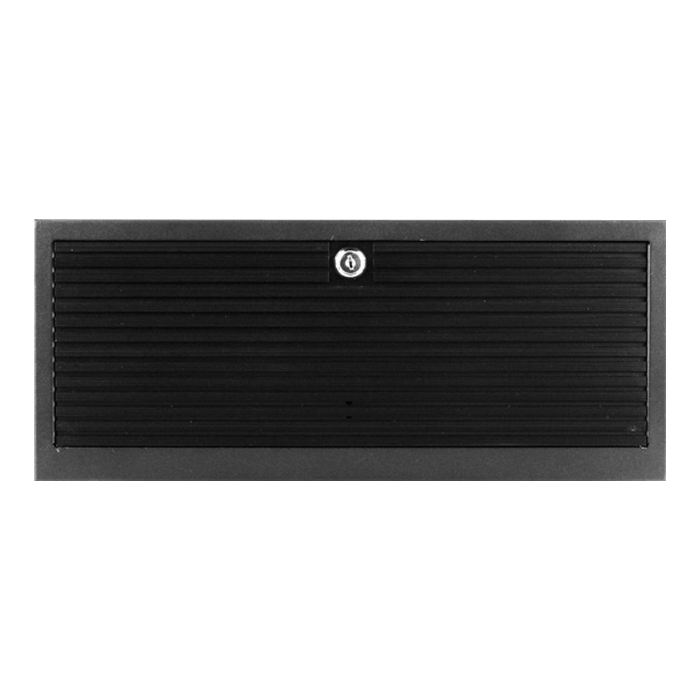

| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Galvanized Steel |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Optional Fan: | 80mm x2, 60mm x2 |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.47"
482.6 mm x 177.8 mm x 519.9 mm |
| Notes | - the two internal 3.5" bays at the bottom of drive cage cannot be used when an EATX motherboard is in place. |
