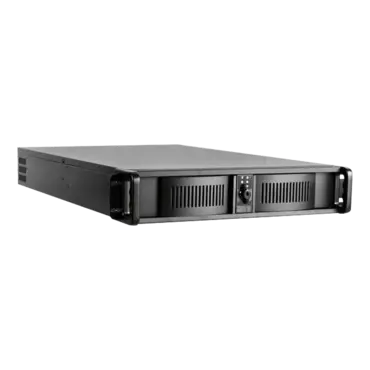

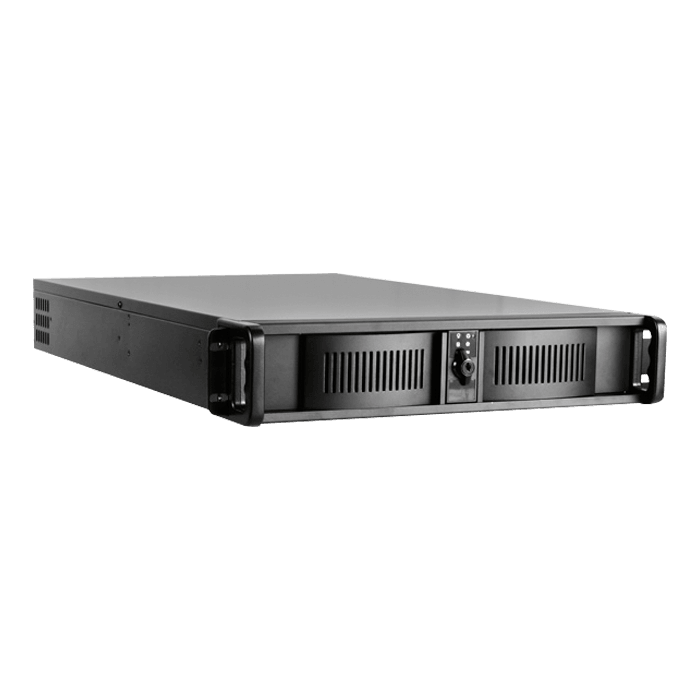

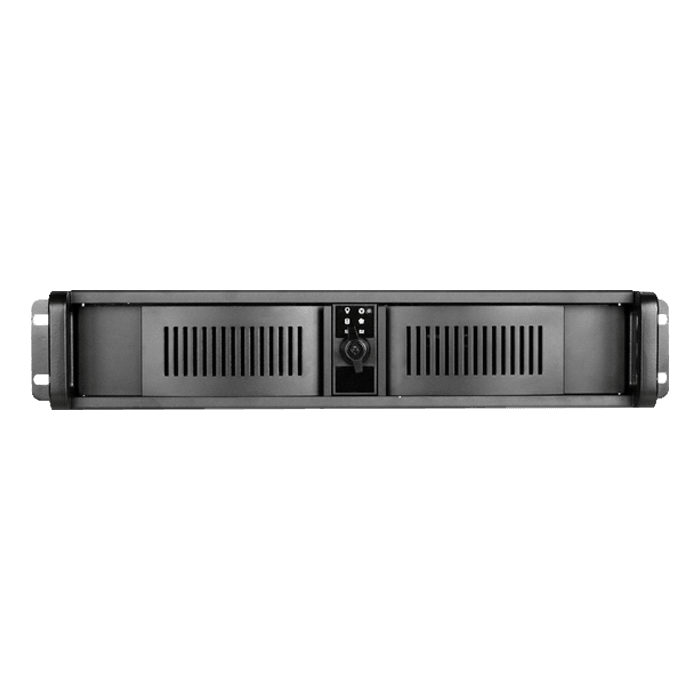

Model Number | D-200 (D-200-35) |
RoHS Compliance | Yes |
Form factor | 2 U |
Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | 2U |
Expansion Slots | 3 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Air Filter | Removable & Washable |
Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
Cooling Fan | 1x80mm |
Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
Dimensions (WxHxD) | 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm |
Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. - ECCN Code: EAR99 |
