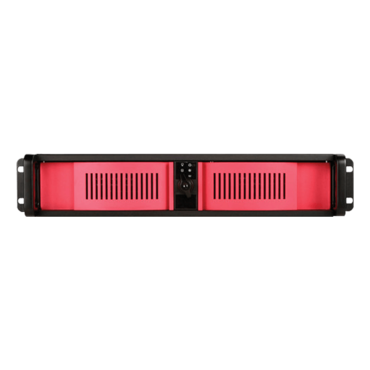

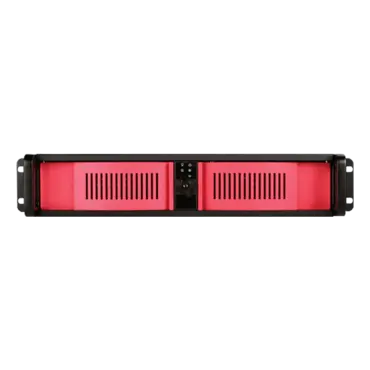

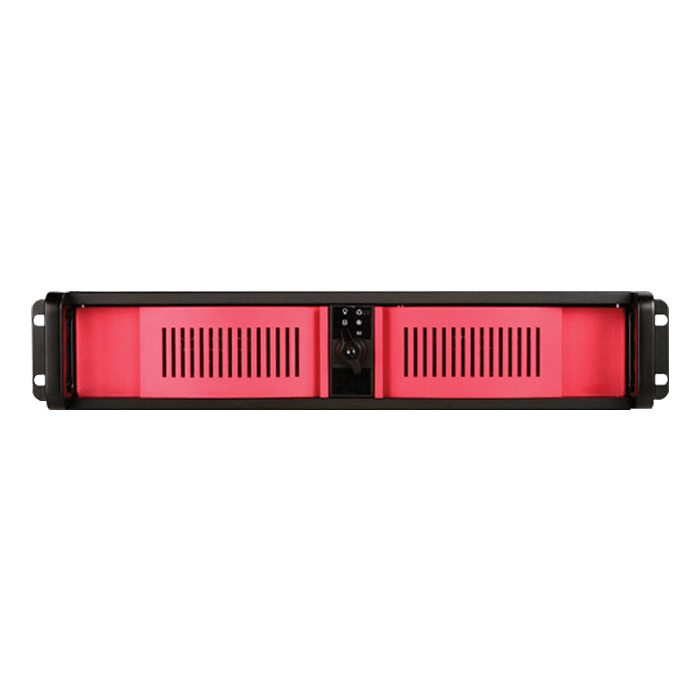

D Storm D-200-RED, Red Bezel, 2x 5.25", 2x 3.5" Drive Bays, No PSU, ATX, Black/Red, 2U Chassis
Quantity:
- SKU: 7236549
- Manufacturer: ISTARUSA
- MPN: D-200-RED
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$203.55
D Storm D-200-RED, Red Bezel, 2x 5.25", 2x 3.5" Drive Bays, No PSU, ATX, Black/Red, 2U Chassis

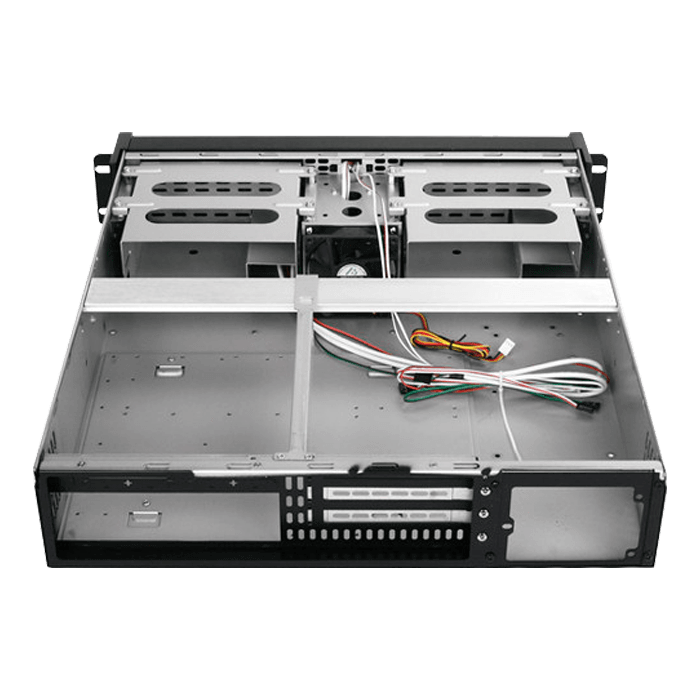

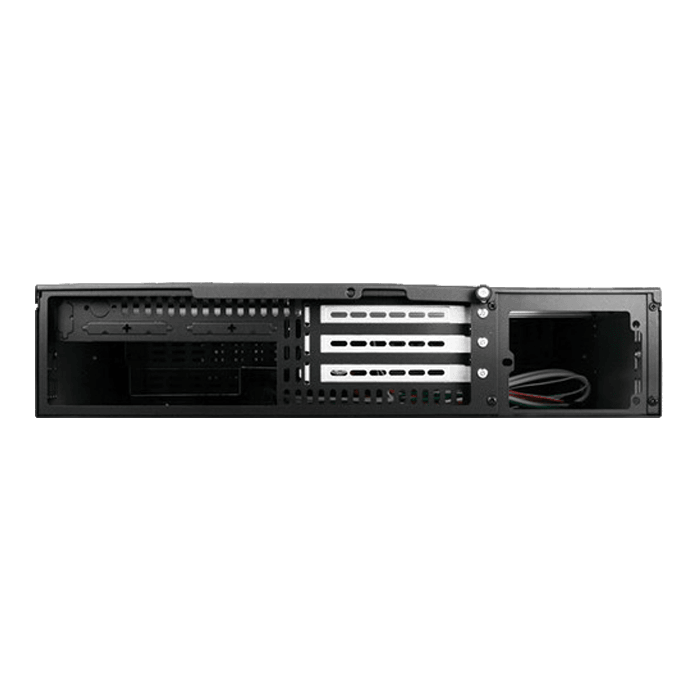

The 2U compact industrial rackmount chassis D Storm D-200-RED. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
D-200-RED 2U Compact Stylish Rackmount Chassis
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 cooling fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- I/O shield
- Optional Aluminum Chassis
| Model Number | D-200-RED |
| RoHS Compliance | Yes |
| Form factor | 2 U |
| Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 2U |
| Expansion Slots | 3 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Red |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
| Cooling Fan | 1x80mm |
| Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
| Ordering Information
(Part Number) |
Black Bezel:D-200
Blue Bezel:D-200-BLUE Red Bezel:D-200-RED Silver Bezel:D-200-SILVER |
| Dimensions (WxHxD) | 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm |
| Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. - ECCN Code: EAR99 |
