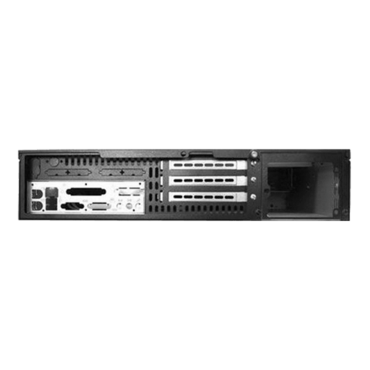

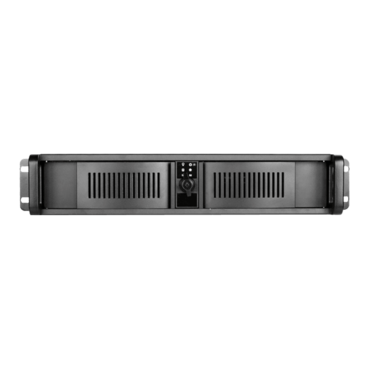

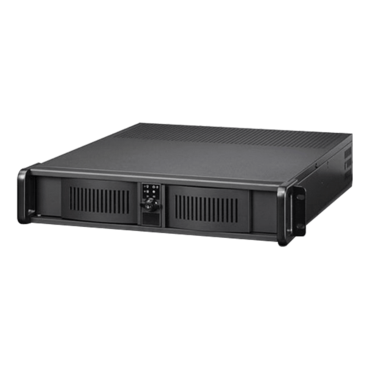

D Storm D-200L-T, 1x Slim 5.25", 2x 5.25", 1x 3.5" Drive Bays, No PSU, E-ATX, Black, 2U Chassis

  • SKU: 7235680
  • Manufacturer: ISTARUSA
  • MPN: D-200L-T
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

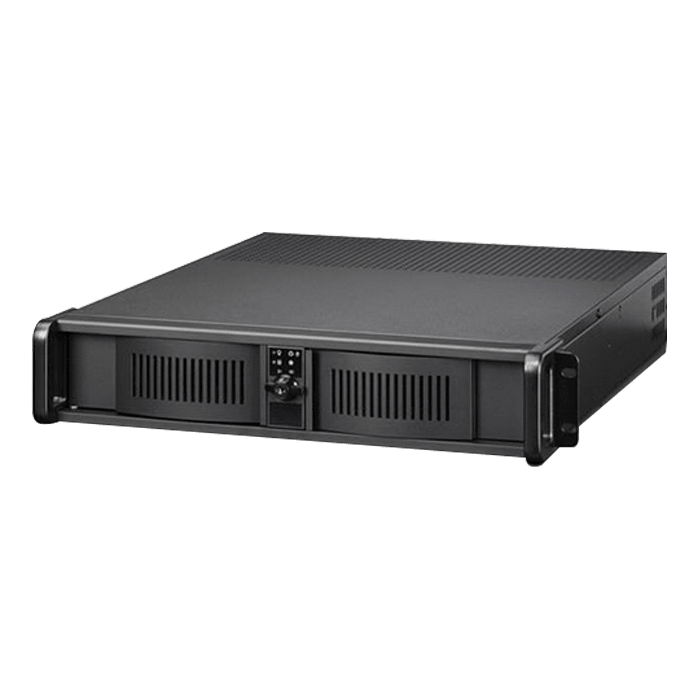

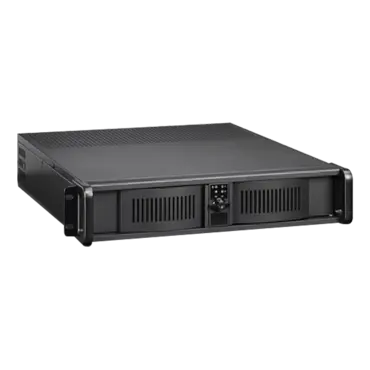

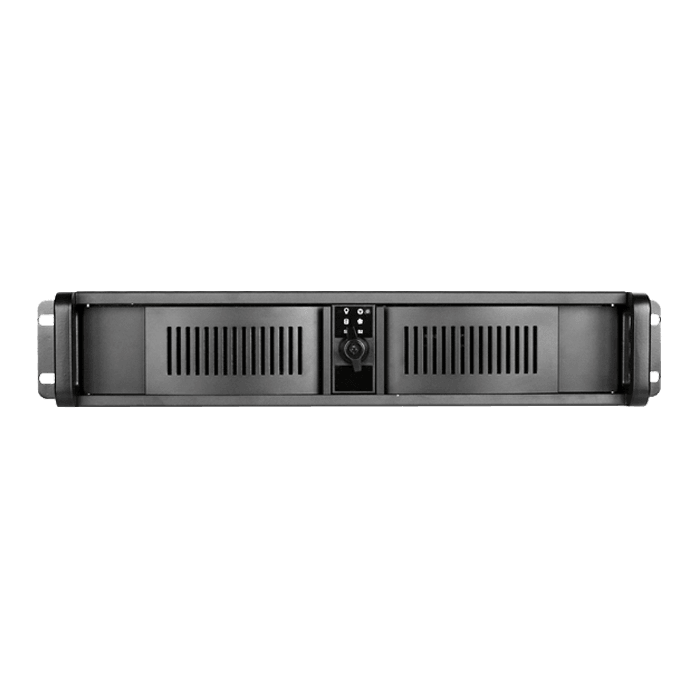

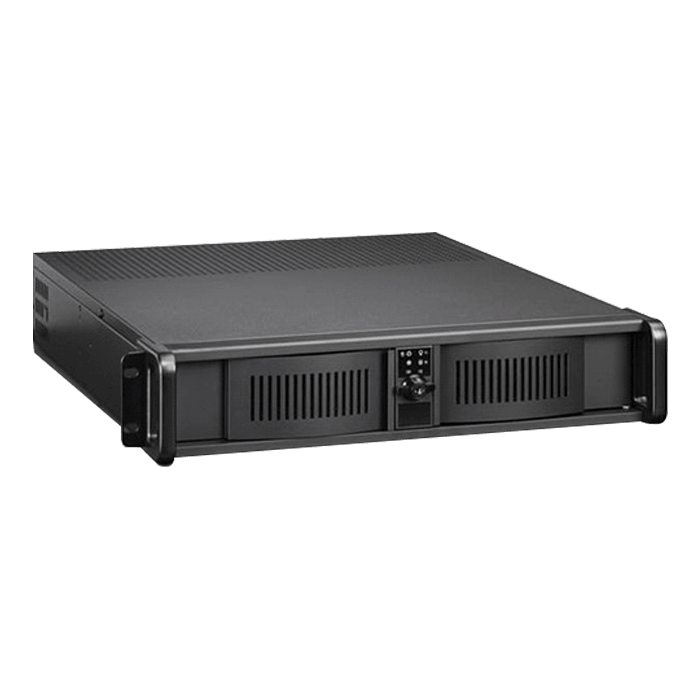

D-200L-T 2U High Performance Rackmount Chassis

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 80mm x3 cooling fan
  • Support Extend-ATX Motherboard
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
Model Number D-200L-T
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 3.5" Drives: 1
5.25" Drives: 2
Slim 5.25" Optical: 1
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 2U
Expansion Slots 3
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 13 (EATX, ATX, microATX)
Cooling Fan 3x80mm
Ordering Information
(Part Number)
Black Bezel:D-200L-T
Blue Bezel:D-200L-T-BLUE
Red Bezel:D-200L-T-RED
Silver Bezel:D-200L-T-SILVER
Dimensions (WxHxD) 19.00" x 3.50" x 27.90"
482.6 mm x 88.9 mm x 708.7 mm
Notes - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR.
