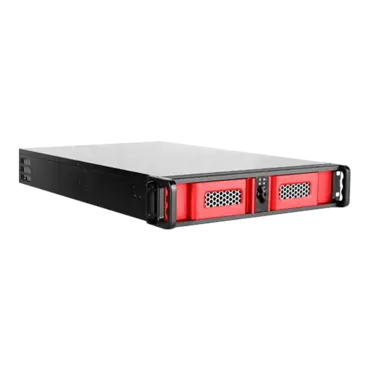

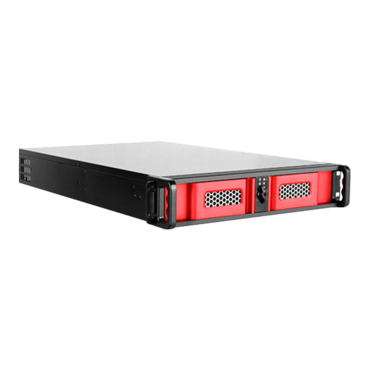

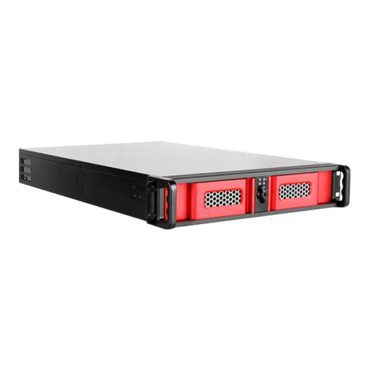

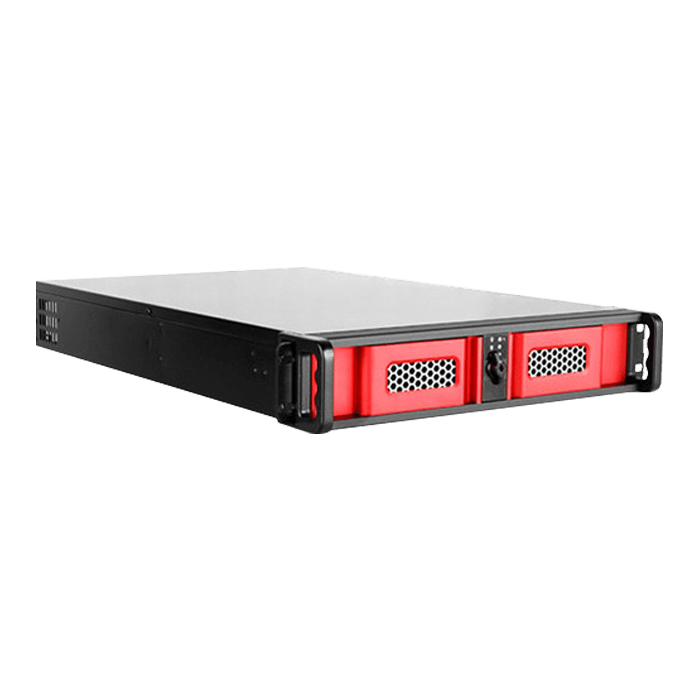

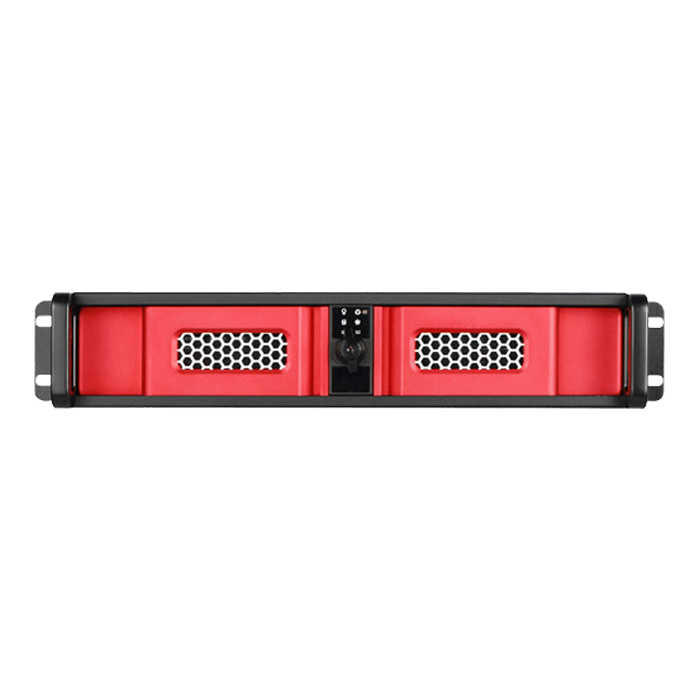

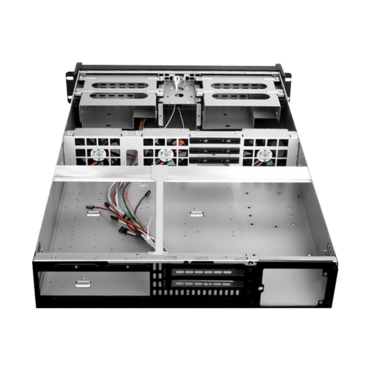

D Storm D-200LSE-RD, Red Bezel, 2x 5.25", 2x 3.5" Drive Bays, No PSU, E-ATX, Black/Red, 2U Chassis
Quantity:
- SKU: 7240119
- Manufacturer: ISTARUSA
- MPN: D-200LSE-RD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$278.29
| Model Number | D-200LSE |
| RoHS Compliance | Yes |
| Form factor | 2 U |
| Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 2U |
| Expansion Slots | 3 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Blue |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 3x80mm |
| Ordering Information
(Part Number) |
Blue Bezel:D-200LSE
Black Bezel:D-200LSE-BK Red Bezel:D-200LSE-RD Silver Bezel:D-200LSE-SL |
| Dimensions (WxHxD) | 19.00" x 3.50" x 27.90"
482.6 mm x 88.9 mm x 708.7 mm |
| Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
