D Storm D-200SEA-BK-RAIL24, Black Bezel, 2x 5.25", 2x 3.5" Drive Bays, w/ 20" Sliding Rail Kit, No PSU, ATX, Black, 2U Chassis

Quantity:
  • SKU: 13192841
  • Manufacturer: ISTARUSA
  • MPN: D-200SEA-BK-RAIL24
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$195.50
As low as $6.31/ Month*
Quantity:
D Storm D-200SEA-BK-RAIL24, Black Bezel, 2x 5.25", 2x 3.5" Drive Bays, w/ 20" Sliding Rail Kit, No PSU, ATX, Black, 2U Chassis

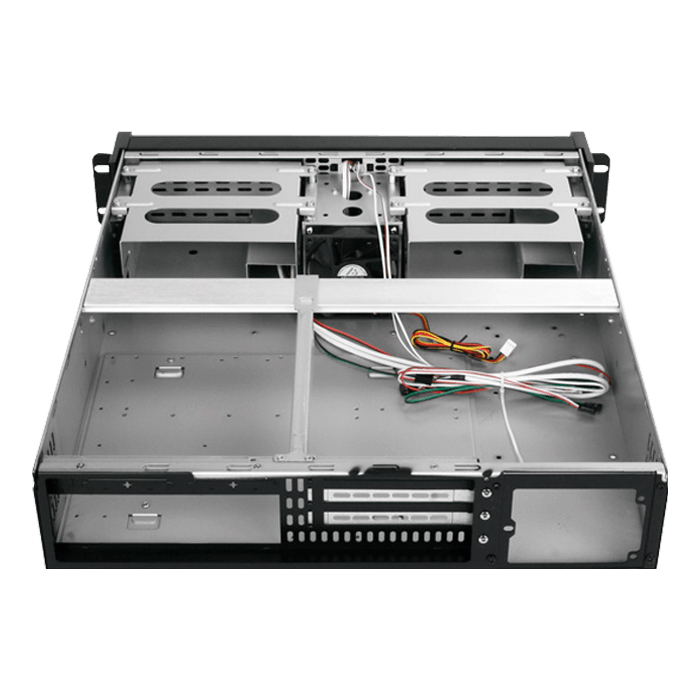

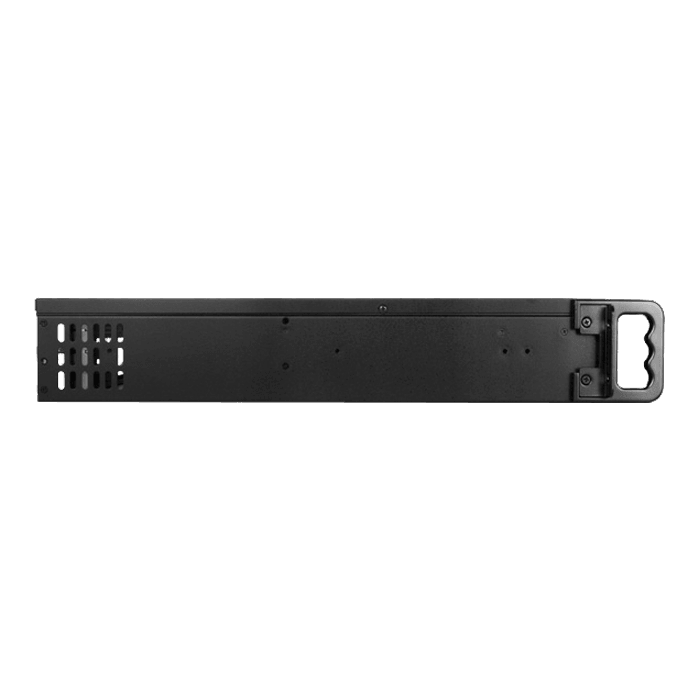

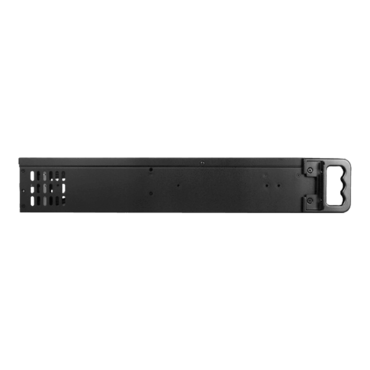

The 2U compact industrial rackmount chassis D Storm D-200SEA-BK-RAIL24. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-BK-RAIL24 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

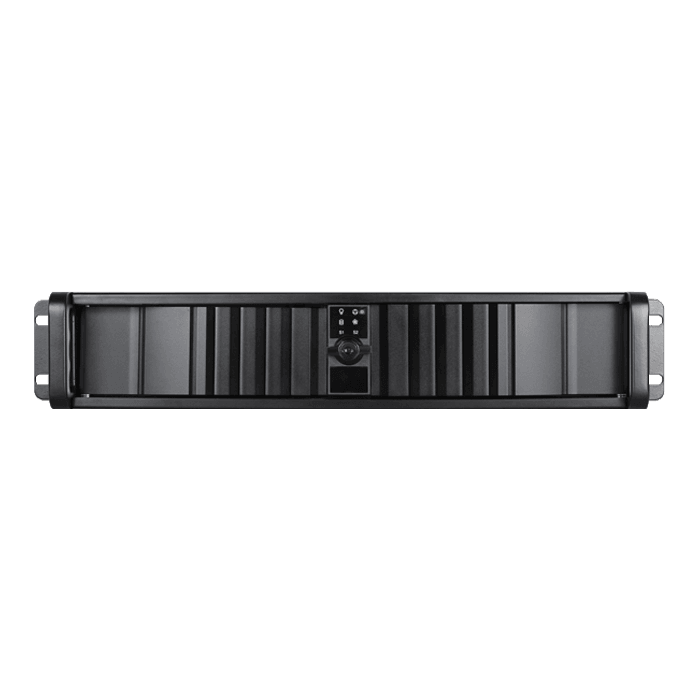

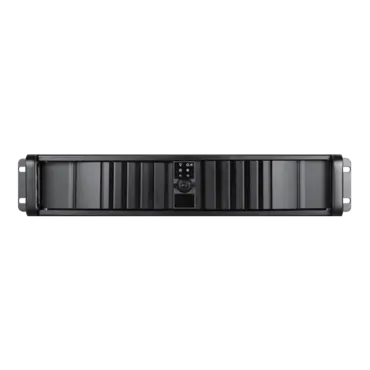

D-200SEA-BK-RAIL24 2U Compact Stylish Rackmount Chassis with black SEA Bezel and 20" Sliding Rail Kit

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 80mm x1 cooling fan
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis

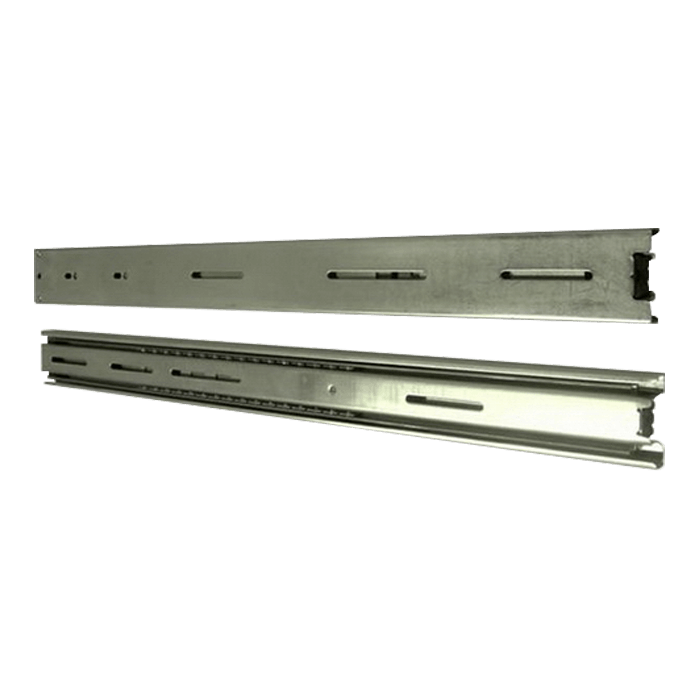

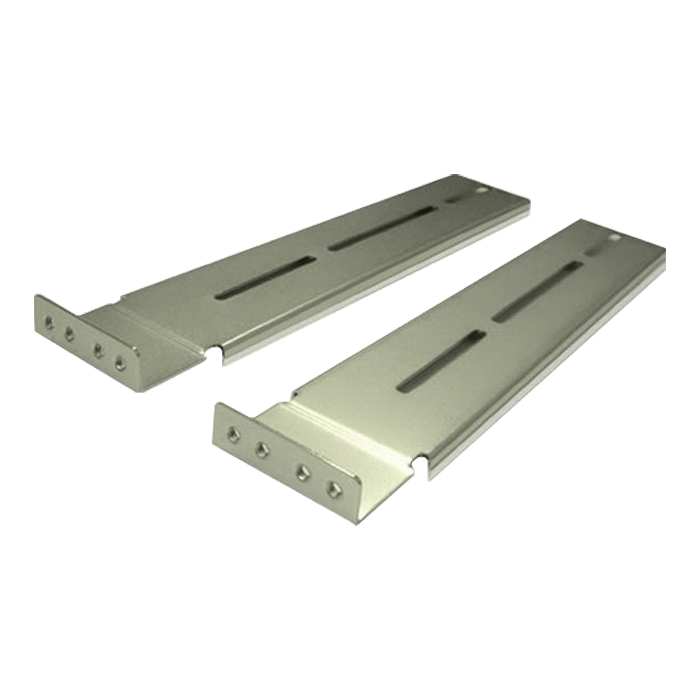

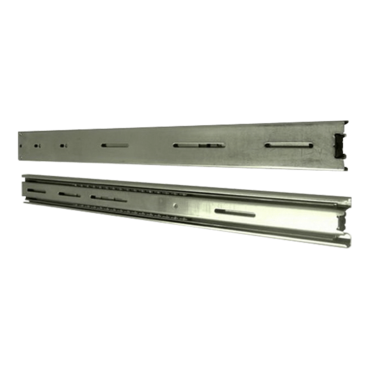

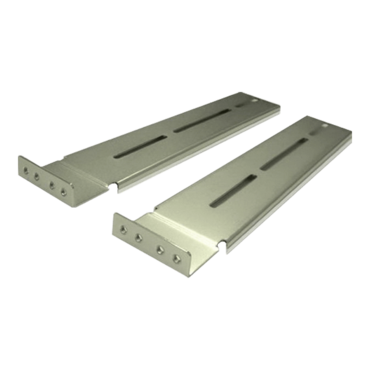

  • With 20" Sliding Rail Kit
Model Number D-200SEA-BK-RAIL24
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 3.5" Drives: 2
5.25" Drives: 2
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 2U
Expansion Slots 3
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan 1x80mm
Optional Fan: 60mm x3 (bracket DD-FANGUARD-6 required)
Dimensions (WxHxD) 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm
Notes - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR.
