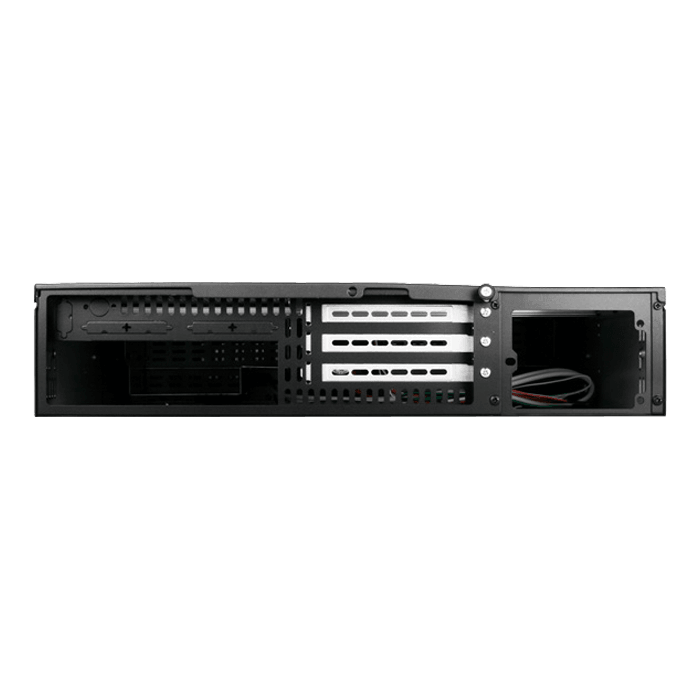

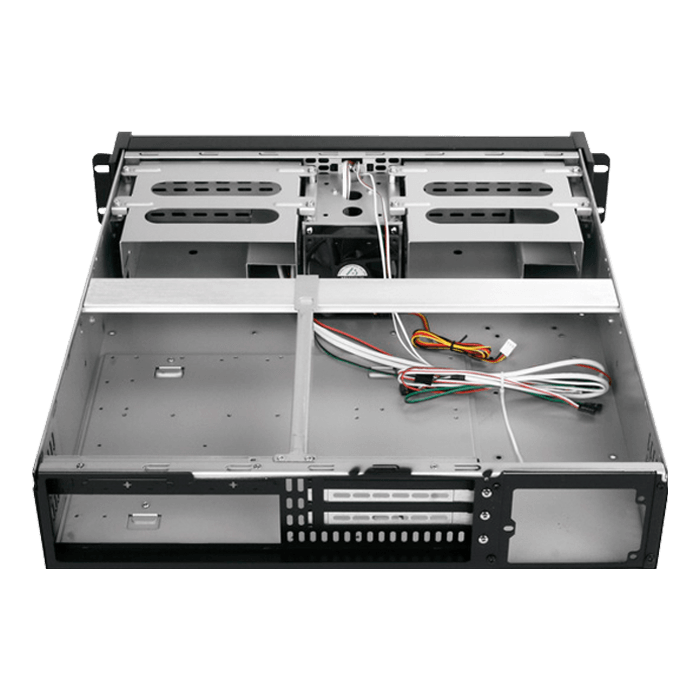

The 2U compact industrial rackmount chassis D Storm D-200SEA-RD-RAIL24 . The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-RD-RAIL24 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

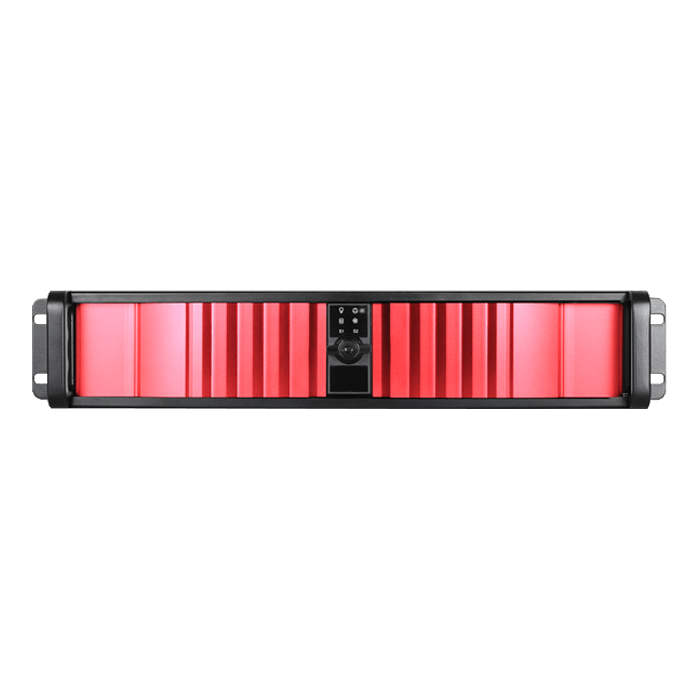

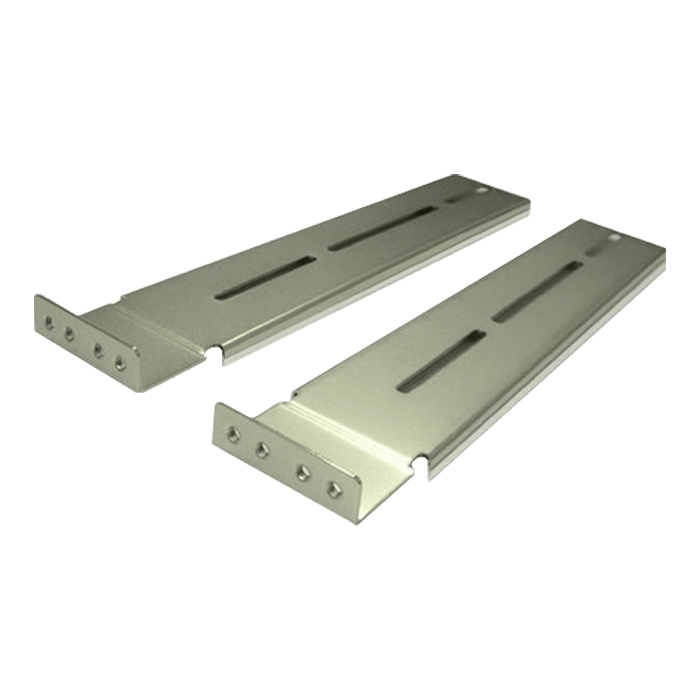

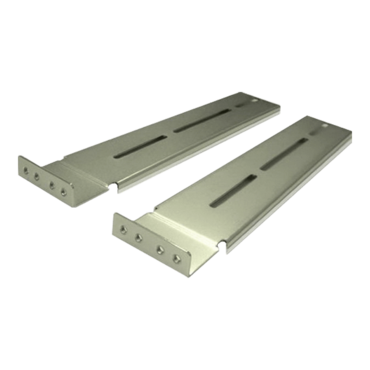

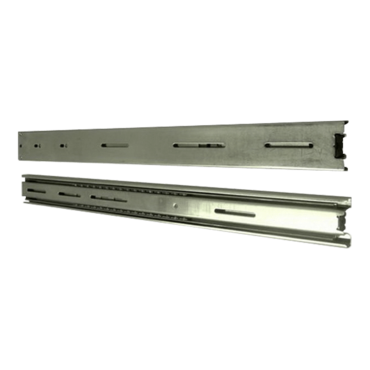

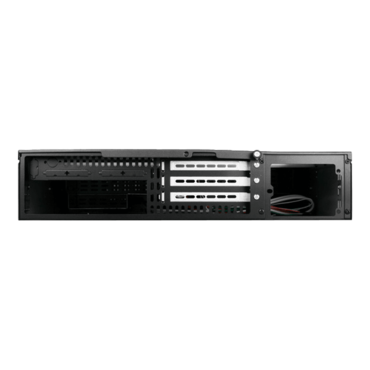

D-200SEA-RD-RAIL24 2U Compact Stylish Rackmount Chassis with red SEA Bezel and 20" Sliding Rail Kit
|Form factor||2 U|
|Standard Drive Bays||3.5" Drives: 2
5.25" Drives: 2
|Indicators||Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )|
|Supported PSU Type||2U|
|Security||Front Bezel Key Lock|
|Material of Front Bezel||Aluminum alloy|
|Material of Handle||SECC Zinc-Coated Steel|
|Material of Main Chassis||1.2mm SECC Zinc-Coated Steel (Japan Made)|
|Color of Front Bezel||Red|
|Color of Main Chassis||Black|
|Front Connector||2x USB 2.0|
|Motherboard Size||12 x 9.6 (ATX, microATX, mini-ITX)|
|Optional Fan:||60mm x3 (bracket DD-FANGUARD-6 required)|
|Dimensions (WxHxD)||19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm
|Notes||- low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR.
