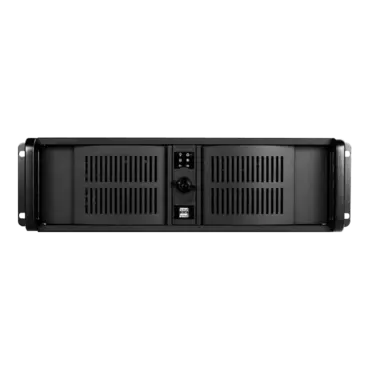

D Storm D-300-FS, Black Bezel, 2x 5.25", 6x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis

  • SKU: 2138623
  • Manufacturer: ISTARUSA
  • MPN: D-300-FS
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At

D-300-FS 3U Compact Stylish Rackmount Chassis Front-mounted ATX Power Supply

  • 3 Way Aluminum Front Panel with Locks
  • Front Access USB2.0 x2
  • 80mm x1, 60mm x1 Cooling Fan
  • Front Mount ATX Power Supply
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis
Model Number D-300-FS
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 5
5.25" Drives: 2
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type PS2 - up to 160mm deep
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 9.6 (ATX, microATX)
Cooling Fan 1x60mm, 1x80mm
Optional Fan: 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Ordering Information
(Part Number)
Black Bezel:D-300-FS
Blue Bezel:D-300-FS-BLUE
Red Bezel:D-300-FS-RED
Silver Bezel:D-300-FS-SILVER
Dimensions (WxHxD) 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes - supports standard ATX power supply length up to 160mm.
