D Storm D-300L-BL-TS669, Blue Bezel, w/ 7" Touch Screen LCD, 2x 5.25", 2x 3.5" Drive Bays, No PSU, E-ATX, Black, 3U Chassis

Quantity:
  • SKU: 7236531
  • Manufacturer: ISTARUSA
  • MPN: D-300L-BL-TS669
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$670.45
Quantity:

D-300L-BL-TS669 3U High Performance Rackmount Chassis with 7" Touch Screen LCD

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 60mm x1, 80mm x3 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch

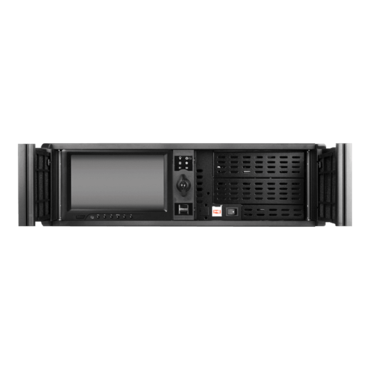

  • Built-in 7" Touch Screen LCD
Model Number D-300L-BL-TS669
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 1
5.25" Drives: 2
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 1U, 2U
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Blue
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 13 (EATX, ATX, microATX)
Cooling Fan 1x60mm, 3x80mm
Optional Fan: 60mm x1
Ordering Information
(Part Number)
Black Bezel:D-300L-BK-TS669
Blue Bezel:D-300L-BL-TS669
Red Bezel:D-300L-RD-TS669
Silver Bezel:D-300L-SL-TS669
Dimensions (WxHxD) 19.00" x 5.25" x 27.90"
482.6 mm x 133.3 mm x 708.7 mm
