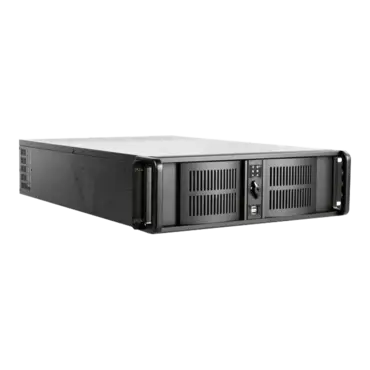

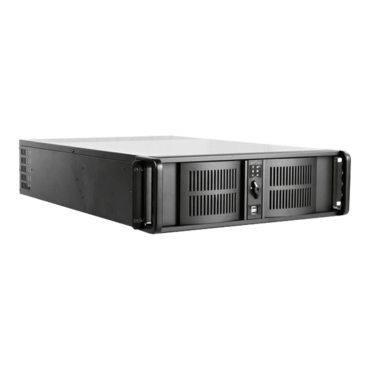

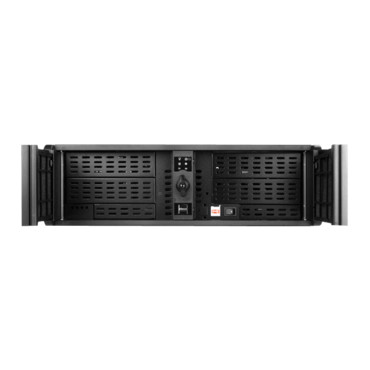

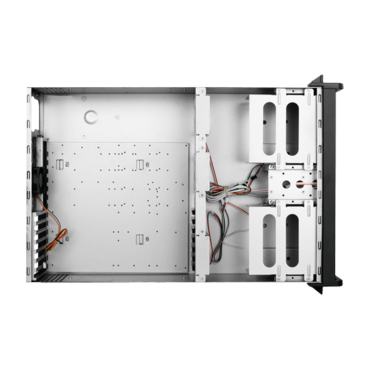

D Storm D-300L, Black Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, E-ATX, 3U Chassis
Quantity:
- SKU: 2138625
- Manufacturer: ISTARUSA
- MPN: D-300L
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$293.24

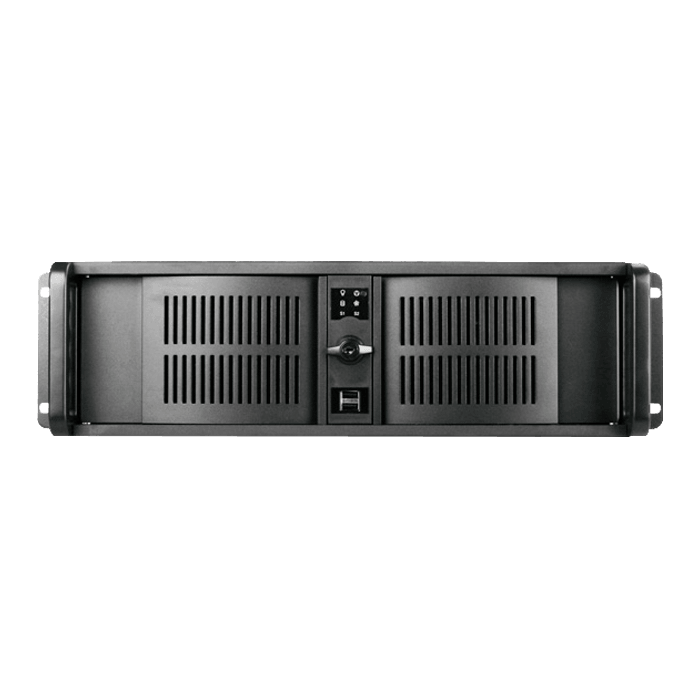

- Patented Aluminum Front Panel with Locks
- Front Access USB2.0 x2
- 60mm x1, 80mm x3 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
| Model Number | D-300L |
| RoHS Compliance Version | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 1 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 1U, 2U |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 1x60mm, 3x80mm |
| Optional Fan: | 60mm x1 |
| Ordering Information
(Part Number) |
Black Bezel:D-300L
Blue Bezel:D-300L-BLUE Red Bezel:D-300L-RED Silver Bezel:D-300L-SILVER |
| Dimensions (WxHxD) | 19.00" x 5.25" x 27.90"
482.6 mm x 133.3 mm x 708.7 mm |
