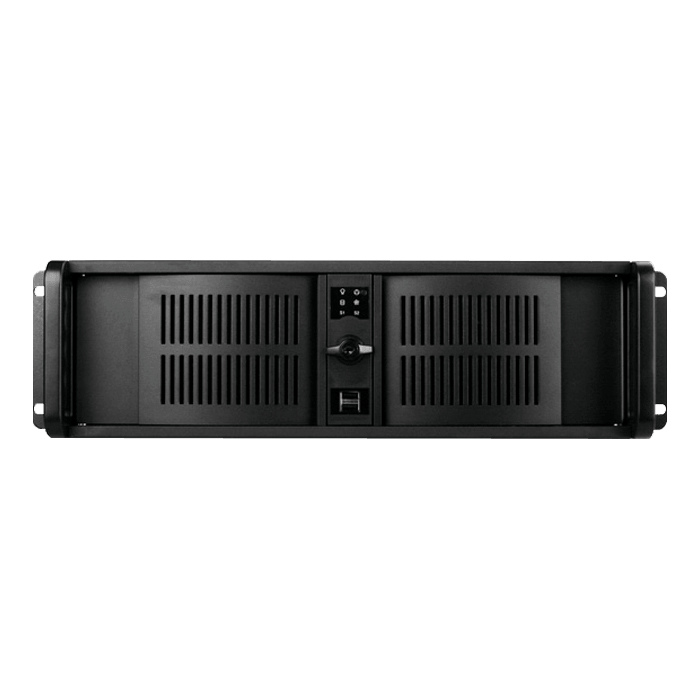

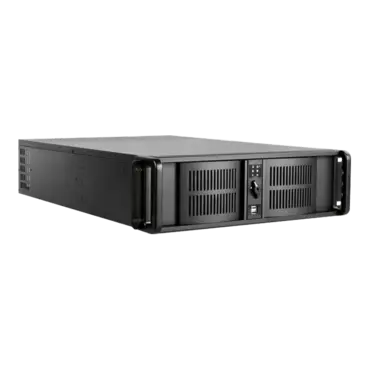

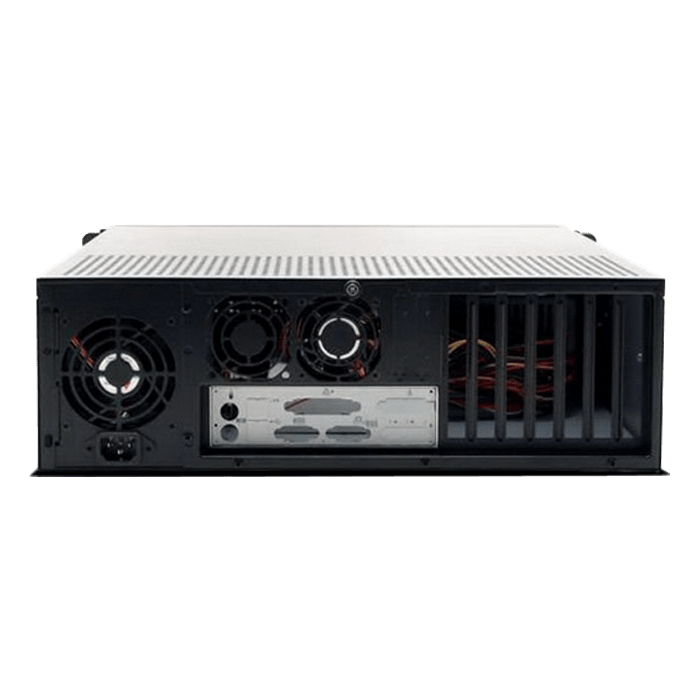

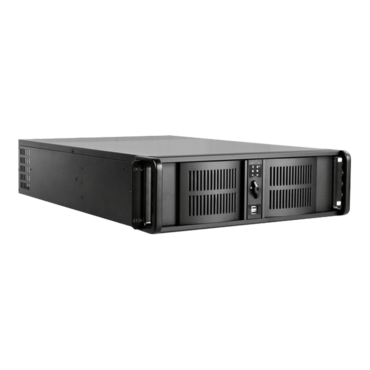

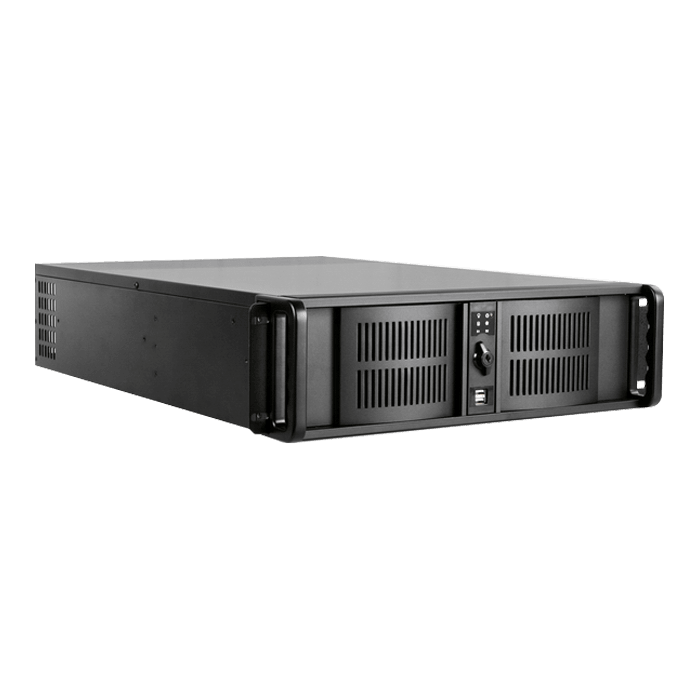

D Storm D-300L-FS, Black Bezel, 2x 5.25", 5x 3.5" Drive Bays, No PSU, E-ATX, Black, 3U Chassis

Quantity:
  • SKU: 9483582
  • Manufacturer: ISTARUSA
  • MPN: D-300L-FS
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$301.29
Quantity:
D Storm D-300L-FS, Black Bezel, 2x 5.25", 5x 3.5" Drive Bays, No PSU, E-ATX, Black, 3U Chassis

The D-300L-FS incorporate performance and capacity in a 3U form factor. It features two 5.25 and six 3.5 bays for high density storage application. Whether it's web server, database server, D-300L-FS can accommodate the thermal requirements of dual processor and Raid drive storage needs. The 7 PCI slots support PCI, PCI 64bits, AGP, and PCI-Express add-on cards which enable future upgrades for customized functions and application needs. D-300L-FS is a cost effective chassis for data and storage server.

D-300L-FS 3U High Performance Rackmount Chassis Front-mounted ATX Power Supply

  • 3 Way Aluminum Front Panel with Locks
  • Front Access USB2.0 x2
  • 80mm x4 Cooling Fan
  • Front Mount ATX Power Supply
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
Model Number D-300L-FS
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 5
5.25" Drives: 2
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type PS2
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 13 (EATX, ATX, microATX)
Cooling Fan 1x60mm, 4x80mm
Optional Fan: 60mm x1
Ordering Information
(Part Number)
Black Bezel:D-300L-FS
Blue Bezel:D-300L-FS-BLUE
Red Bezel:D-300L-FS-RED
Silver Bezel:D-300L-FS-SILVER
Dimensions (WxHxD) 19.00" x 5.25" x 27.90"
482.6 mm x 133.3 mm x 708.7 mm
