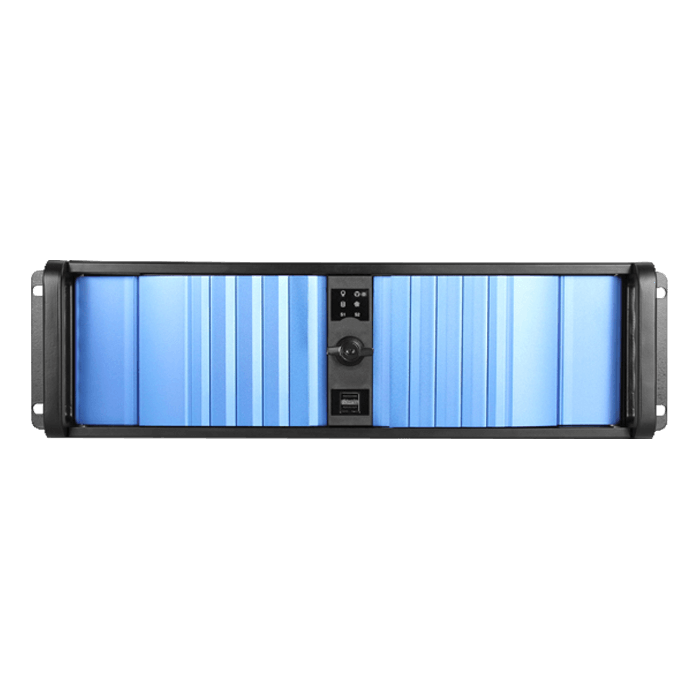

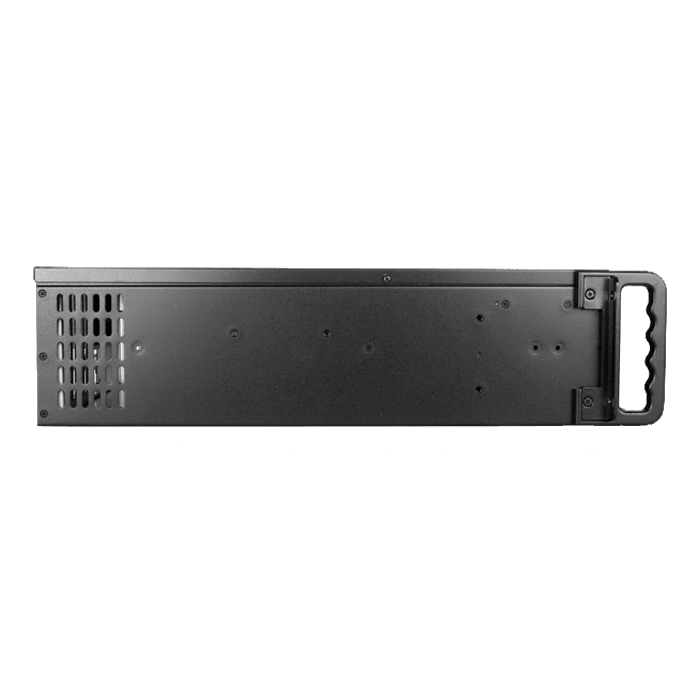

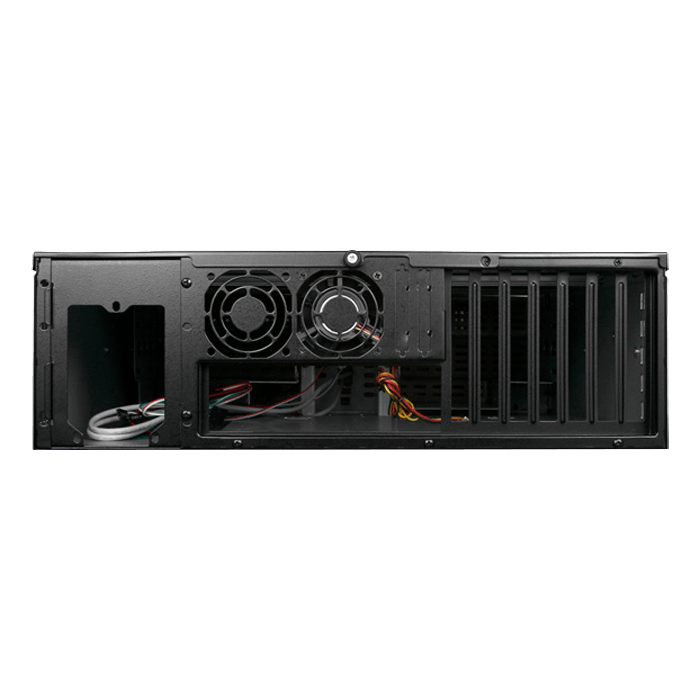

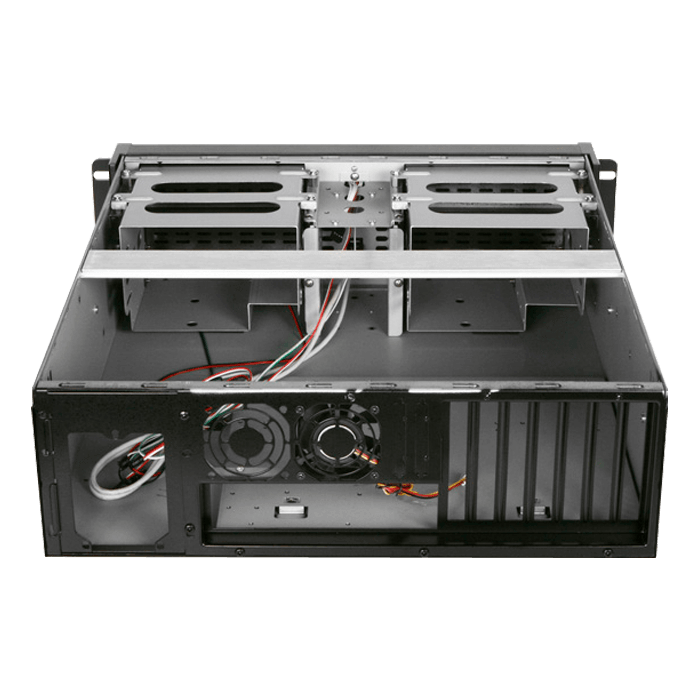

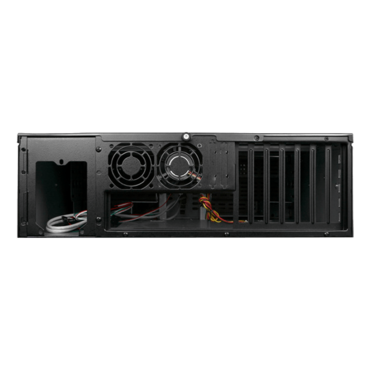

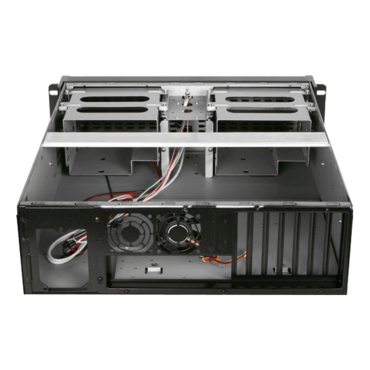

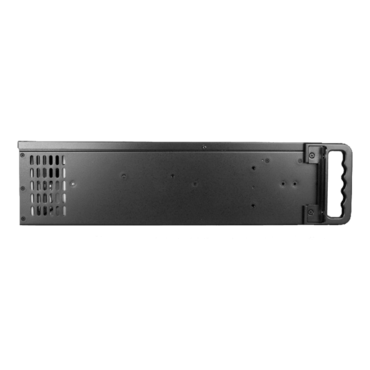

D Storm D-300SEA-BL-HDD2535, Blue Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis

SKU: 13192817

Manufacturer: ISTARUSA

MPN: D-300SEA-BL-HDD2535

Availability: Unknown


Price: $208.15
or as low as $7/month
Quantity:

The 3U industrial rackmount chassis D Storm D-300SEA-BL-HDD2535SI. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-BL-HDD2535SI backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with internal 2.5" to 3.5" HDD/SSD Converter.

Model Number D-300SEA-BL-HDD2535
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 1
5.25" Drives: 4
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 1U, 2U
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Blue
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 9.6 (ATX, microATX)
Cooling Fan 1x60mm
Optional Fan: 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Dimensions (WxHxD) 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes - supports power supply length up to 250mm when hotswap cages installed in the front.
