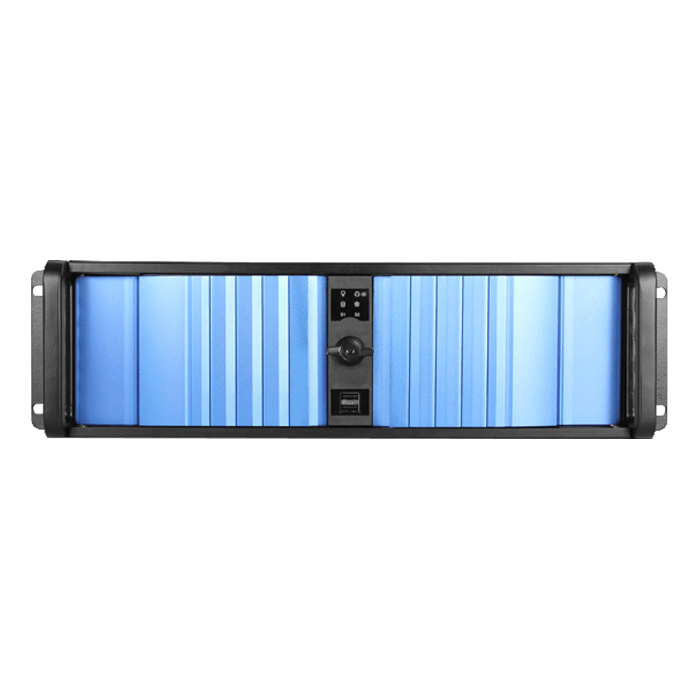

D Storm D-300SEA-BL-T7SA, Blue Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis

SKU: 13192826

Manufacturer: ISTARUSA

MPN: D-300SEA-BL-T7SA

Availability: Unknown


Price: $219.65
or as low as $7/month
Quantity:

The 3U industrial rackmount chassis D Storm D-300SEA-BL-T7SA. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-BL-T7SA backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack.

D-300SEA-BL-T7SA 3U Compact Stylish Rackmount Chassis with blue SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 60mm x1 Cooling Fan
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis

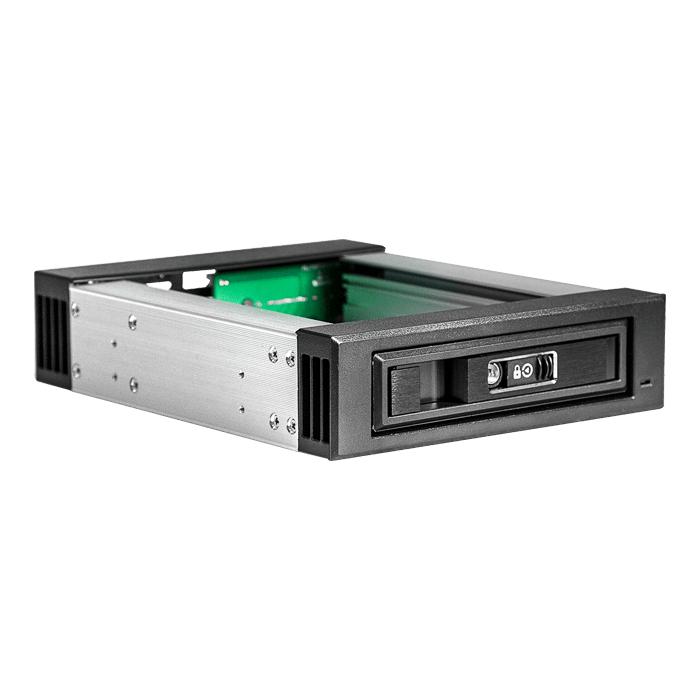

  • with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
Model Number D-300SEA-BL-T7SA
RoHS Compliance Yes
Form factor 3 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 1
5.25" Drives: 4
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 1U, 2U
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Blue
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 9.6 (ATX, microATX)
Cooling Fan 1x60mm
Optional Fan: 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Dimensions (WxHxD) 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes - supports power supply length up to 250mm when hotswap cages installed in the front.
