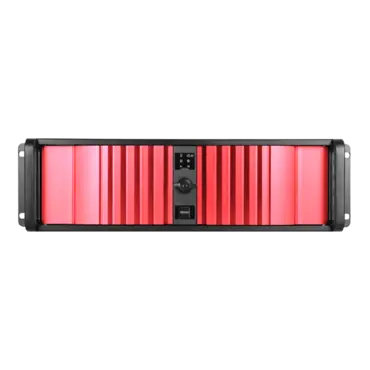

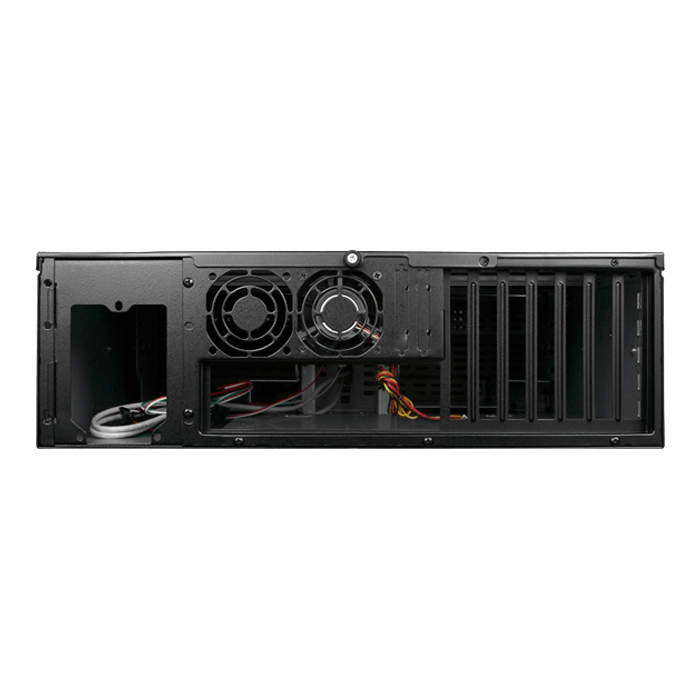

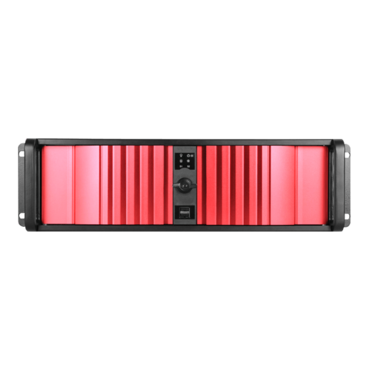

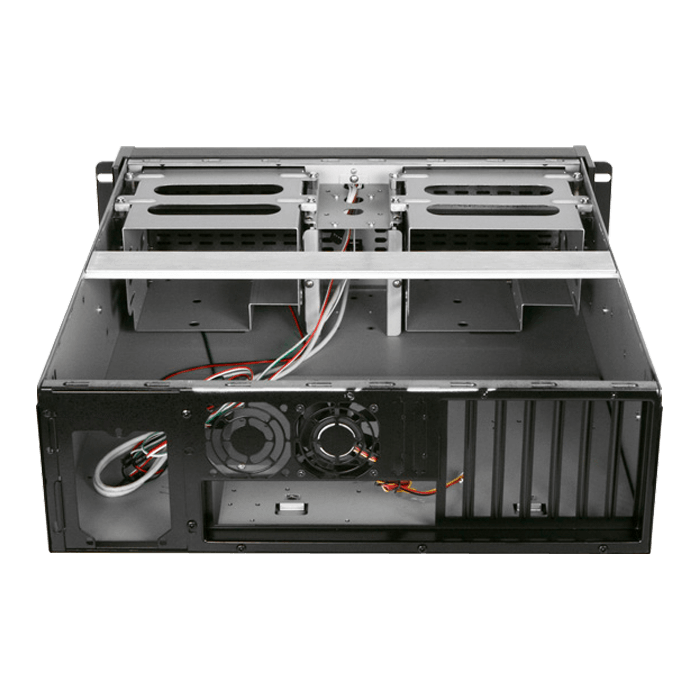

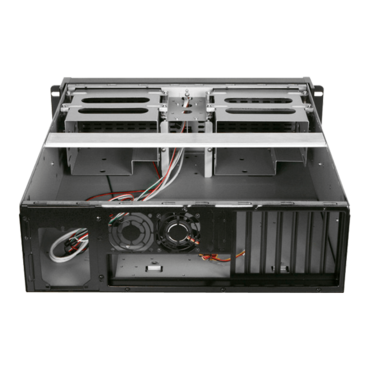

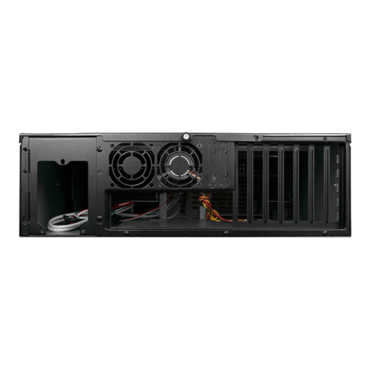

D-300SEA-RD 3U Compact Stylish Rackmount Chassis with SEA Bezel
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 60mm x1 Cooling Fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
Model Number | D-300SEA |
RoHS Compliance | Yes |
Form factor | 3 U |
Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 1 5.25" Drives: 4 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | 1U, 2U |
Expansion Slots | 7 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Blue |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 1x60mm |
Optional Fan: | 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required) |
Ordering Information
(Part Number) |
Blue Bezel:D-300SEA
Black Bezel:D-300SEA-BK Red Bezel:D-300SEA-RD Silver Bezel:D-300SEA-SL |
Dimensions (WxHxD) | 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm |
Notes | - supports power supply length up to 250mm when hotswap cages installed in the front. |
