D Storm D-300SEA-SL-T7SA, Silver Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis
- SKU: 13192849
- Manufacturer: ISTARUSA
- MPN: D-300SEA-SL-T7SA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$303.59
D Storm D-300SEA-SL-T7SA, Silver Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis

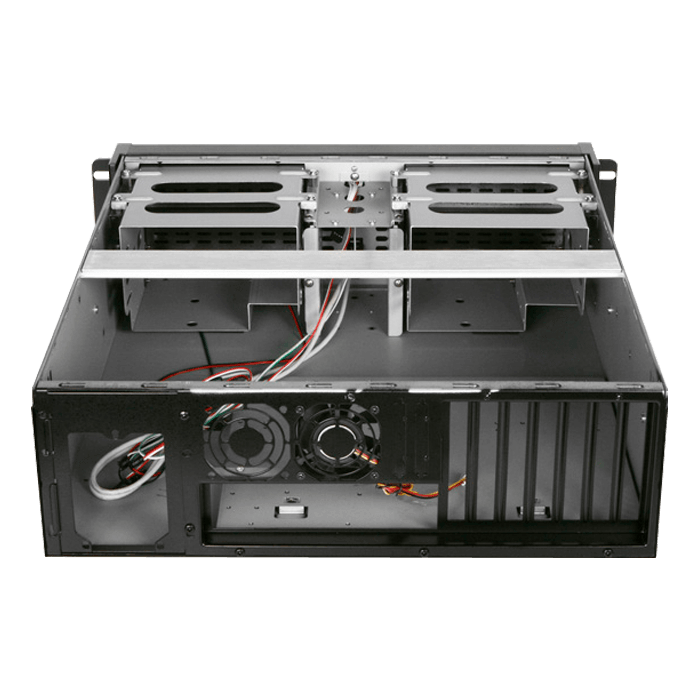

The 3U industrial rackmount chassis D Storm D-300SEA-SL-T7SA. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-SL-T7SA backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack.
The 3U industrial rackmount chassis D Storm D-300SEA-SL-T7SA. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-SL-T7SA backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack.

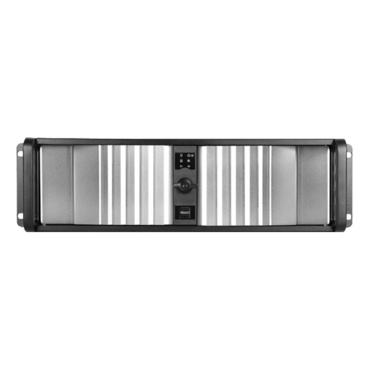

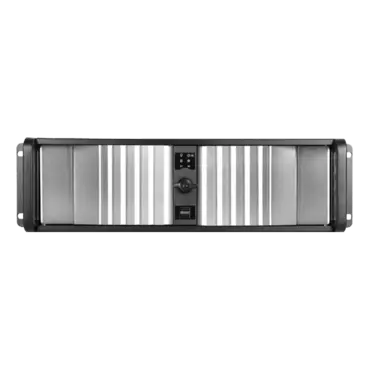

D-300SEA-SL-T7SA 3U Compact Stylish Rackmount Chassis with silver SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 60mm x1 Cooling Fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis

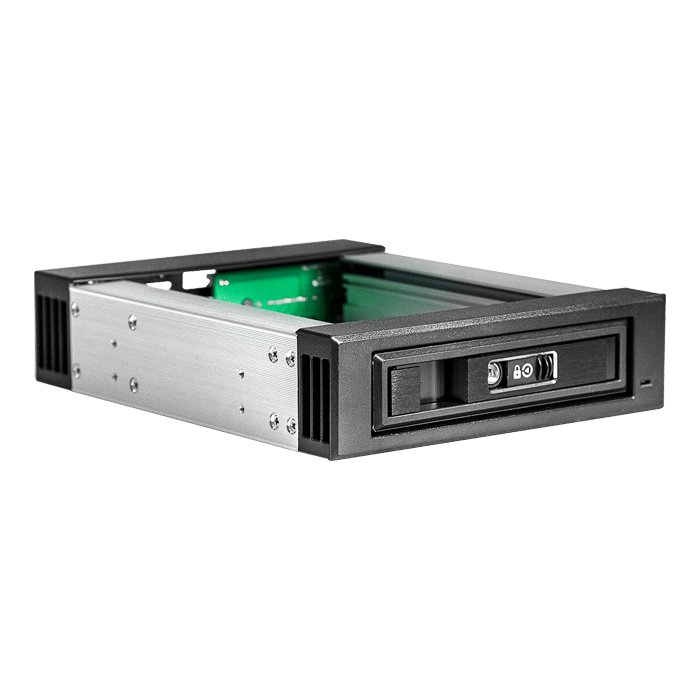

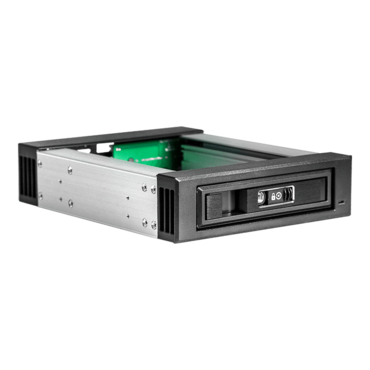

- with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
| Model Number | D-300SEA-SL-T7SA |
| RoHS Compliance | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 1 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 1U, 2U |

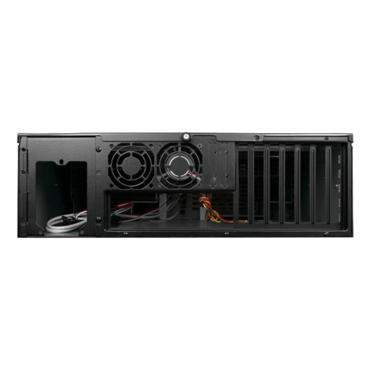

| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Silver |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x60mm |
| Optional Fan: | 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required) |
| Dimensions (WxHxD) | 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm |
| Notes | - supports power supply length up to 250mm when hotswap cages installed in the front. |
