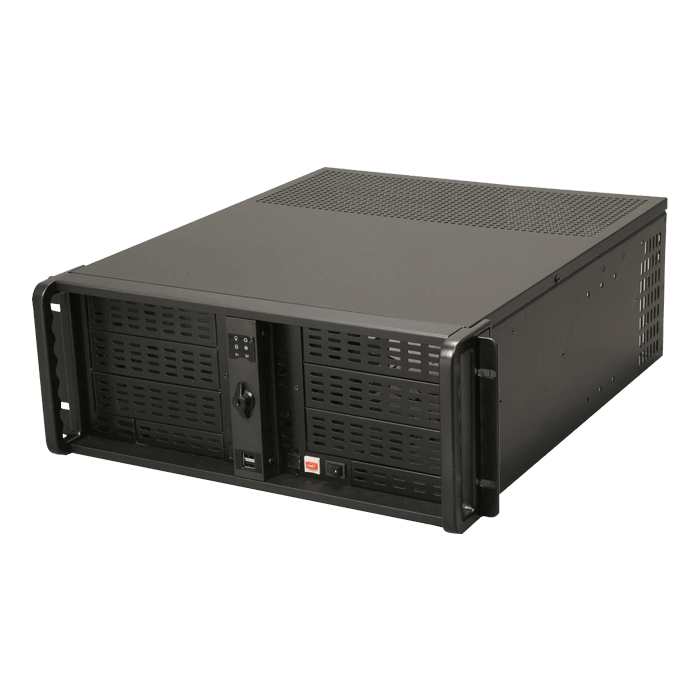

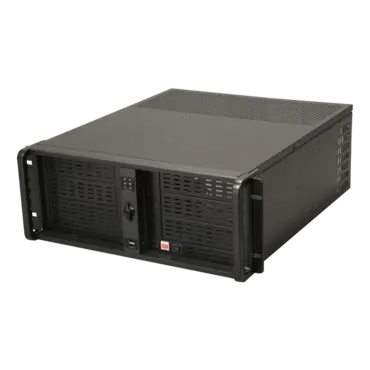

D Storm D-400-6-ND, 6x 5.25", 4x 3.5", ATX, Black, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-400-6. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for 1/0/5 raid configuration. D-400-6 provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
Technical Information
- Motherboard Supported: ATX, Micro ATX
- Number of Fans Supported: 2
- Number of Fans Installed: 1
Bays
- Number of External 5.25" Bays: 6
- Number of External 3.5" Bays: 2
- Number of Internal 3.5" Bays: 2
- Number of Total Expansion Bays: 10
I/O Expansions
- Number of Total Expansion Slots: 7
Interfaces/Ports
- Total Number of USB Ports: 2
Physical Characteristics
- Color: Black
- Material: Zinc-coated Steel
- Compatible Rack Unit: 4U
- Form Factor: Rack-mountable
- Height: 7"
- Width: 19"
- Depth: 20.8"
Miscellaneous
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Brand |
iStarUSA |
Model |
D-400-6-ND |
Details |
Chassis Type |
Rackmount |
Form Factor |
4U |
Color |
Black |
Case Material |
1.2mm SECC Zinc-Coated Steel |
Motherboard Compatibility |
12" x 10" (ATX, micro-ATX) |
Expansion |
External 5.25" Drive Bays |
6 |
External 3.5" Drive Bays |
2 |
Internal 3.5" Drive Bays |
2 |
Expansion Slots |
7 |
Front Ports |
Front Ports |
USB |
Cooling System |
80mm Fans |
1 |
Features |
Features |
Material of Front Bezel : Aluminum alloy
Material of Handle : 1.2mm SECC Zinc-Coated Steel
Material of Main Chassis : 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Standard I/O Shield
Power and Alarm Reset Switch
Power and HDD LED
Removable Air Filter |
Dimensions & Weight |
Dimensions (H x W x D) |
20.8" x 19.0" x 7.0" |
