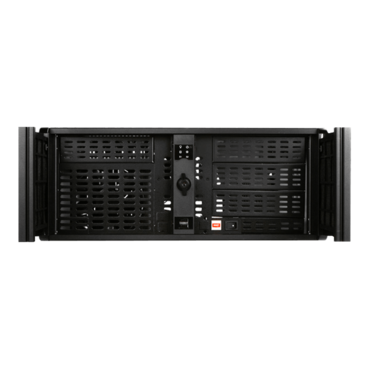

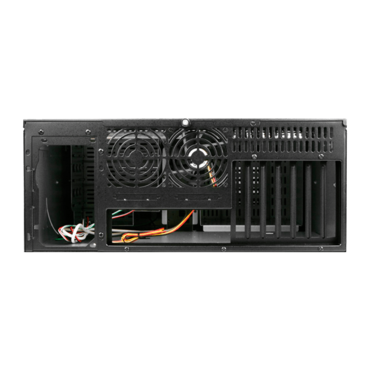

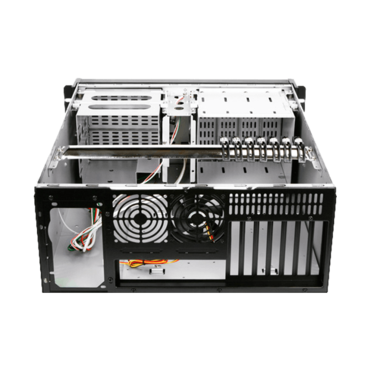

D Storm D-400, Black Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis

Quantity:
  • SKU: 1983176
  • Manufacturer: ISTARUSA
  • MPN: D-400
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$261.04
Quantity:
D Storm D-400, Black Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-400. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400 provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

D-400-BLUE 4U Compact Stylish Rackmount Chassis

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 120mm x1, 80mm x1 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
Model Number D-400
RoHS Compliance Yes
Form factor 4 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 2
5.25" Drives: 4
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type PS2, Mini Redundant
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 9.6 (ATX, microATX)
Cooling Fan 1x80mm, 1x120mm
Optional Fan: 80mm x1
Ordering Information
(Part Number)
Black Bezel:D-400
Dimensions (WxHxD) 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm
Notes - HTS code: 8473.30.5100
- ECCN 4A994
