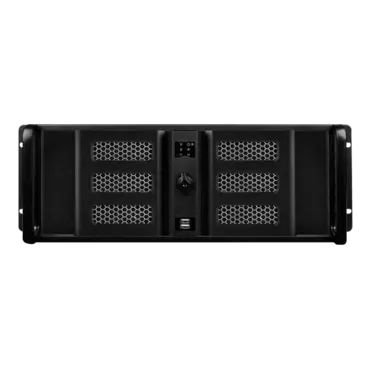

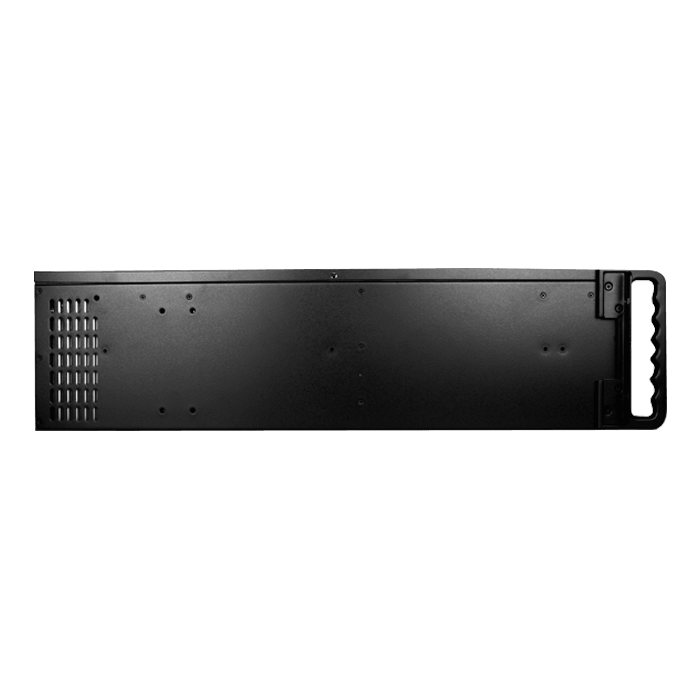

D Storm D-400L-7SE-BK, Black Bezel, 7x 5.25", 2x 3.5" Drive Bays, No PSU, E-ATX, Black, 4U Chassis
Quantity:
- SKU: 7382080
- Manufacturer: ISTARUSA
- MPN: D-400L-7SE-BK
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$366.85
D Storm D-400L-7SE-BK, Black Bezel, 7x 5.25", 2x 3.5" Drive Bays, No PSU, E-ATX, Black, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-400L-7SE-BK. Combine with BPU or T Series enable hot-swappable JBOD and RAID configuration. It also supports up to seven full-length full-height add-on cards. Total capacity up to 3.5" x12 or 2.5" x36 HDD drives for high density data storage. Center hot-swappable 120mm fan provides excellent thermal cooling solution. Achieve ultimate uninterrupted operation with support of iStarUSA redundant power supply. D-400L-7SE provides your server or cluster maximum flexibility and performance.
iStarUSA 4U industrial rackmount chassis D Storm D-400L-7SE-BK. Combine with BPU or T Series enable hot-swappable JBOD and RAID configuration. It also supports up to seven full-length full-height add-on cards. Total capacity up to 3.5" x12 or 2.5" x36 HDD drives for high density data storage. Center hot-swappable 120mm fan provides excellent thermal cooling solution. Achieve ultimate uninterrupted operation with support of iStarUSA redundant power supply. D-400L-7SE provides your server or cluster maximum flexibility and performance.
D-400L-7SE-BK 4U High Performance Rackmount Chassis
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Standard I/O Shield
- Power and Alarm Reset Switch
- Power and HDD LED
- Removable Air Filter
- 120mm x3, 80mm x1 Cooling Fan
- Front Access USB2.0 x2
| Model Number | D-400L-7SE-BK |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 1 5.25" Drives: 7 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 1x80mm, 3x120mm |
| Optional Fan: | 80mm x1 |
| Ordering Information
(Part Number) |
Black Bezel:D-400L-7SE-BK |
| Dimensions (WxHxD) | 19.00" x 7.00" x 27.90"
482.6 mm x 177.8 mm x 708.7 mm |
