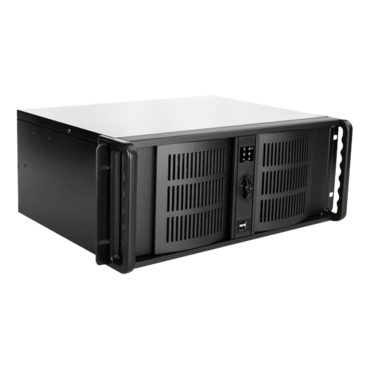

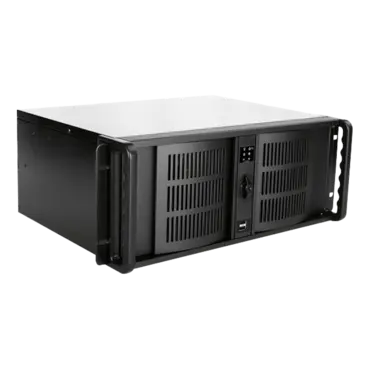

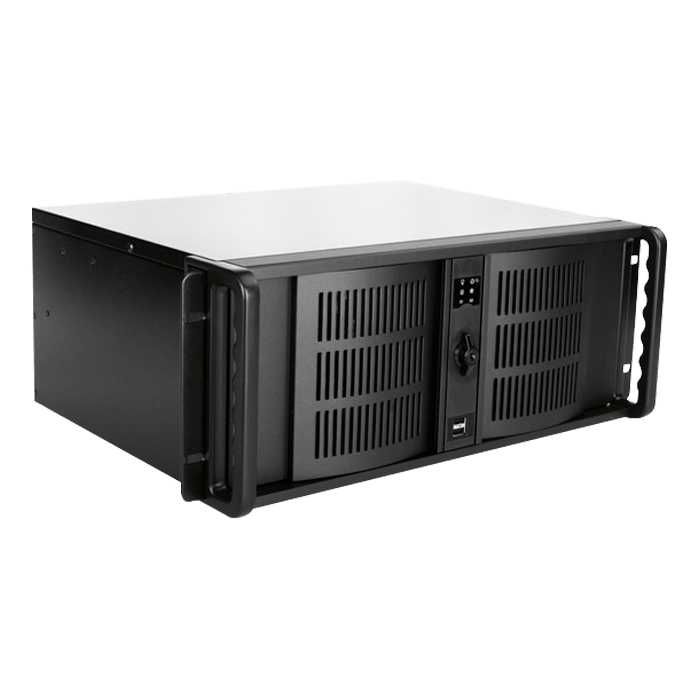

D Storm D-400S3, Black Bezel, 1x Slim 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis
Quantity:
- SKU: 3582918
- Manufacturer: ISTARUSA
- MPN: D-400S3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$247.24
D Storm D-400S3, Black Bezel, 1x Slim 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis
D-400S3 is an ultra compact industrial rackmount chassis with 13.7" in depth. The full size I/O supports all ATX motherboard and up to seven full-height add-on cards. Two external 3.5" drive bays are ideal for iStarUSA BPU-2535 to support up to 4 x 2.5" hard drives. Besides, there is one 5.25" slim drive bay for slim optical device. One 120mm and 80mm cooling fans in the front and additional one 80mm fans can be mounted in the rear to provide the best ventilation to prevent critical equipment from heat damage. D-400S3 provides server or cluster maximum reliability and performance.
D-400S3 is an ultra compact industrial rackmount chassis with 13.7" in depth. The full size I/O supports all ATX motherboard and up to seven full-height add-on cards. Two external 3.5" drive bays are ideal for iStarUSA BPU-2535 to support up to 4 x 2.5" hard drives. Besides, there is one 5.25" slim drive bay for slim optical device. One 120mm and 80mm cooling fans in the front and additional one 80mm fans can be mounted in the rear to provide the best ventilation to prevent critical equipment from heat damage. D-400S3 provides server or cluster maximum reliability and performance.
D-400S3 4U Ultra Compact Rackmount Chassis
- Ultimate Compact Size 13.7" in Depth
- Front Access USB2.0 Port
- 120mm and 80mm Cooling Fans in the Front
- Power and HDD LED
- Power and Reset Switch
| Model Number | D-400S3 |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 1 Slim 5.25" Optical: 1 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS3 |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 2x80mm, 1x120mm |
| Optional Fan: | 80mm x1 |
| Ordering Information
(Part Number) |
Black Bezel:D-400S3 |
| Dimensions (WxHxD) | 19.00" x 7.00" x 13.70"
482.6 mm x 177.8 mm x 348.0 mm |
