D Storm D-400S3SE, Blue Bezel, 1x Slim 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black/Blue, 4U Chassis

SKU: 5249642

Manufacturer: ISTARUSA

MPN: D-400S3SE

Availability: Unknown


Price: $303.59
or as low as $10/month
Quantity:

D-400S3SE is an ultra compact industrial rackmount chassis with 13.7" in depth. The full size I/O supports all ATX motherboard and up to seven full-height add-on cards. Two external 3.5" drive bays are ideal for iStarUSA BPU-2535V2 to support up to 4 x 2.5" hard drives. Besides, there is one 5.25" slim drive bay for slim optical device. One 120mm and 80mm cooling fans in the front and additional one 80mm fans can be mounted in the rear to provide the best ventilation to prevent critical equipment from heat damage. D-400S3SE provides server or cluster maximum reliability and performance.

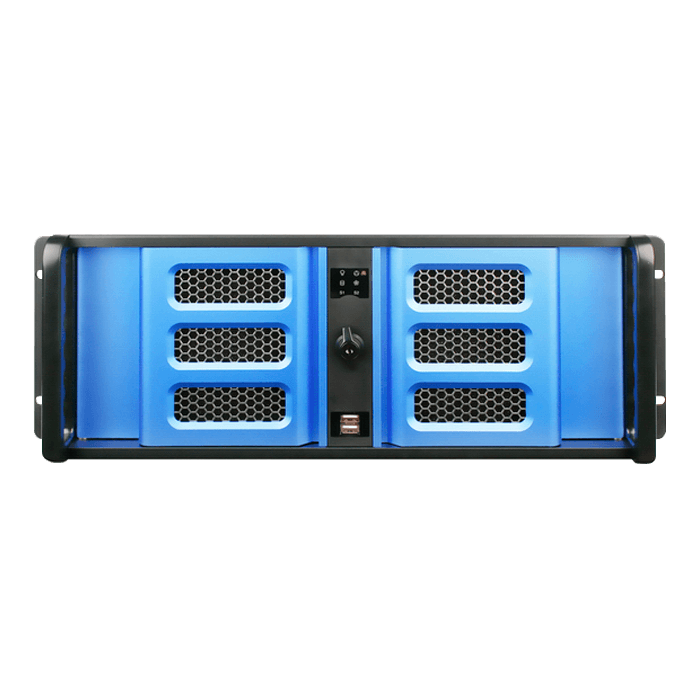

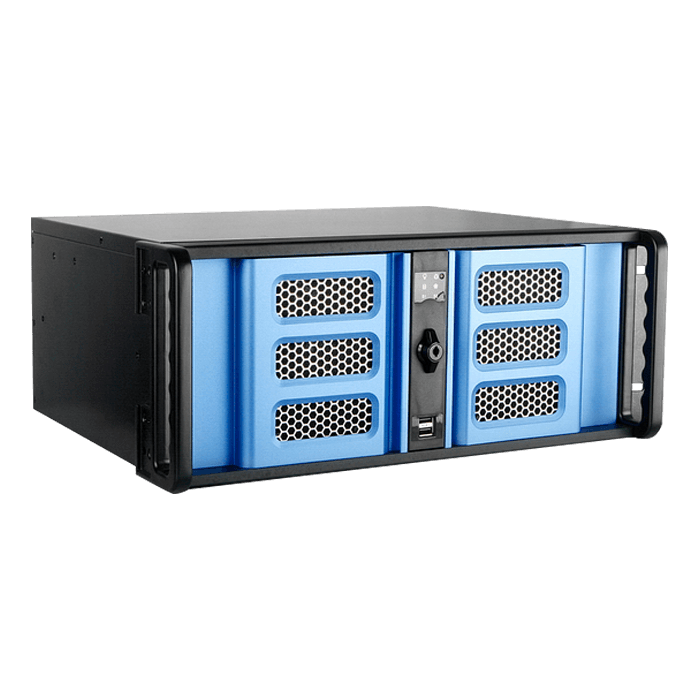

D-400S3SE 4U Ultra Compact Rackmount Chassis

  • Ultimate Compact Size 13.7" in Depth
  • Power and Reset Switch
  • Power and HDD LED

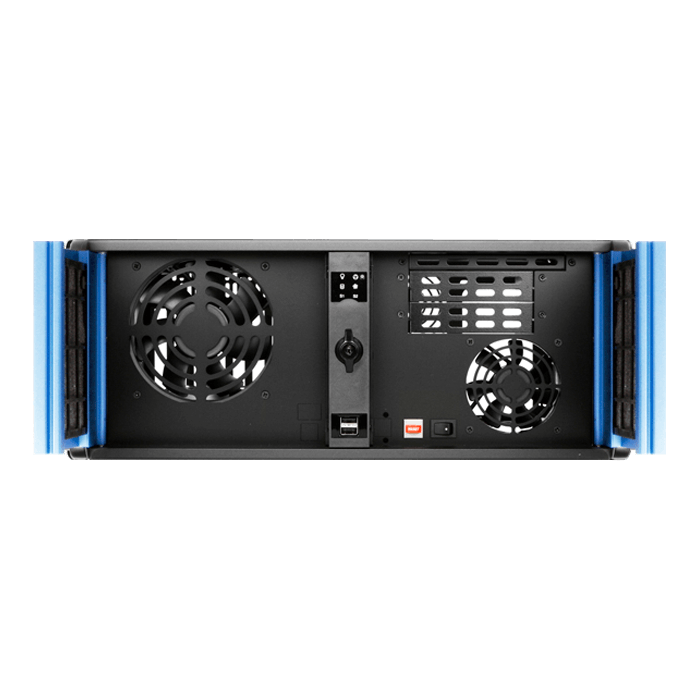

  • 120mm and 80mm Cooling Fans in the Front
  • Front Access USB2.0 Port
Model Number D-400S3SE
RoHS Compliance Yes
Form factor 4 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 1
Slim 5.25" Optical: 1
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type PS3
Expansion Slots 7
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Blue
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 9.6 (ATX, microATX)
Cooling Fan 1x80mm, 1x120mm
Optional Fan: 80mm x1
Ordering Information
(Part Number)
Blue Bezel:D-400S3SE
Dimensions (WxHxD) 19.00" x 7.00" x 13.70"
482.6 mm x 177.8 mm x 348.0 mm
