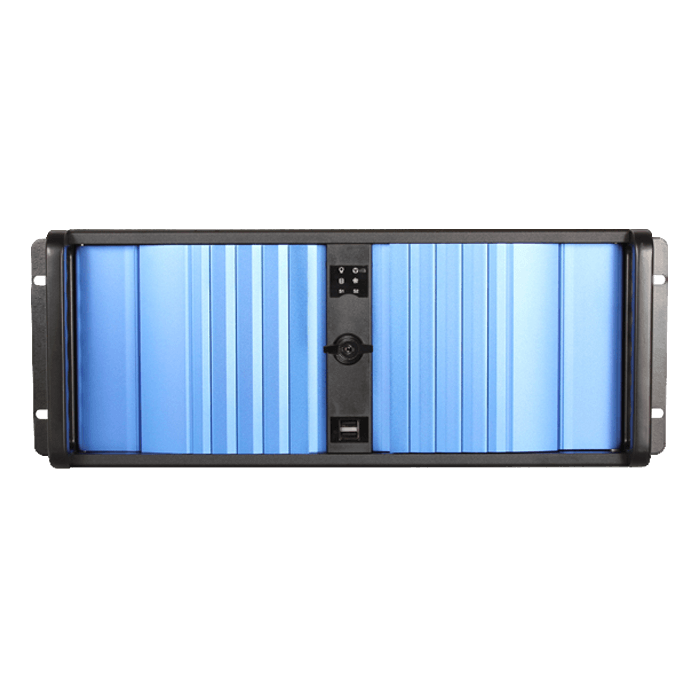

- Patented Aluminum Front Panel with Locks
- Optional BPU-230 2 to 3 Hot-Swappable HDD Cage
- Optional Aluminum Chassis
- Power and Alarm Reset Switch
- Power and HDD LED
- Front Access USB2.0 x2
- 120mm x1 and 80mm x1 Cooling Fan
Model Number | D-400SEA |
RoHS Compliance Version | Yes |
Form factor | 4 U |
Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 2 5.25" Drives: 4 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | PS2, Mini Redundant |
Expansion Slots | 7 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Blue |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 1x80mm, 1x120mm |
Optional Fan: | 80mm x1 |
Ordering Information
(Part Number) |
Blue Bezel:D-400SEA |
Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
