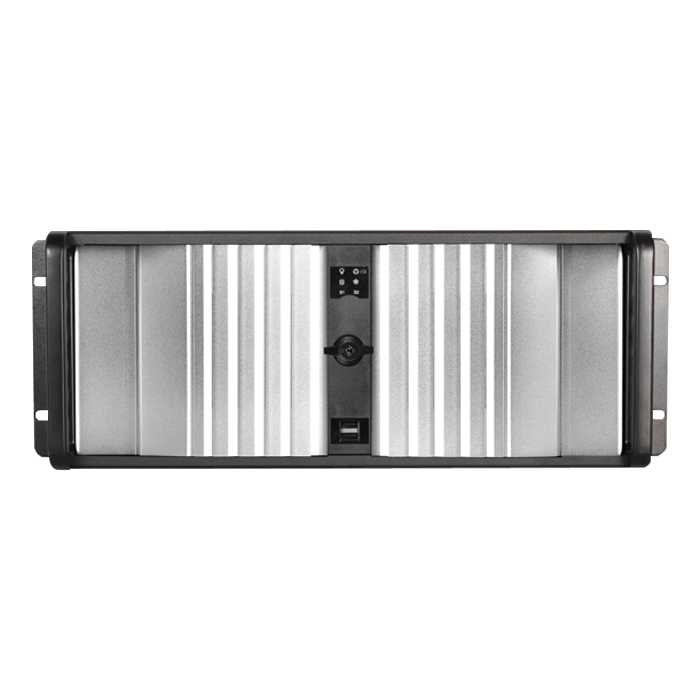

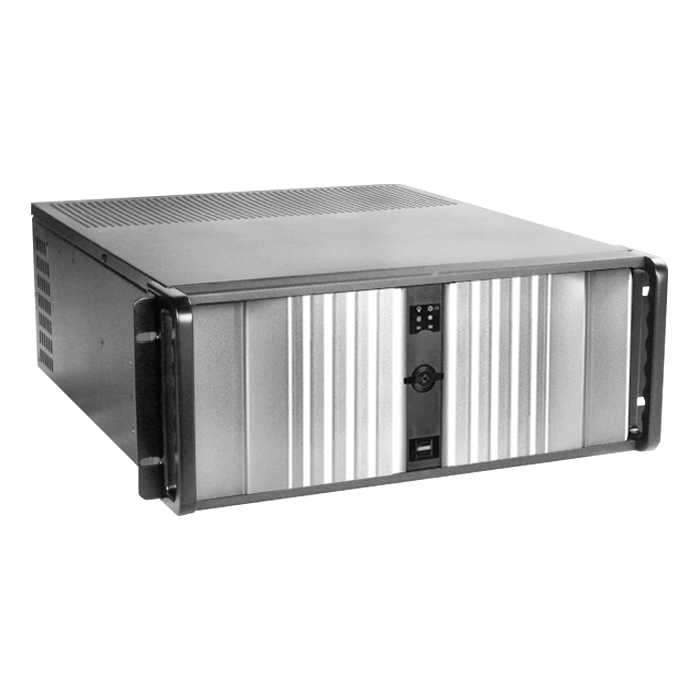

D Storm D-400SEA-SL, Silver Bezel, 4x 5.25" 3x 3.5" Drive Bays, ATX, Black/Silver, 4U Chassis
- SKU: 9302495
- Manufacturer: ISTARUSA
- MPN: D-400SEA-SL
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$273.69
D Storm D-400SEA-SL, Silver Bezel, 4x 5.25" 3x 3.5" Drive Bays, ATX, Black/Silver, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-400SEA, D-400SEA-SL. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400SEA provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
- Patented Aluminum Front Panel with Locks
- Optional BPU-230 2 to 3 Hot-Swappable HDD Cage
- Optional Aluminum Chassis
- Power and Alarm Reset Switch
- Power and HDD LED
- Front Access USB2.0 x2
- 120mm x1 and 80mm x1 Cooling Fan
| Model Number | D-400SEA |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 2 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Silver |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x80mm, 1x120mm |
| Optional Fan: | 80mm x1 |
| Ordering Information
(Part Number) |
Silver Bezel:D-400SEA-SL |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
