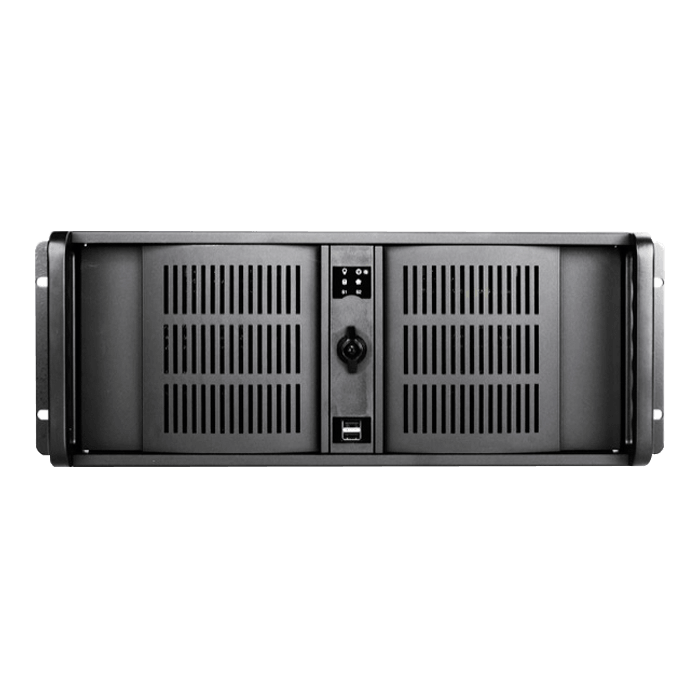

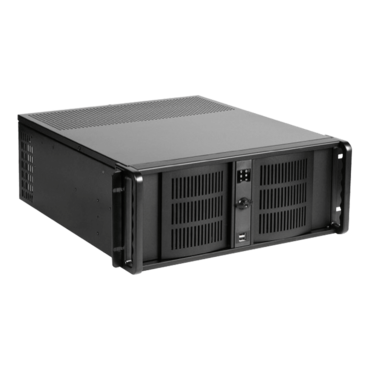

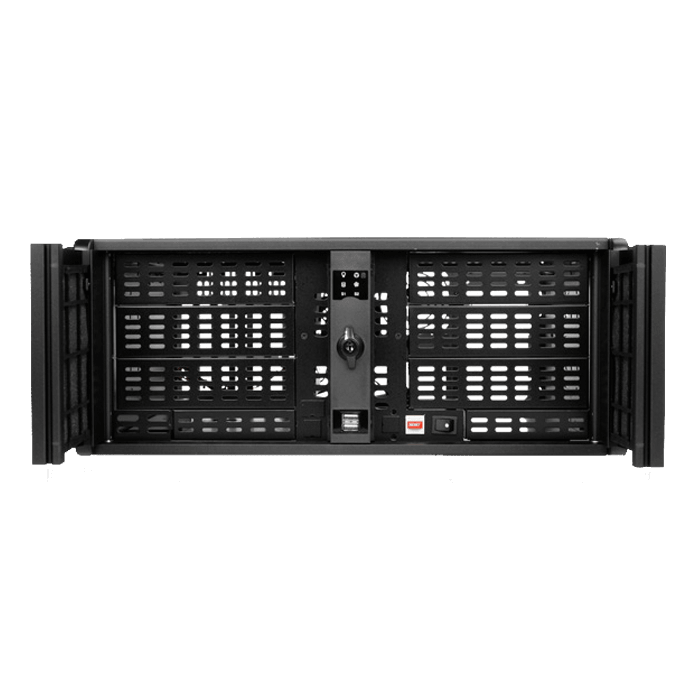

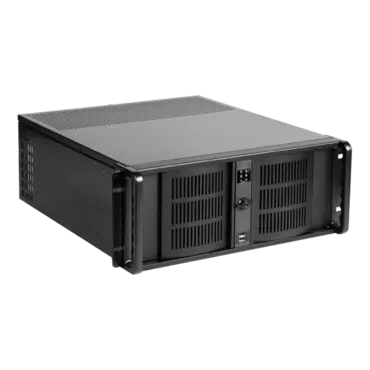

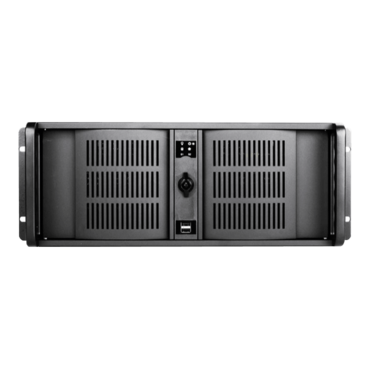

D Storm D-406-50R8PD2, Black Bezel, 6x 5.25", 4x 3.5" Drive Bays, 500W Rdt PSU, ATX, Black, 4U Chassis
Quantity:
- SKU: 11159165
- Manufacturer: ISTARUSA
- MPN: D-406-50R8PD2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$460.00
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- 500W redundant power supply
| Model Number | D-406-50R8PD2 |
| RoHS Compliance Version | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 2 5.25" Drives: 6 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x80mm |
| Optional Fan: | 80mm x1 |
| Ordering Information
(Part Number) |
Black Bezel:D-406-50R8PD2
Blue Bezel:D-406-BL-50R8PD2 Red Bezel:D-406-RD-50R8PD2 Silver Bezel:D-406-SL-50R8PD2 |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
