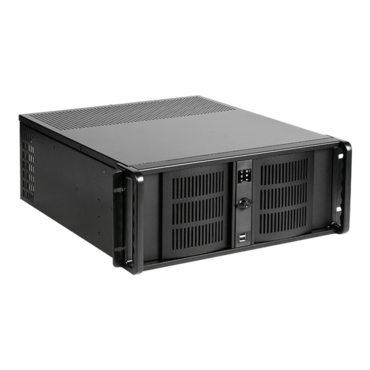

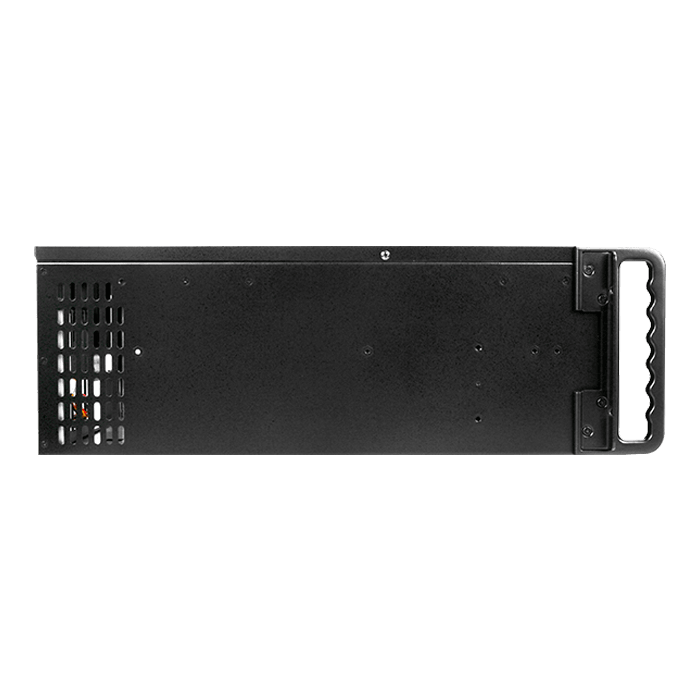

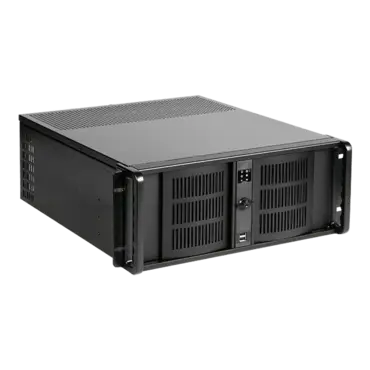

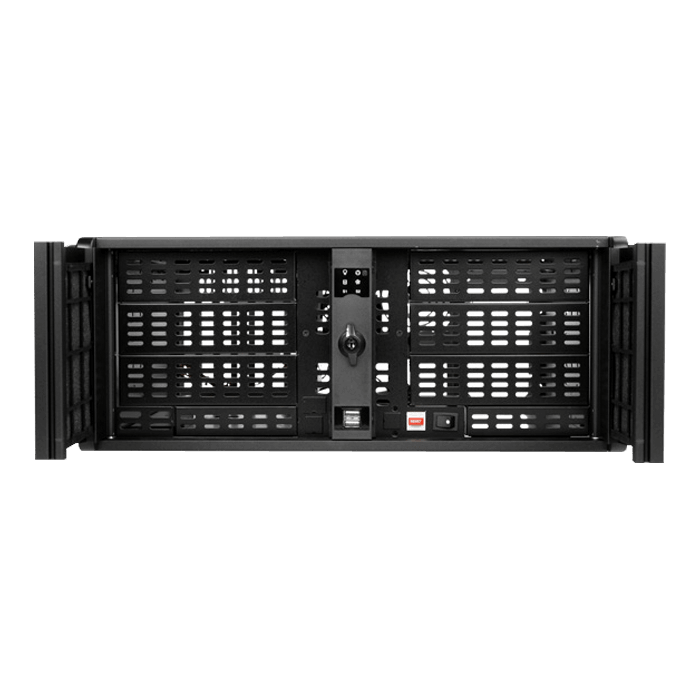

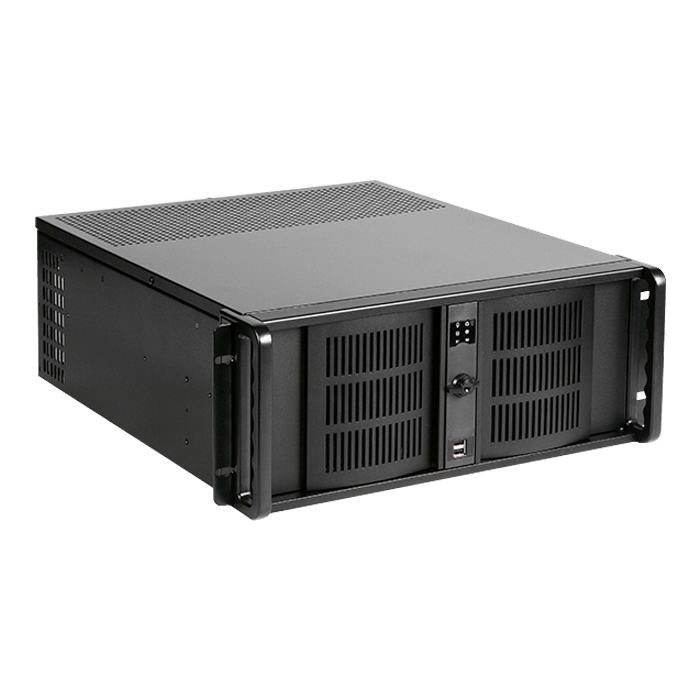

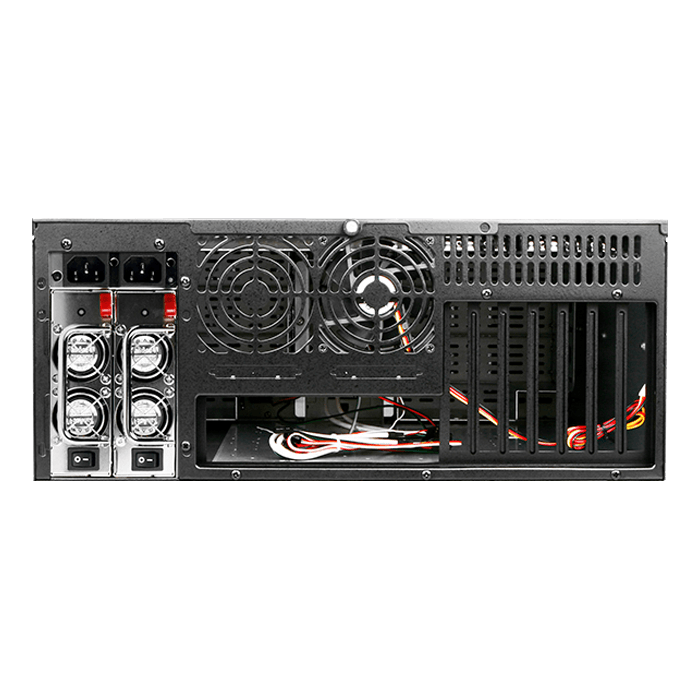

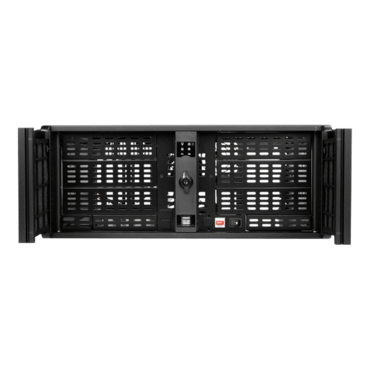

D Storm D-406-55R8P, Black Bezel, 6x 5.25", 4x 3.5" Drive Bays, 550W Rdt PSU, ATX, Black, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-406-55R8P. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. With a 550W redundant power supply, D-406-55R8P provides your server or cluster maximum reliability and performance with zero down time.
iStarUSA 4U industrial rackmount chassis D Storm D-406-55R8P. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. With a 550W redundant power supply, D-406-55R8P provides your server or cluster maximum reliability and performance with zero down time.
D-406-55R8P 4U Compact Stylish Rackmount Chassis with 550W Redundant Power Supply
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- 550W redundant power supply
Model Number | D-406-55R8P |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 2 5.25" Drives: 6 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | PS2, Mini Redundant |
Expansion Slots | 7 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Black |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Air Filter | Removable & Washable |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 1x80mm |
Optional Fan: | 80mm x1 |
Ordering Information
(Part Number) |
Black Bezel:D-406-55R8P |
Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
