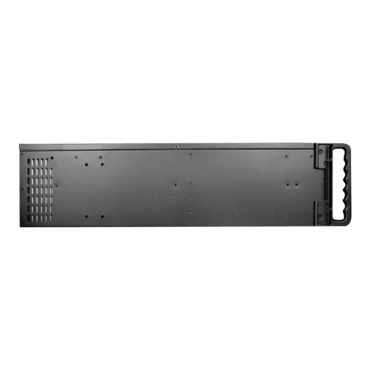

D Storm D-407LSE-RD-TS859, Red Bezel, w/ 8" Touch Screen LCD, 3x 5.25", 1x 3.5" Drive Bays, No PSU, E-ATX, Black/Red, 4U Chassis

Quantity:
  • SKU: 12696173
  • Manufacturer: ISTARUSA
  • MPN: D-407LSE-RD-TS859
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$686.55
Quantity:
D Storm D-407LSE-RD-TS859, Red Bezel, w/ 8" Touch Screen LCD, 3x 5.25", 1x 3.5" Drive Bays, No PSU, E-ATX, Black/Red, 4U Chassis

Introducing the new D-407LSE-TS859 from our well-praised D-Storm rackmount chassis. Built-in 8" touch screen LCD enables instant system control and configuration. Three 5.25" and one 3.5" drive bay space, and ultra-quiet power supply option most suitable for DVR, telecom, and audio recording applications. Ask for our OEM/ODM project special!

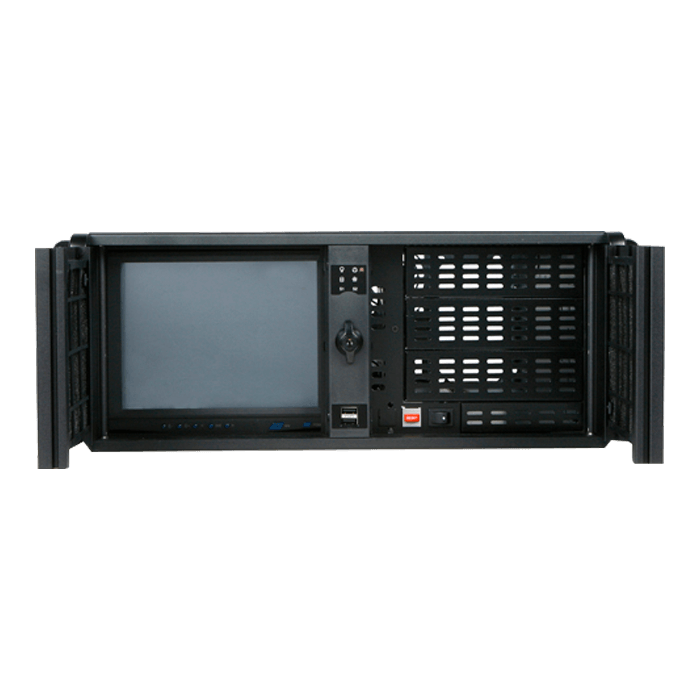

D-407LSE-RD-TS859 4U High Performance Rackmount Chassis with 8" Touch Screen LCD

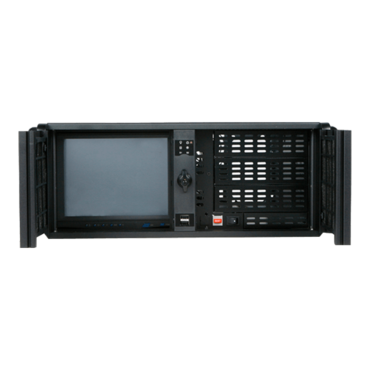

  • Built-in 8" Touch Screen LCD
  • Front Access USB2.0 x2

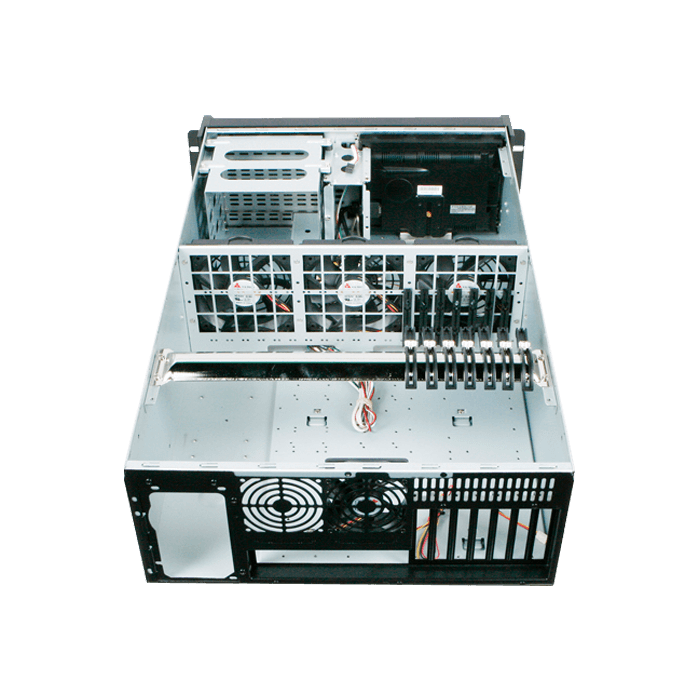

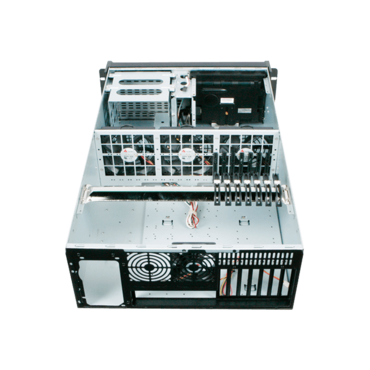

  • 120mm x3, 80mm x1 Cooling Fan
  • Removable Air Filter
  • Aluminum Color Front Door
  • Monitor: 800x600 resolution with remote control
Model Number D-407LSE-RD-TS859
RoHS Compliance Yes
Form factor 4 U
Standard Drive Bays 3.5" Drives: 1
5.25" Drives: 3
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches Power, Reset, Mute (Mute for sensor board TC-ISF08
Expansion Slots 7
Security Front Bezel
Material of Front Bezel Aluminum
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis Zinc-Coated Steel SECC 1.2mm (Japan Made)
Color of Front Bezel Red
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size 12 x 13 (EATX, ATX, microATX)
Cooling Fan 1x80mm, 3x120mm
Optional Fan: 1x80mm
Ordering Information
(Part Number)
Red Bezel:D-407LSE-RD-TS859
Dimensions (WxHxD) 19.00" x 7.00" x 27.90"
482.6 mm x 177.8 mm x 708.7 mm
