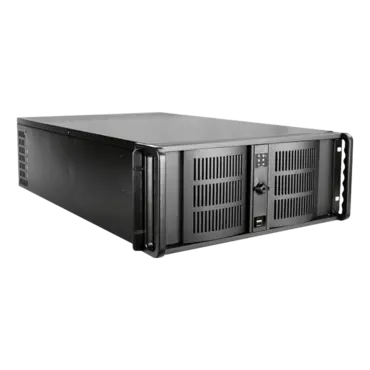

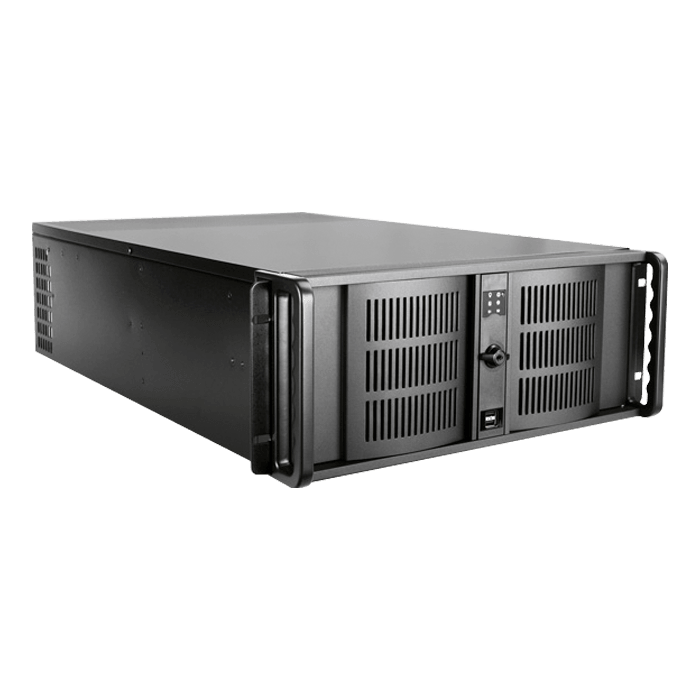

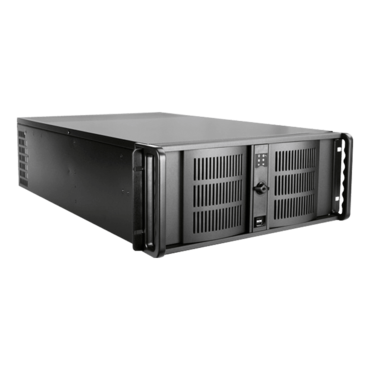

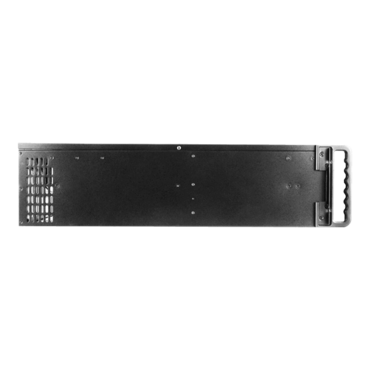

D Storm D-414L-7, Black Bezel, 7x 5.25", 2x 3.5" Drive Bays, No PSU, Black, 4U Chassis

Quantity:
  • SKU: 5906481
  • Manufacturer: ISTARUSA
  • MPN: D-414L-7
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$333.50
Quantity:
D Storm D-414L-7, Black Bezel, 7x 5.25", 2x 3.5" Drive Bays, No PSU, Black, 4U Chassis
The iStarUSA industrial computing chassis D-414L-7, 4U chassis with 14 slot backplane support all size standard add-on cards. D-414L-7 has exceptional thermal cooling system with hot-swappable system fans. Ideal solution for telecommunication, industrial automation, control system, and data requisition application. Additional storage with support of BPU series HDD converter cage to mange large data files and improves transfer bandwidth.

D-414L-7 4U 14 Slots Industrial PC Rackmount Chassis

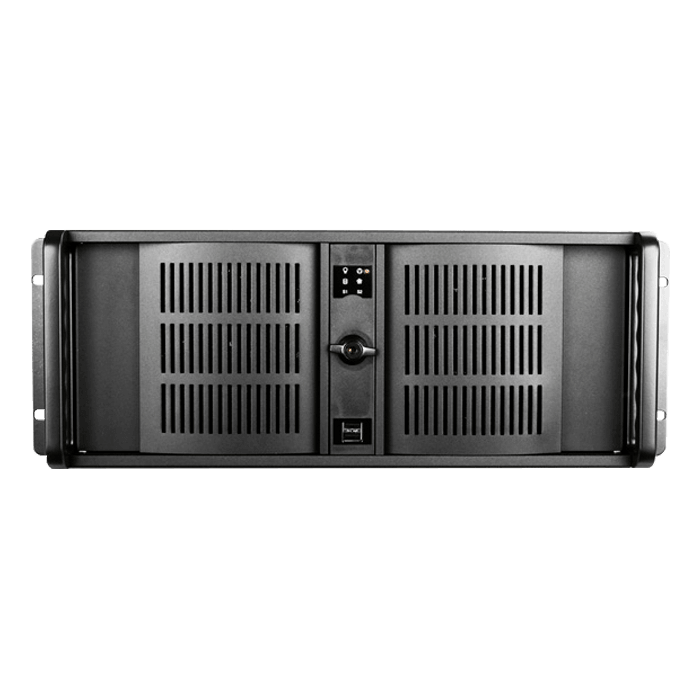

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 120mm x3 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch

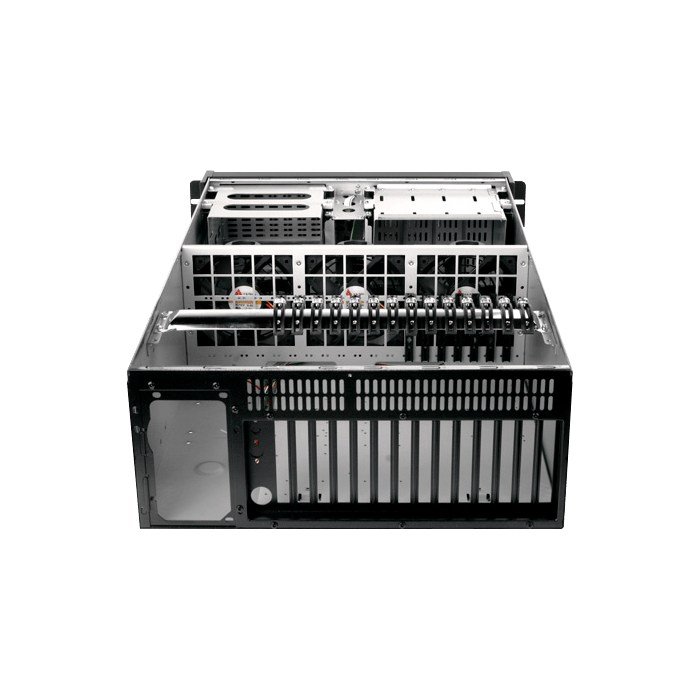

  • 14 Slot Backplane
Model Number D-414L-7
RoHS Compliance Yes
Form factor 4 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 1

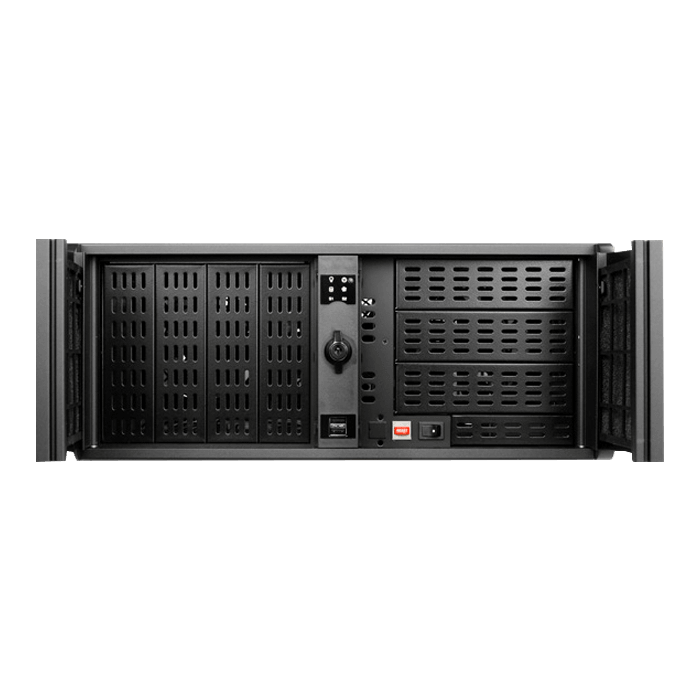

5.25" Drives: 7
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type PS2

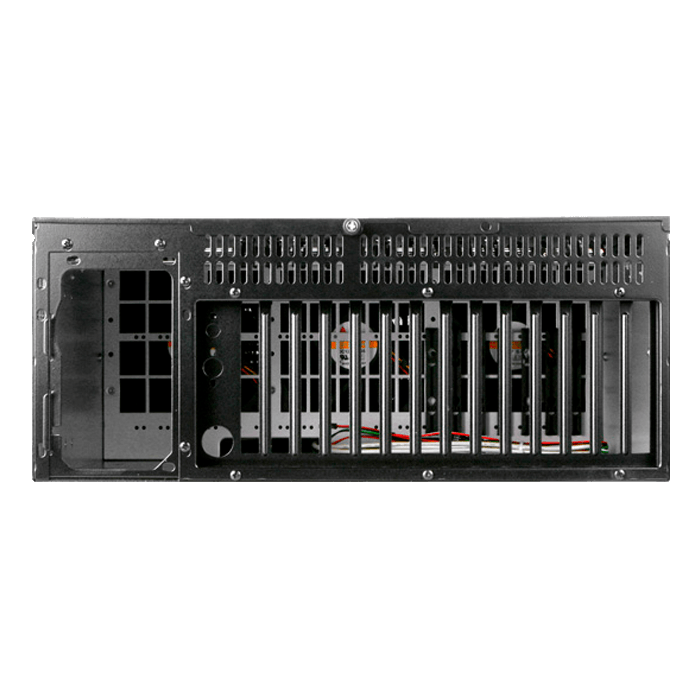

Expansion Slots 14
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Air Filter Removable & Washable
Motherboard Size Passive backplane/ Single board
Cooling Fan 3x120mm
Ordering Information
(Part Number)
Black Bezel:D-414L-7
Dimensions (WxHxD) 19.00" x 7.00" x 27.90"
482.6 mm x 177.8 mm x 708.7 mm
