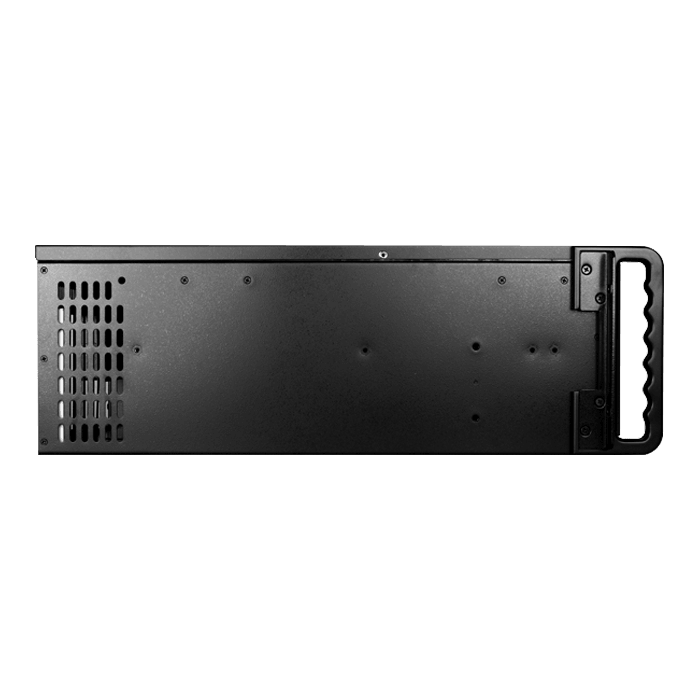

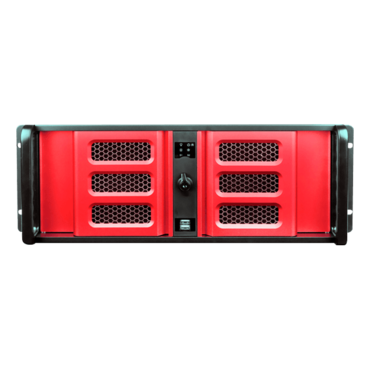

D Storm D406SE-B6RD-RD, Red HDD Handle and Bezel, 2x 5.25", 4x 3.5" Drive Bays, 6x 3.5" Hotswap Bays, No PSU, ATX, Black/Red, 4U Chassis
Quantity:
- SKU: 12694493
- Manufacturer: ISTARUSA
- MPN: D406SE-B6RD-RD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$443.90
D Storm D406SE-B6RD-RD, Red HDD Handle and Bezel, 2x 5.25", 4x 3.5" Drive Bays, 6x 3.5" Hotswap Bays, No PSU, ATX, Black/Red, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-406SE-B6SA. Combine with BPU Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 6 hotswap storage drives for RAID configuration. D-400-6SE-B6SA provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
D406SE-B6RD-RD 4U Compact Stylish 6x3.5" Hotswap Server Chassis
- 6x3.5" Hotswap Drive Bays
- Front Access USB2.0 x2
- Power and HDD LED
- Power and Alarm Reset Switch
- 80mm x1 Cooling Fan
- Optional Aluminum Chassis
| Model Number | D406SE-B6RD-RD |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 2 Hotswap 3.5": 6 5.25" Drives: 2 |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x80mm |
| Optional Fan: | 80mm x1 |
| Ordering Information
(Part Number) |
Red HDD Handle and Bezel:D406SE-B6RD-RD |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
