iStarUSA 4U industrial rackmount chassis D Storm D-406SE-B6SA. Combine with BPU Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 6 hotswap storage drives for RAID configuration. D-400-6SE-B6SA provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

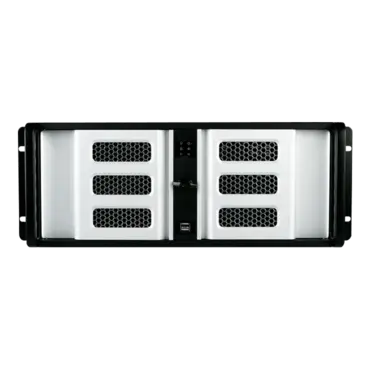

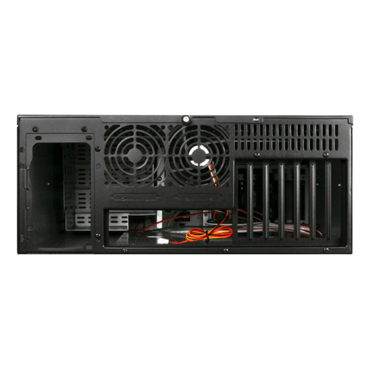

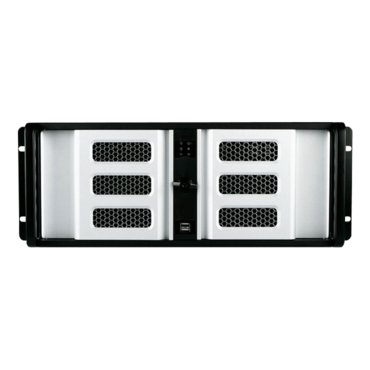

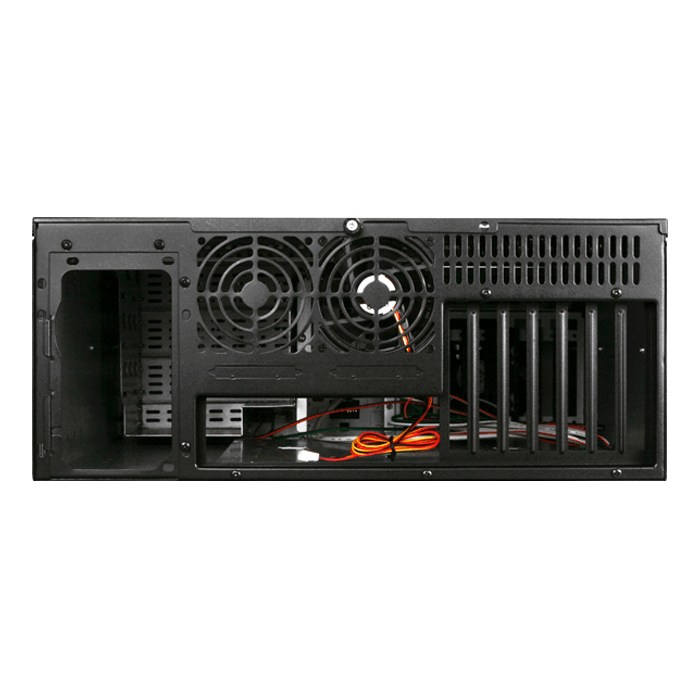

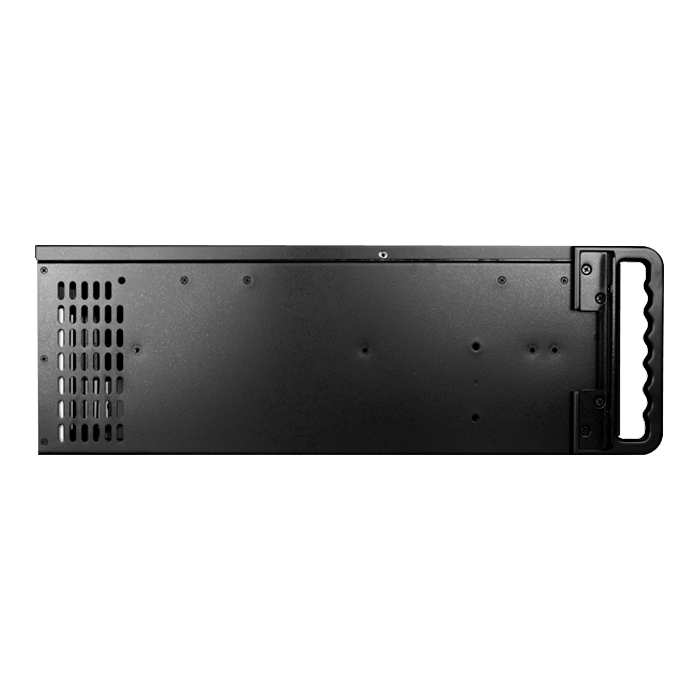

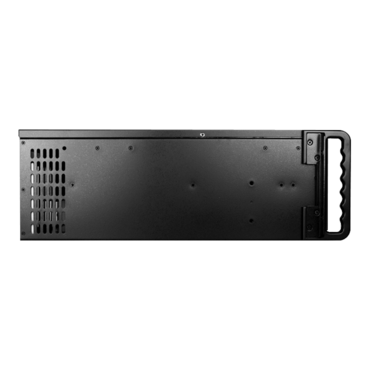

D406SE-B6SL-SL 4U Compact Stylish 6x3.5" Hotswap Server Chassis
Model Number | D406SE-B6SL-SL |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 2 Hotswap 3.5": 6 5.25" Drives: 2 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | PS2, Mini Redundant |
Expansion Slots | 7 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Air Filter | Removable & Washable |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 1x80mm |
Optional Fan: | 80mm x1 |
Ordering Information
(Part Number) |
Silver HDD Handle and Bezel:D406SE-B6SL-SL |
Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
