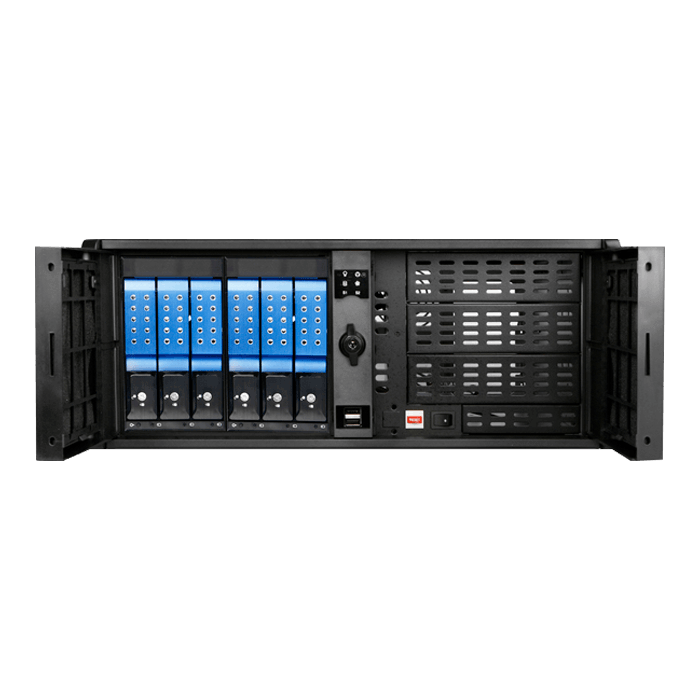

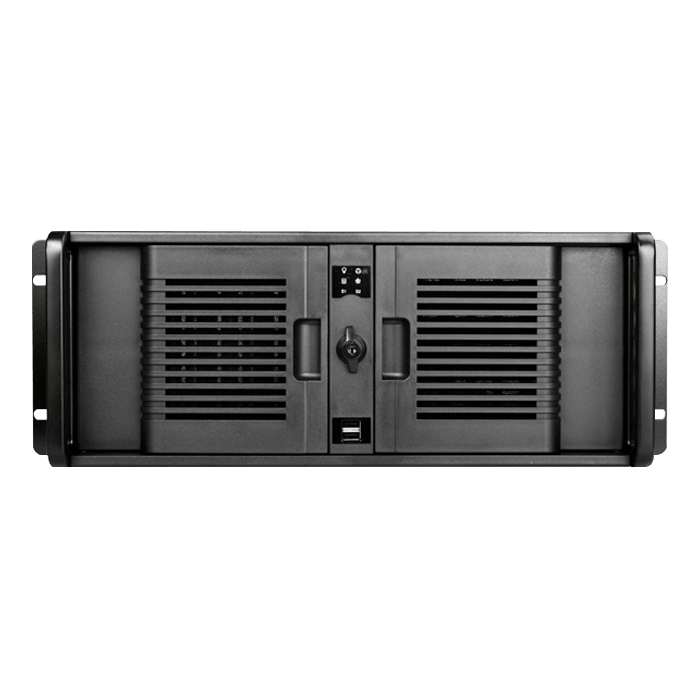

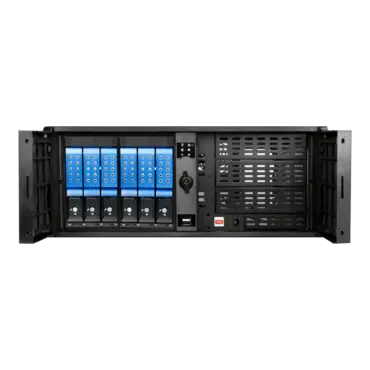

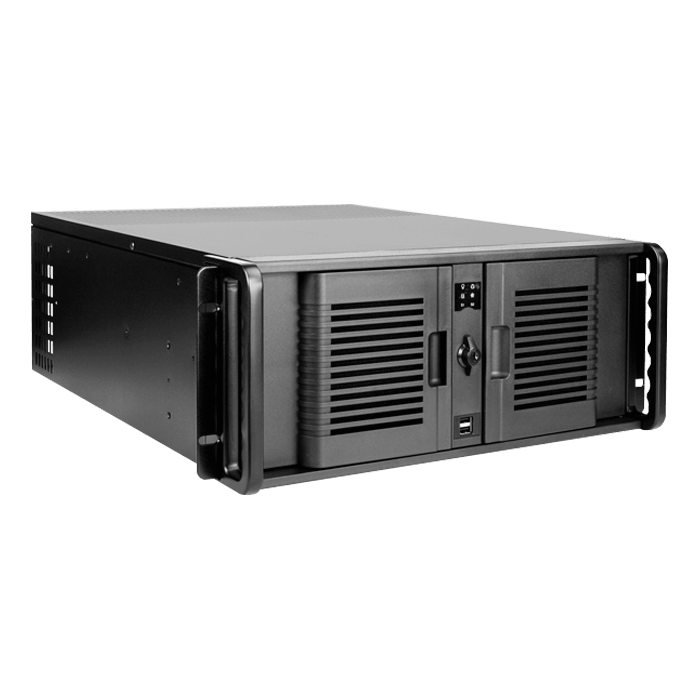

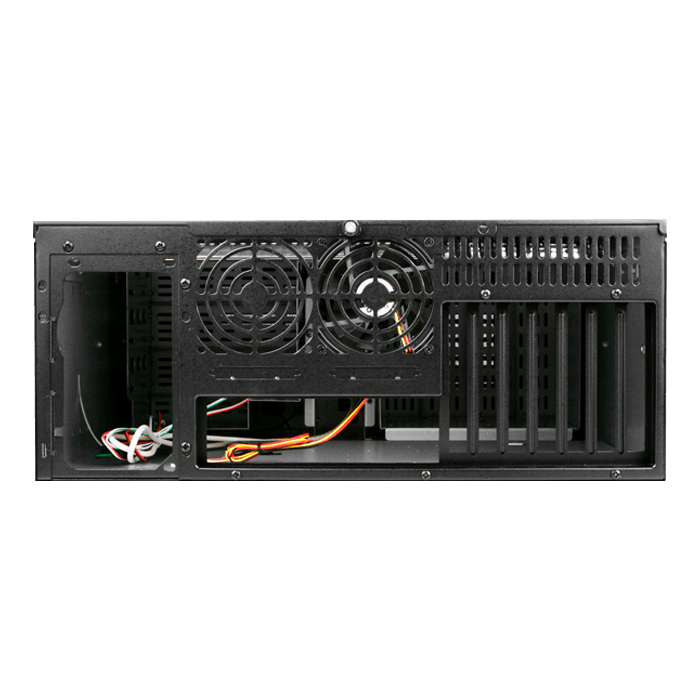

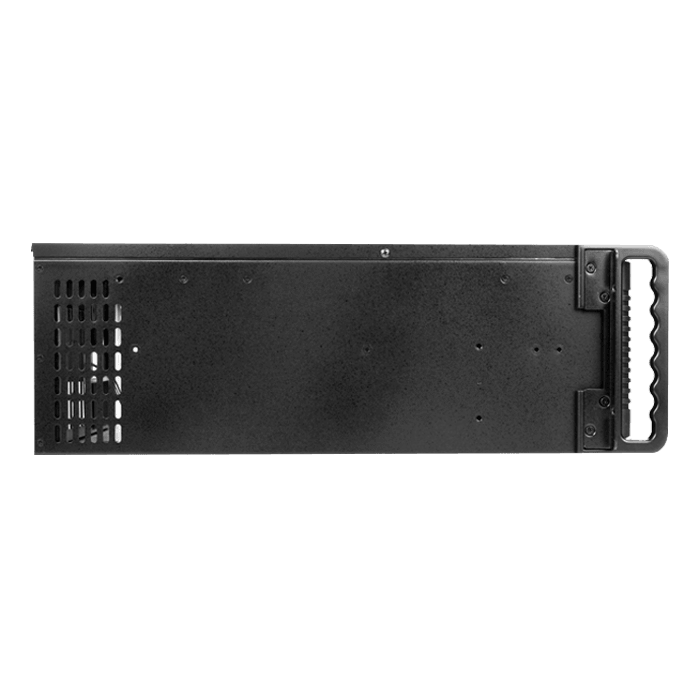

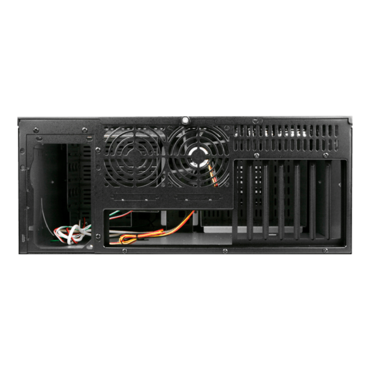

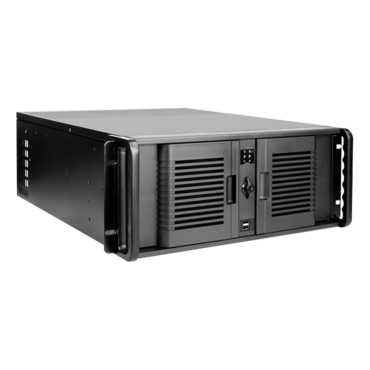

D Storm D407P-DE6BL, Blue HDD Handle, 3x 5.25", 2x 3.5" Drive Bays, 6x 3.5" Hotswap Bays, No PSU, ATX, Black/Blue, 4U Chassis
The iStarUSA 4U industrial rackmount chassis D Storm D407P-DE6BL. Installed with 2xBPN-DE230SS enable 6x3.5" hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 9 storage drives for RAID configuration. D-407P-DE6 provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
The iStarUSA 4U industrial rackmount chassis D Storm D407P-DE6BL. Installed with 2xBPN-DE230SS enable 6x3.5" hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 9 storage drives for RAID configuration. D-407P-DE6 provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
D407P-DE6BL 4U Compact Stylish 6x3.5" Trayless Hotswap Rackmount Chassis
- Front Access USB2.0 x2
- 80mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
- 6x3.5" SAS/SATA Hot-Swap
Model Number | D407P-DE6BL |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 1 Hotswap 3.5": 6 5.25" Drives: 3 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD, Temperature, Fan |
Switches | Power, Reset |
Supported PSU Type | PS2 |
Expansion Slots | 7 |
Security | Front Bezel |
Material of Front Bezel | Plastic |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Blue |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Air Filter | Removable & Washable |
Motherboard Size | 12 x 9.6 (ATX, microATX) |
Cooling Fan | 1x80mm |
Optional Fan: | 1x80mm |
Ordering Information
(Part Number) |
Blue HDD Handle:D407P-DE6BL |
Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
