D Storm D410-B10RD, Red HDD Handle, 4x 5.25" Drive Bays, 10x 3.5" Hotswap Bays, No PSU, E-ATX, Black/Red, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D410-B10RD combines with BPU series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 10 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D410-B10RD provides server or cluster maximum reliability and performance.
iStarUSA 4U industrial rackmount chassis D Storm D410-B10RD combines with BPU series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 10 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D410-B10RD provides server or cluster maximum reliability and performance.

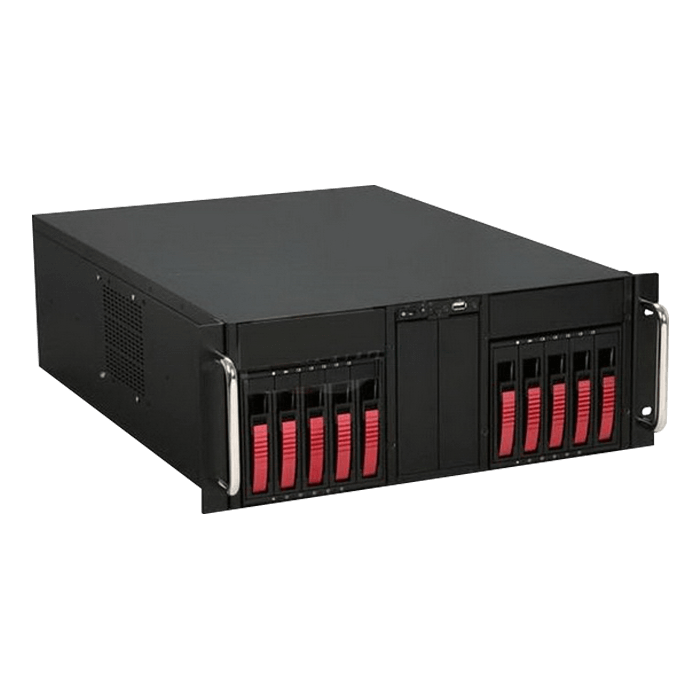

D410-B10RD 4U 10-Bay Stylish Storage Server Rackmount
- Supports Up to 10x 3.5" Hard Drives
- Supports SAS/SATA 6.0Gb/s Hard Drives
- Front Access USB2.0 with Power and HDD LEDs
- Color HDD Tray as Options
- 120mm x 2 Cooling Fans on Sides
- PS2 mini Redundant PSU Compatible
Model Number | D410-B10RD |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | Hotswap 3.5": 10
5.25" Drives: 4 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD |
Switches | Power, Reset |
Supported PSU Type | PS2 |
Expansion Slots | 7 |
Material of Main Chassis | Zinc-Coated Steel |
Color of Main Chassis | Black |
Front Connector | 1x USB 2.0 |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 2x120mm |
Ordering Information
(Part Number) |
Red HDD Handle:D410-B10RD |
Dimensions (WxHxD) | 19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm |
