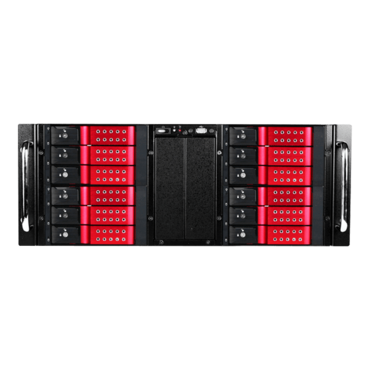

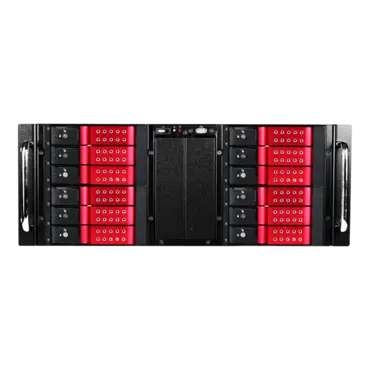

D Storm D410-DE12RD, Red HDD Handle, 12x 3.5" Hotswap Bays, No PSU, E-ATX, Black/Red, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D410-DE12RD combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 12 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE12 provides server or cluster maximum reliability and performance.
iStarUSA 4U industrial rackmount chassis D Storm D410-DE12RD combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 12 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE12 provides server or cluster maximum reliability and performance.
D410-DE12RD 12-bay Stylish Hotswap Trayless Storage Server Rackmount
- Supports Up to 12x 3.5" Hard Drives
- 120mm x 2 Cooling Fans on Sides
- Front Access USB2.0 with Power and HDD LEDs
- Supports SAS/SATA 6.0Gb/s Hard Drives
- Trayless Hard Drive Enclosure Design
- PS2 mini Redundant PSU Compatible
Model Number | D410-DE12RD |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | Hotswap 3.5": 12 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD |
Switches | Power, Reset |
Supported PSU Type | PS2 |
Expansion Slots | 7 |
Material of Main Chassis | Zinc-Coated Steel |
Color of Main Chassis | Black |
Front Connector | 1x USB 2.0 |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 2x120mm |
Ordering Information
(Part Number) |
Red HDD Handle:D410-DE12RD |
Dimensions (WxHxD) | 19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm |
