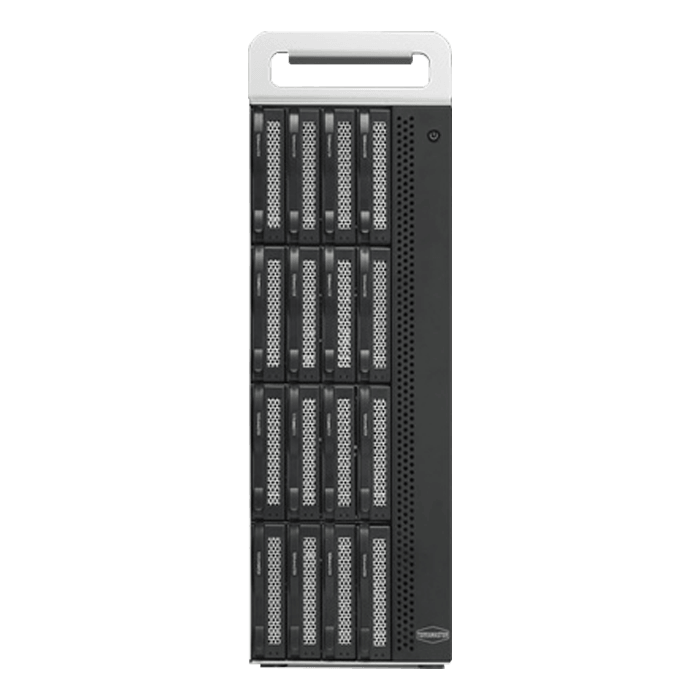

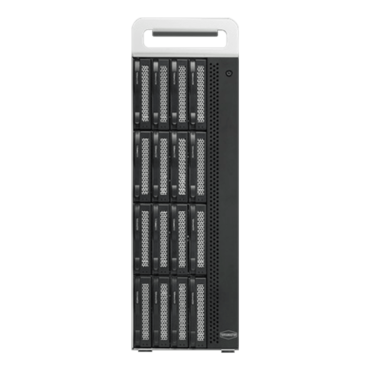

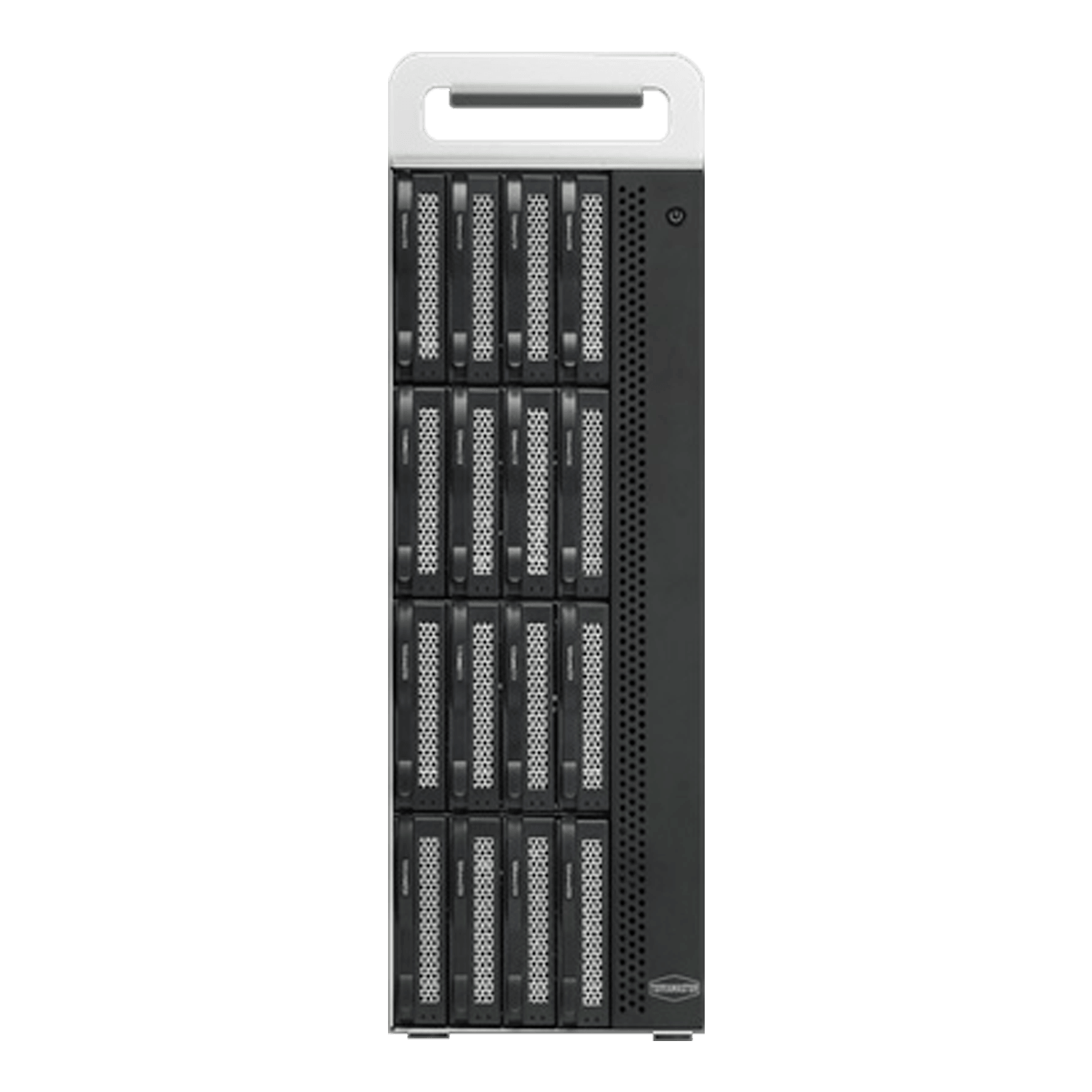

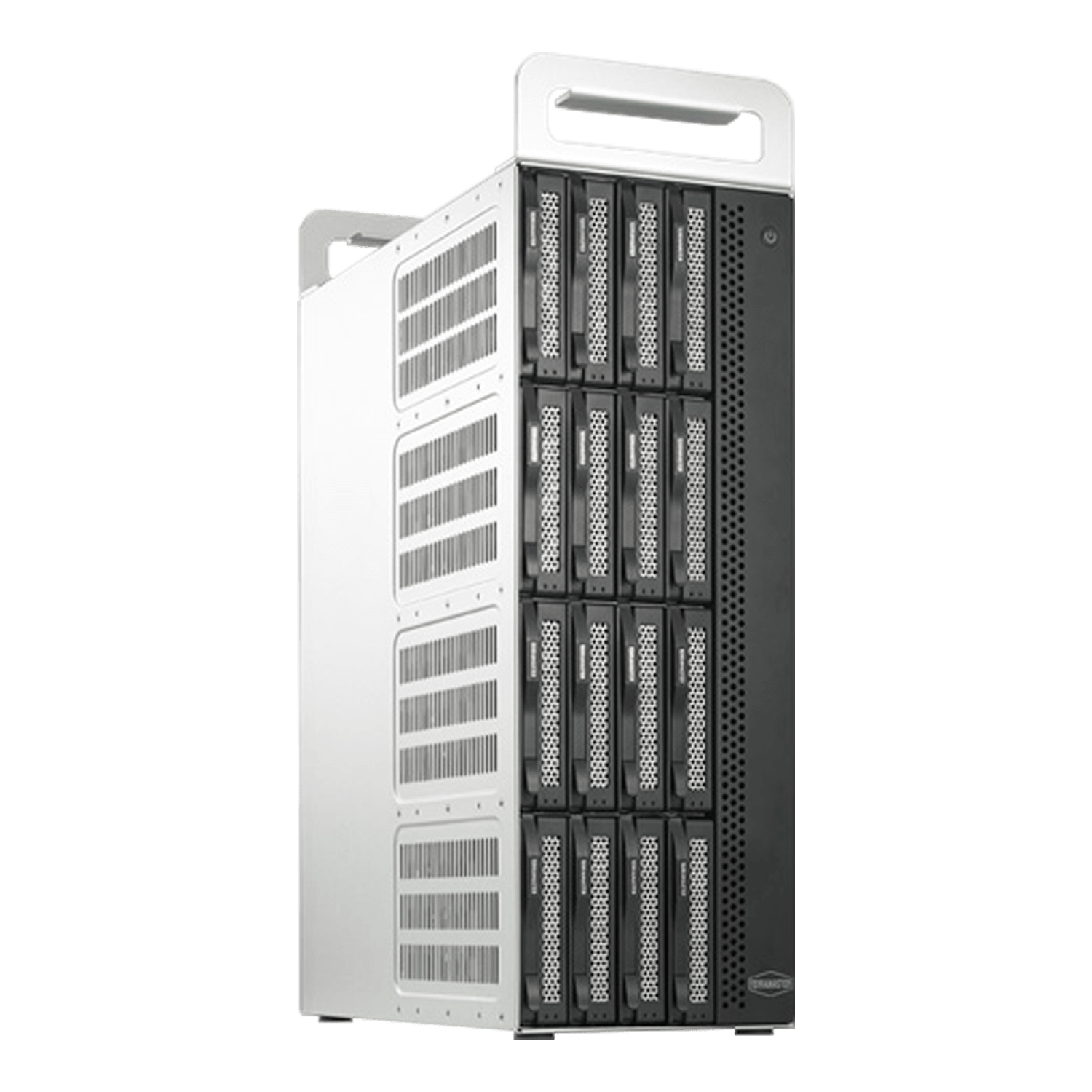

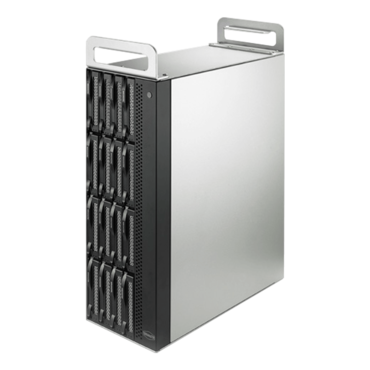

D16 Thunderbolt 3, 16-Bay, Professional-Grade RAID Storage for Video Editing and Photographe
- SKU: 15108252
- Manufacturer: TerraMaster
- MPN: D16 THUNDERBOLT 3
- Availability: CONTACT US
Lightninging-Fast
Drawing on a pair ofThunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the D16 Thunderbolt 3 can operate at transfer speeds of 2817 MB/s under RAID 0 array mode. Under RAID 6, the device can achieve a speed of 2480 MB/s.
Enjoy Rapid Video Workflows
The time needed for virtually every aspect of the post-production workflow falls when using the D16 Thunderbolt 3. At lightning speed, users can transfer several hours of footage from a Blackmagic® device to Adobe® Premiere Pro. In turn, with uncompressed HD 10-bit and 12-bit video, users can edit the ProRes 422 (HQ), ProRes 4444 XQ, and other data streams. Thumbnails and preview rendering are significantly more responsive when using large items with numerous high-definition clips.

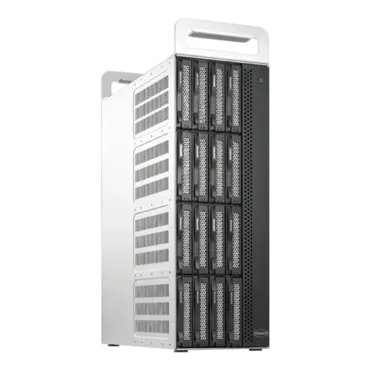

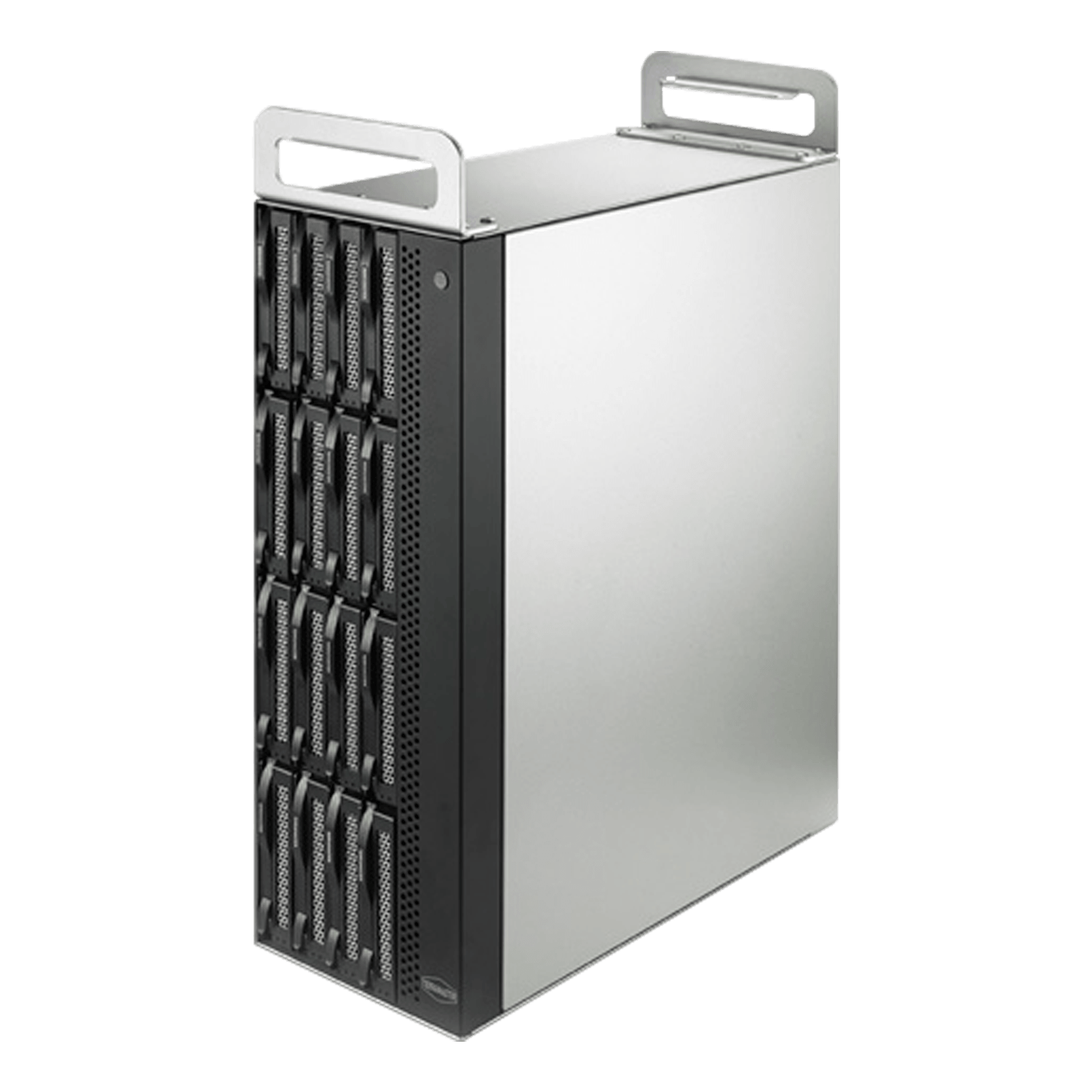

Compact design
D16 has a compact design that saves a lot of space, making it suitable for small video production teams and designers with limited desktop room. D16 has a specially designed handle that makes it easy to carry, facilitating the work of video production teams by greatly increasing convenience when out and about.
Large Storage Capacity
TerraMaster’s 16-bay D16 Thunderbolt 3 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 288TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.
| Storage | |
| Disk Slot Number | 16 |
| Compatible Disk Types | 3.5" SATA |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 288 TB (18 TB drive x 16) (Capacity will vary along with the RAID type) |
| RAIDs Supported |
SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10,RAID 6,RAID 50 Note: Mac 0S computers do not support RAlD online expansion and migration. |
| Hardware RAID | √ |
| RAID Manager Software | √ |
| RAID Manager Software Language | English, Chineses, Japanese |
| RAID Online Expansion | √ |
| RAID Migration | √ |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | / |
| HDD Sleep | / |
| HDD S.M.A.R.T. Inspection | √ |
| Sector Inspection and Parity Check | √ |
| SSD Cache | √ |
| Daisy Chain | √ |
| HDD NCQ Technology | √ |
| Alert Notice | √ |
| Event Log | √ |

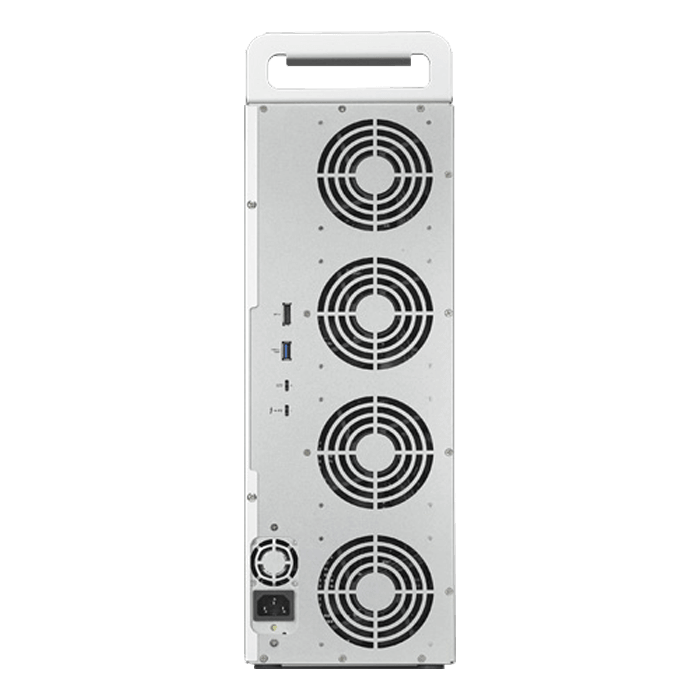

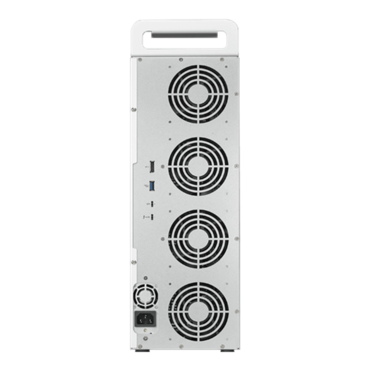

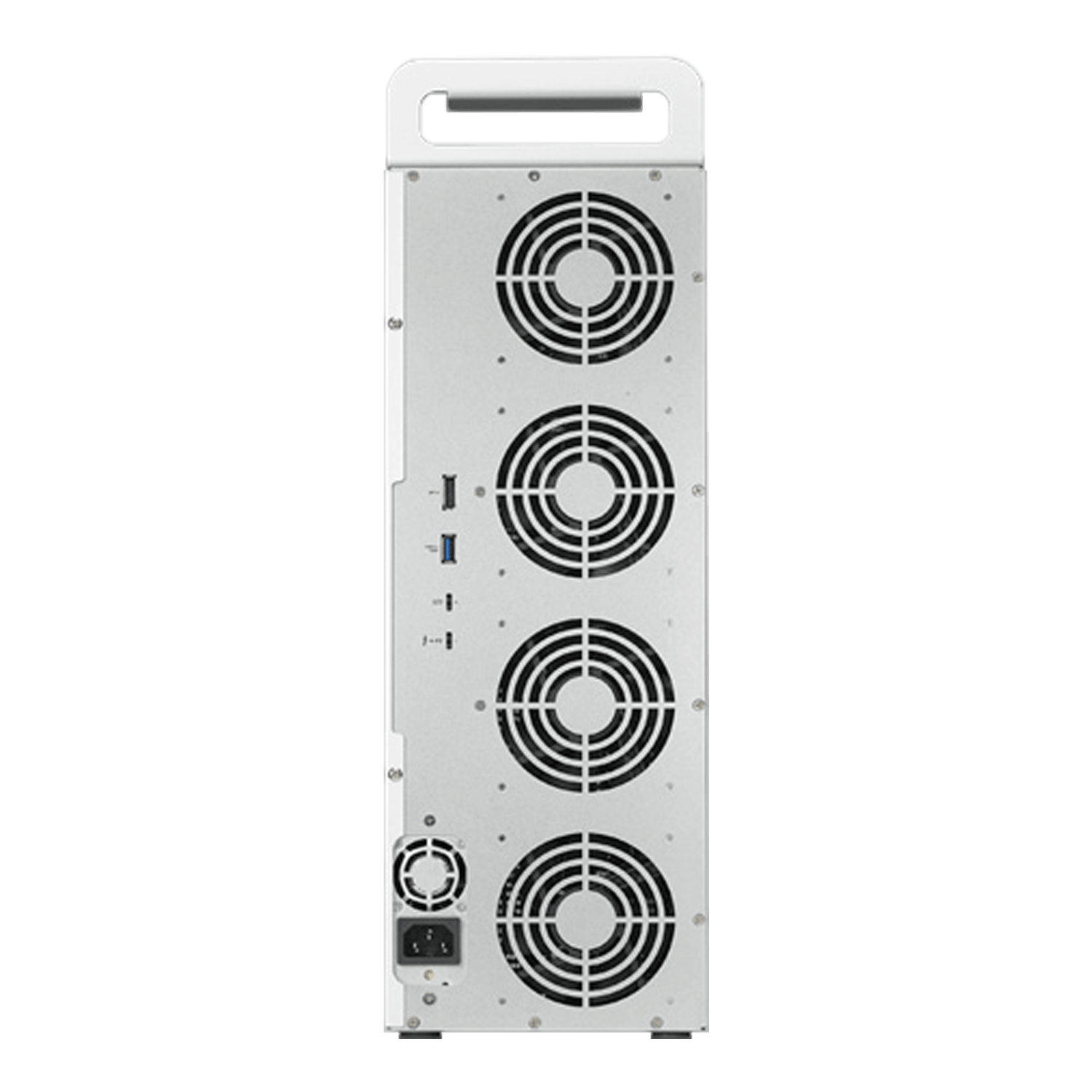

| External Ports | |
| USB | / |
| Thunderbolt Data Transmission | 40Gb Thunderbolt 3 x 1 |
| Thunderbolt Daisy Chain | 40Gb Thunderbolt 3 x 1 |
| USBhost | USB 3.1 Gen2 host (Use to connect USB storage device) |
| DP Interface | DP 1.4 x 1 |
| Power Socket | AC IN 220V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) |
Read: 2817MB/sec(RAID0, fully loaded with SSD(s)for win 10 );Read: 2786MB/sec(RAID0, fully loaded with WD Ultraster 10T HDD(s) for win 10 ) |
| Writing Speed (max.) |
Write: 2022MB/sec(RAID0, fully loaded with SSD(s) for win 10 );Write: 1550MB/sec(RAID0, fully loaded with WD Ultraster 10T HDD(s) for win 10 ) |
| Appearance | |
| Size (H*W*D) | 348*160*498 mm |
| Packaging Size (H*W*D) | 455*275*616 mm |
| Weight | |
| Others | |
| System fan | 90mm x90mm x 25mm 4PCS |
| Noise Level | 55dB(A) (Noise testing environment: Fully loaded Seagate EXOS 8TB ST8000NM000A hard drive(s) in the reading state) |
| Power Supply | |
| Power Supply | 550W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 230W(Fully loaded Seagate EXOS 8TB ST8000NM000A hard drive(s) in the reading state) |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS?Mac OS |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) 2 Meter (x1) | |
| Quick Installation Guide (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 | |
