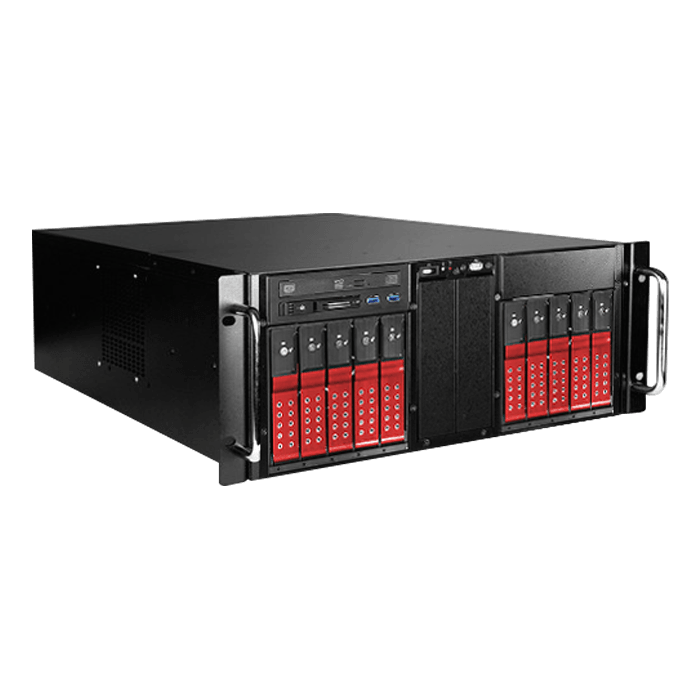

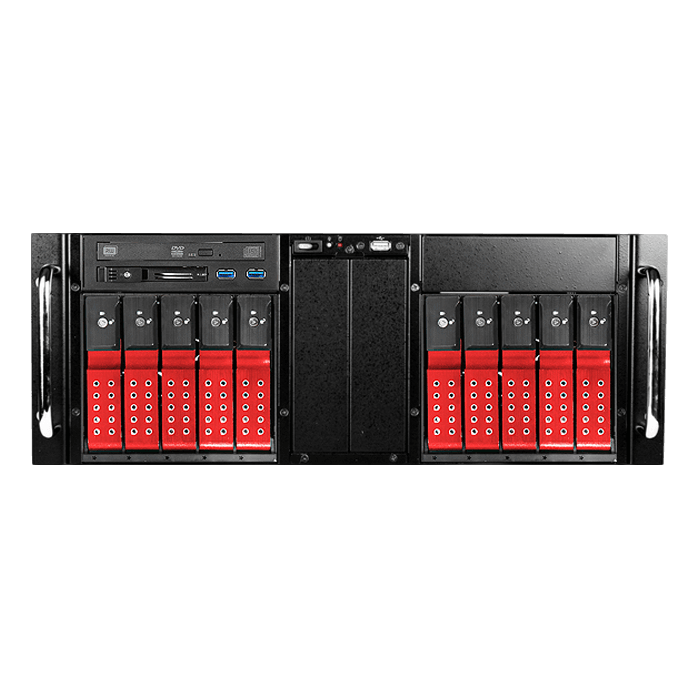

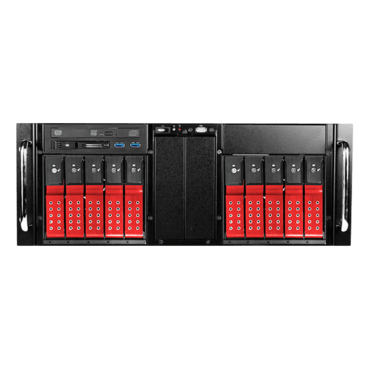

D410-DE10RD-25TU, Red HDD Handle, 1x Slim Line 5.25", 10x 3.5", 1x 2.5" Hotswap, E-ATX, Black/Red, 4U Chassis
4U industrial rackmount chassis D-410-DE10-25TU, D410-DE10RD-25TU combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 10x3.5" with USB 3.0 ports for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE10-25TU provides server or cluster maximum reliability and performance.
- Supports Up to 10x 3.5" and 1x 2.5" HDDs
- 120mm x 2 Cooling Fans on Sides
- Front Access USB2.0 with Power and HDD LEDs
- Supports 3.5" SAS/SATA and 2.5" SATA Hard Drives
- Supports 6.0Gb/s HDDs
- Compatible with Slim Optical Drive (12.7mm height)
- Trayless Hard Drive Enclosure Design
- Supports Front Access Two USB 3.0 Ports
- PS2 mini Redundant PSU Compatible
Model Number | D-410-DE10-25TU |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | Hotswap 2.5": 1
Hotswap 3.5": 10 Slim 5.25" Optical: 1 |
Hotswap HDD Type: | 3.5" SAS I/II, 3.5" SATA I/II/III, 2.5" SATA I/II/III |
Indicators | Power, HDD |
Switches | Power, Reset |
Supported PSU Type | PS2 |
Expansion Slots | 7 |
Material of Main Chassis | Zinc-Coated Steel |
Color of Main Chassis | Black |
Front Connector | 1x USB 2.0 & 2x USB 3.0 |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 2x120mm |
Ordering Information
(Part Number) |
Red 3.5" HDD Handle:D410-DE10RD-25TU |
Dimensions (WxHxD) | 19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm |
