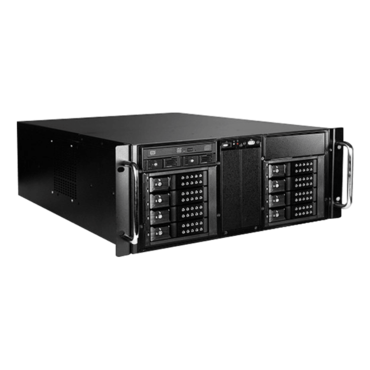

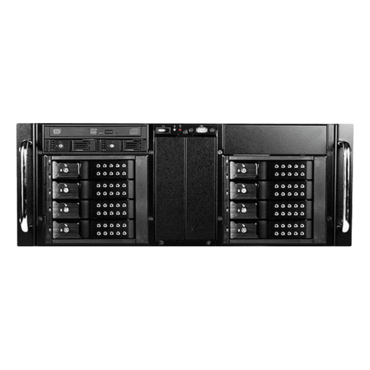

D410-DE8BK-225T, Black HDD Handle, 1x Slim 5.25", 8x 3.5", 2x 2.5" Hotswap, E-ATX, Black, 4U Chassis

Quantity:
  • SKU: 12485969
  • Manufacturer: ISTARUSA
  • MPN: D410-DE8BK-225T
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$516.69
Quantity:
D410-DE8BK-225T, Black HDD Handle, 1x Slim 5.25", 8x 3.5", 2x 2.5" Hotswap, E-ATX, Black, 4U Chassis

4U industrial rackmount chassis D-410-DE8-225T, D410-DE8BK-225T combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 8x3.5" & 2x2.5" storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE8-225T provides server or cluster maximum reliability and performance.

  • Supports Up to 8x 3.5" and 2x 2.5" HDDs
  • 120mm x 2 Cooling Fans on Sides
  • Front Access USB2.0 with Power and HDD LEDs
  • Supports 3.5" SAS/SATA and 2.5" SATA Hard Drives
  • Supports 6.0Gb/s HDDs
  • Compatible with Slim Optical Drive (12.7mm height)
  • Trayless Hard Drive Enclosure Design
  • PS2 mini Redundant PSU Compatible
Model Number D-410-DE8-225T
RoHS Compliance Yes
Form factor 4 U
Standard Drive Bays Hotswap 2.5": 2
Hotswap 3.5": 8
Slim 5.25" Optical: 1
Hotswap HDD Type: 3.5" SAS I/II, 3.5" SATA I/II/III, 2.5" SATA I/II/III
Indicators Power, HDD
Switches Power, Reset
Supported PSU Type PS2
Expansion Slots 7
Material of Main Chassis Zinc-Coated Steel
Color of Main Chassis Black
Front Connector 1x USB 2.0
Motherboard Size 12 x 13 (EATX, ATX, microATX)
Cooling Fan 2x120mm
Ordering Information
(Part Number)
Black 3.5" HDD Handle:D410-DE8BK-225T
Wood Look 3.5" HDD Handle:D410-DE8WB-225T
Dimensions (WxHxD) 19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm
