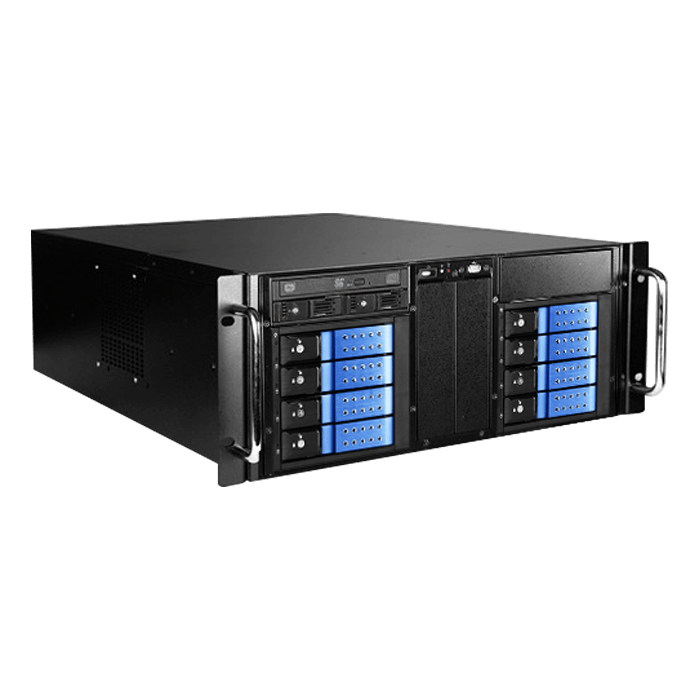

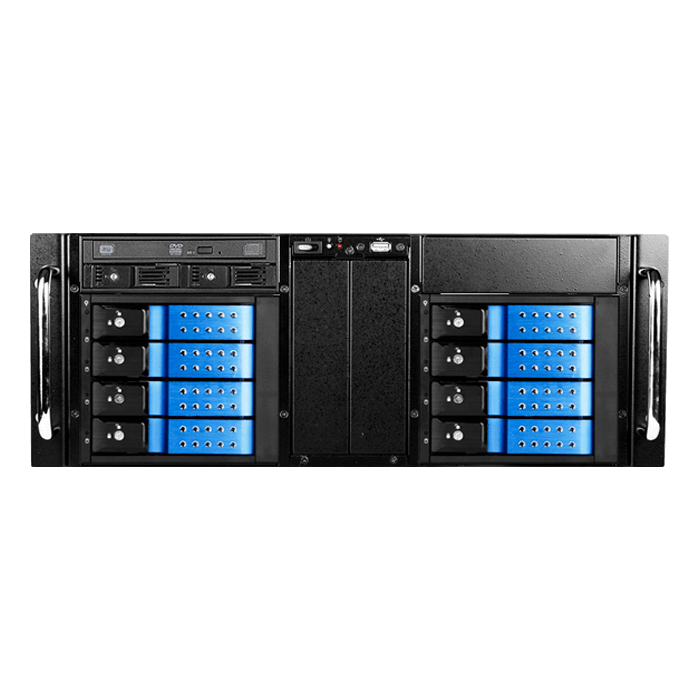

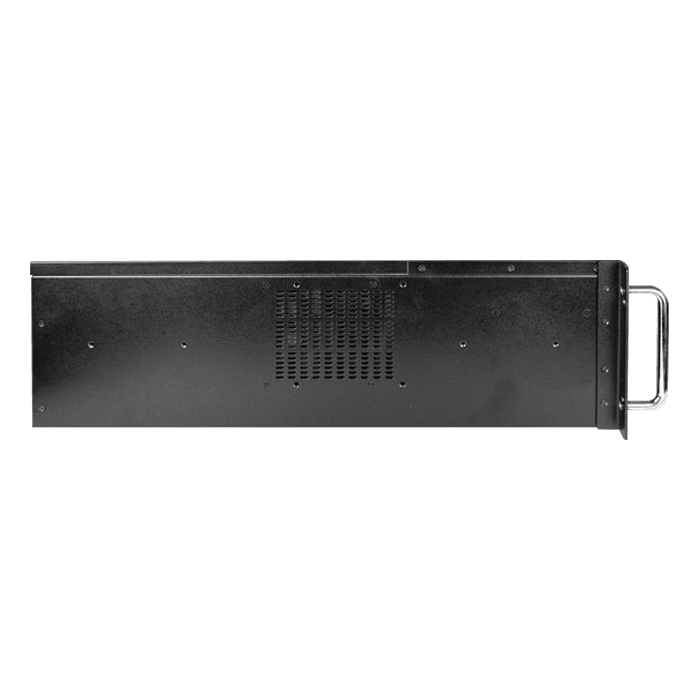

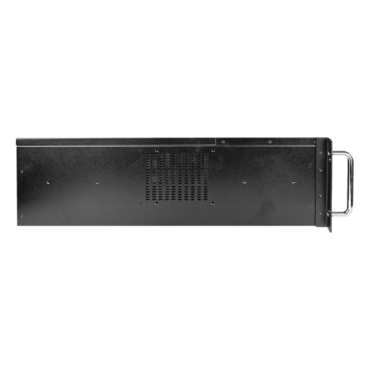

D410-DE8BL-225T, Blue HDD Handle, 1x Slim 5.25", 8x 3.5", 2x 2.5" Hotswap, E-ATX, Black/Blue, 4U Chassis
4U industrial rackmount chassis D-410-DE8-225T combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 8x3.5" & 2x2.5" storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE8-225T provides server or cluster maximum reliability and performance.
- Supports Up to 8x 3.5" and 2x 2.5" HDDs
- 120mm x 2 Cooling Fans on Sides
- Front Access USB2.0 with Power and HDD LEDs
- Supports 3.5" SAS/SATA and 2.5" SATA Hard Drives
- Supports 6.0Gb/s HDDs
- Compatible with Slim Optical Drive (12.7mm height)
- Trayless Hard Drive Enclosure Design
- PS2 mini Redundant PSU Compatible
Model Number | D-410-DE8-225T |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | Hotswap 2.5": 2
Hotswap 3.5": 8 Slim 5.25" Optical: 1 |
Hotswap HDD Type: | 3.5" SAS I/II, 3.5" SATA I/II/III, 2.5" SATA I/II/III |
Indicators | Power, HDD |
Switches | Power, Reset |
Supported PSU Type | PS2 |
Expansion Slots | 7 |
Material of Main Chassis | Zinc-Coated Steel |
Color of Main Chassis | Black |
Front Connector | 1x USB 2.0 |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 2x120mm |
Ordering Information
(Part Number) |
Blue 3.5" HDD Handle:D410-DE8BL-225T
Wood Look 3.5" HDD Handle:D410-DE8WB-225T |
Dimensions (WxHxD) | 19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm |
