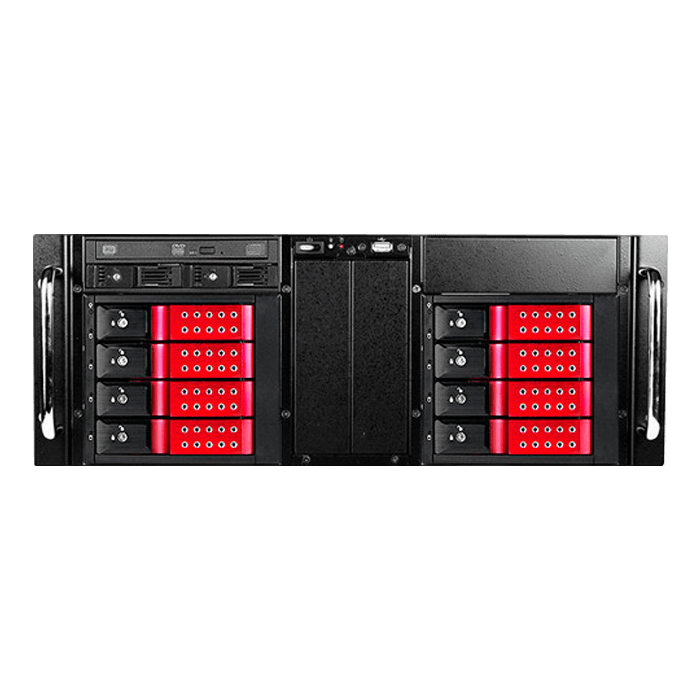

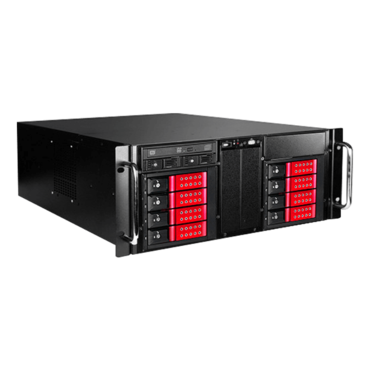

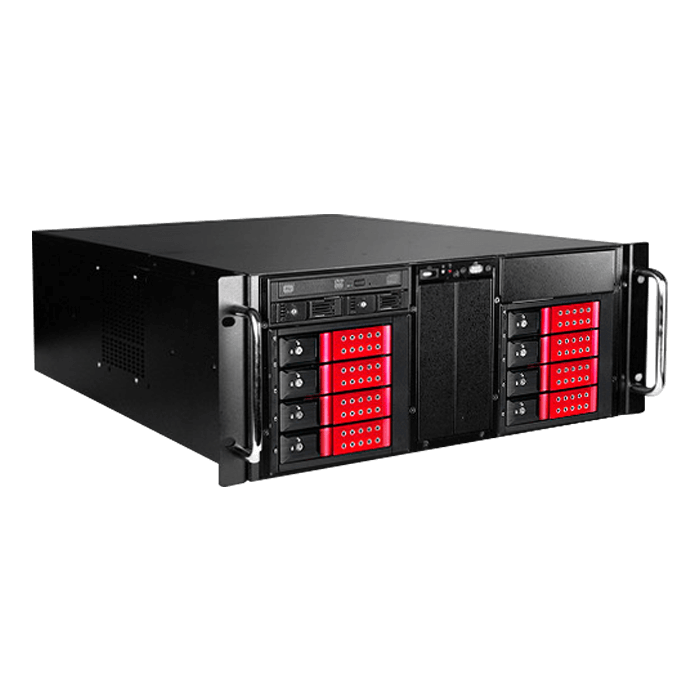

D410-DE8RD-225T, Red HDD Handle, 1x Slim 5.25", 8x 3.5", 2x 2.5" Hotswap, E-ATX, Black/Red, 4U Chassis
Quantity:
- SKU: 12482763
- Manufacturer: ISTARUSA
- MPN: D410-DE8RD-225T
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$516.69
D410-DE8RD-225T, Red HDD Handle, 1x Slim 5.25", 8x 3.5", 2x 2.5" Hotswap, E-ATX, Black/Red, 4U Chassis
4U industrial rackmount chassis D-410-DE8-225T, D410-DE8RD-225T combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 8x3.5" & 2x2.5" storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE8-225T provides server or cluster maximum reliability and performance.
- Supports up to 8x 3.5" and 2x 2.5" HDDs
- 120mm x 2 cooling fans on sides
- Front access USB2.0 with power and HDD LEDs
- Supports 3.5" SAS/SATA and 2.5" SATA hard drives
- Supports 6.0Gb/s HDDs
- Compatible with slim optical drive
- Trayless hard drive enclosure design
- PS2 mini redundant PSU compatible
| General | |
| Form Factor | Rack-mountable - 4U |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Specification Compliance | PS/2 |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 10 |
| Server Swappable Drive Interface | SATA/SAS |
| Product Material | Zinc-plated steel |
| Color | Black, red |

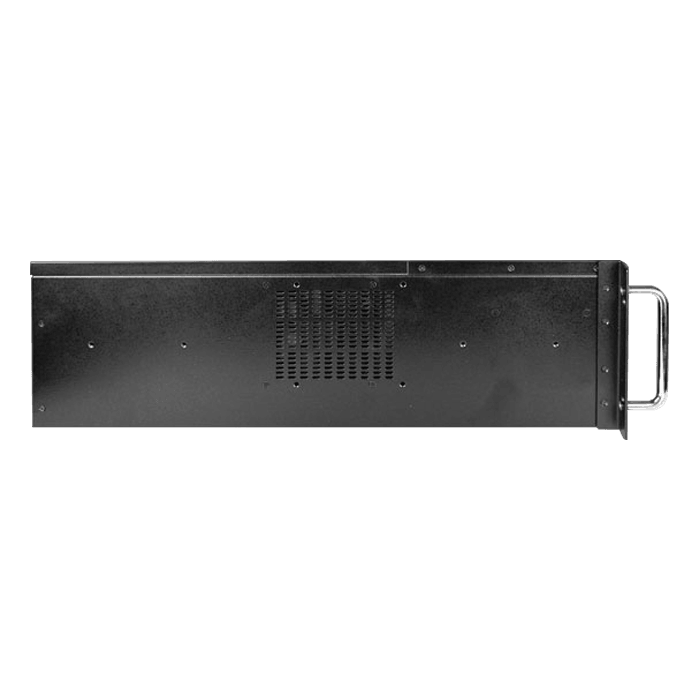

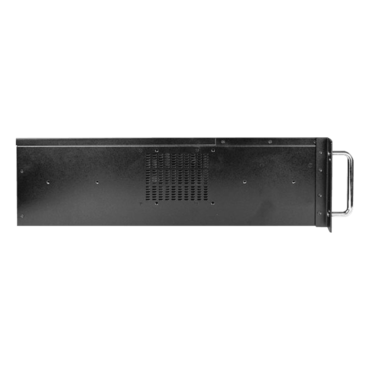

| Cooling System | Side: 120 mm fan x 2 |
| System Cabinet Features | Carrying handle |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 3.5"
2 (total) / 2 (free) x hot-swap - 2.5" 1 (total) / 1 (free) x front accessible - 5.25" Slim Line |

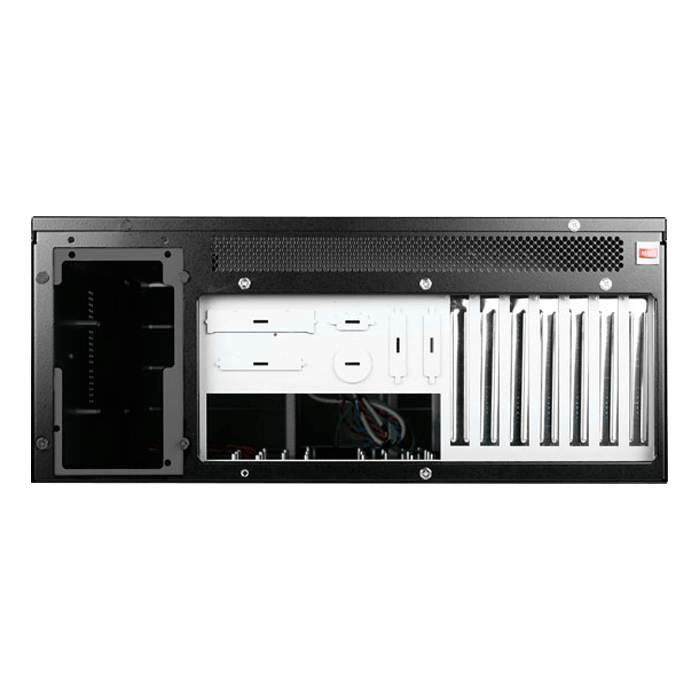

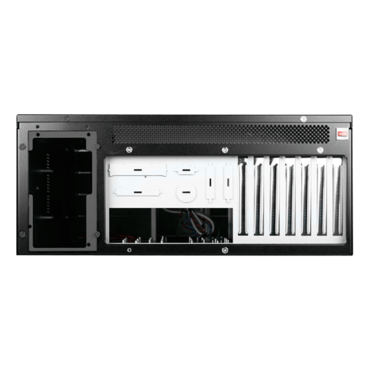

| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 1 x USB 2.0 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Device | No power supply |
| Power Redundancy | Optional |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 25 in |
| Height | 7 in |
