D8-332 8-Bay Professional-Grade RAID

Quantity:
  • SKU: 15108244
  • Manufacturer: TerraMaster
  • MPN: D8-332
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,299.99
Quantity:
D8-332 8-Bay Professional-Grade RAID

Professional and Safe

Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D8-332, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.

Large Storage Capacity

TerraMaster’s 8-bay D8-332 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 160TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.

Lightning-Fast

Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the D8-332 can operate at transfer speeds of 1600 MB/s under a 7200 RPM high-speed hard disk and RAID 0 array mode. Under RAID 5, the device can achieve a speed of 1440 MB/s.

Enjoy Rapid Video Workflows

The time needed for virtually every aspect of the post-production workflow falls when using the D8-332. At lightning speed, users can transfer several hours of footage from a Blackmagic® device to Adobe® Premiere Pro. In turn, with uncompressed HD 10-bit and 12-bit video, users can edit the ProRes 422 (HQ), ProRes 4444 XQ, and other data streams. Thumbnails and preview rendering are significantly more responsive when using large items with numerous high-definition clips.

Create the Smartest Workspace

A key feature of Thunderbolt 3 is its bandwidth capacity, which has been doubled since Thunderbolt 2. At the same time, the D8-332 benefits from a HD DP digital interface and a pair of Thunderbolt 3 interfaces. By daisy-chaining two 4K displays (or one 5K display) to the D8-332, users can augment their workspace in the smartest and most suitable way for their professional needs. Additionally, using Thunderbolt 3 connections, users can even power a compatible notebook computer.

Storage
Processor Model INTEL JHL7440 + Marvell 88SE9485
Disk Slot Number 8
Compatible Disk Types 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
File System FAT 32, FAT 16, NTFS, and EXT4
Maximum Internal Raw Capacity 160 TB (20 TB drive x 8) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10
Power Resume /
Hardware RAID
RAID Manager Software
RAID Manager Software Language English, Chineses, Japanese
RAID Online Expansion
RAID Migration
RAID Auto-rebuilding
Drive Hot Swap
The hard drive hibernates as the computer system hibernates /
The hard drive is scheduled to hibernate /
HDD S.M.A.R.T. Inspection
Sector Inspection and Parity Check
SSD Cache
Daisy Chain
HDD NCQ Technology
Alert Notice
Event Log

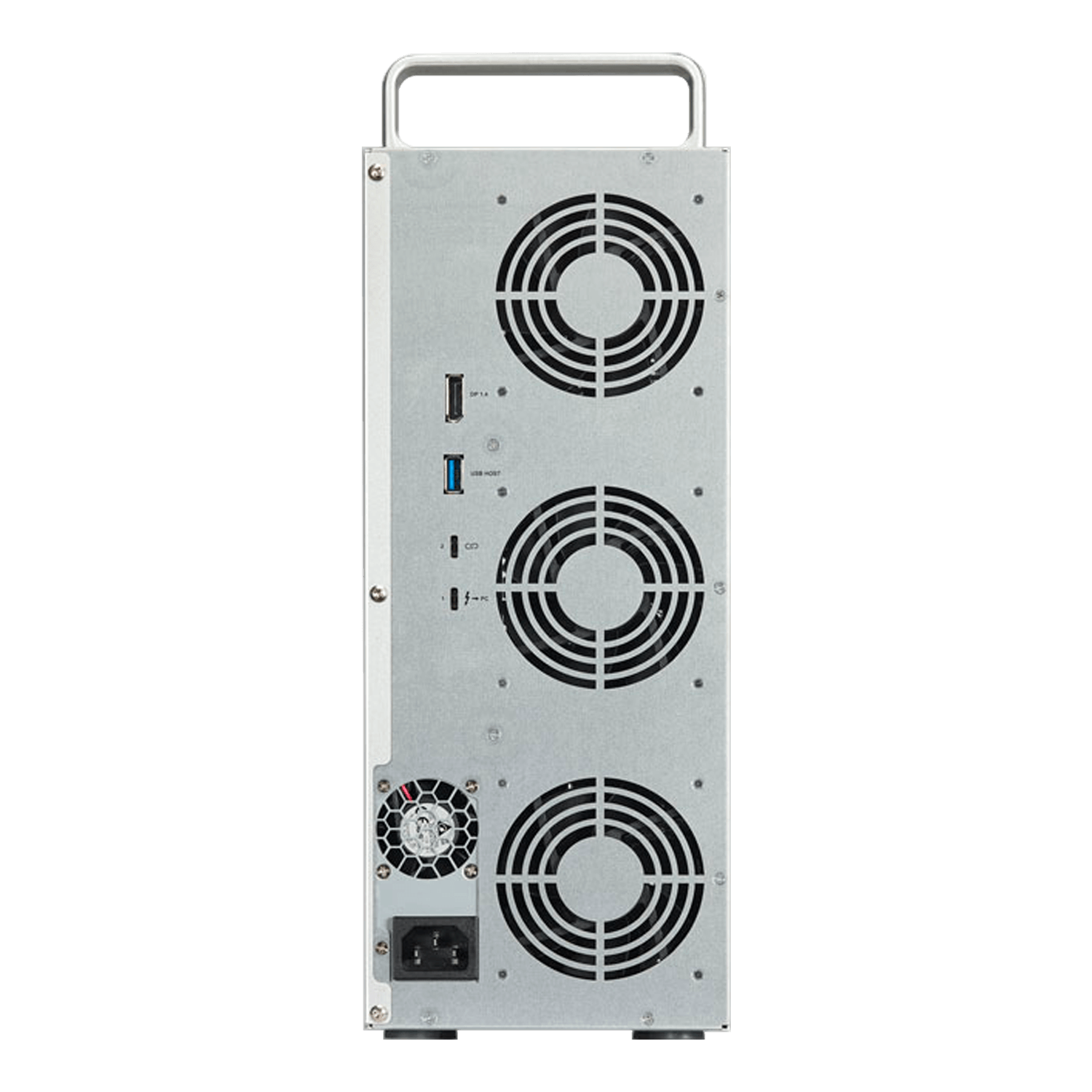

External Ports
USB Device /
USB Host
Thunderbolt Device 40Gb Thunderbolt 3 x 2
Thunderbolt Daisy Chain
DP Interface DP 1.4 x 1
RAID switch /
Power Socket AC IN 220V
Reading/writing Speed (max.)
Reading Speed (max.) Read: 1600MB/sec
Writing Speed (max.) Write:1380MB/sec (Use SSD under RAID 0 mode)
Appearance
Size (H*W*D) 334 x 135 x 295 mm
Packaging Size (H*W*D) 467 x 225 x 390 mm
Weight  net weight: Kg Gross Weight: Kg
Others
System fan 80 mm x 80 mm x25mm 3 pcs
Fan mode Smart
Noise Level 31.2 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state)
Power Supply
Power Supply  250 W
Redundancy Power Supply /
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 HZ, Single Phase
Power Consumption 96.8W(Access)
Environment Temperature
Working Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS?Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance
Package Contents: Host unit (x1)
Power cord (x1)
Thunderbolt 3 cable (40Gbps) * 1
Quick Installation Guide (x1)
/
Screws (several)
Limited Warranty Note x 1
