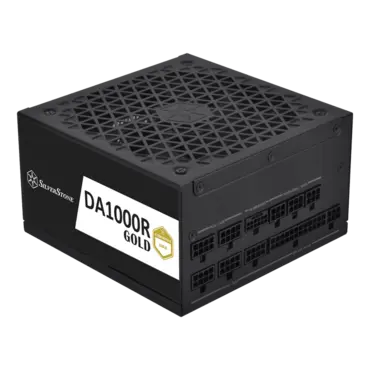

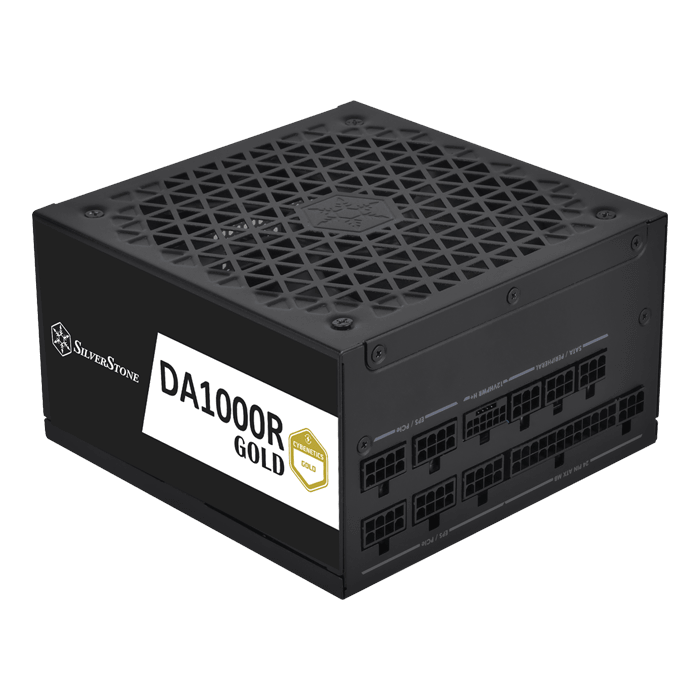

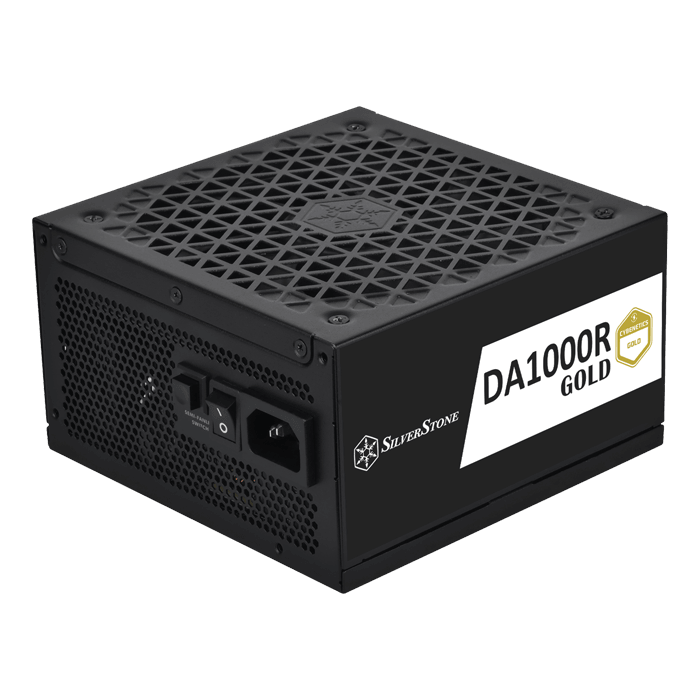

DA1000R, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Cybenetics Gold efficiency certification
- 24/7 continuous power output with 50?operating temperature
- Fully Modular design
- All Japanese electrolytic capacitors
- Ultra silent 135mm FDB fan with semi-fanless function
Product No. | SST-DA1000R-GM | ||||
Model (safety certification) | SST-AX1000MCGD-A | ||||
Color | Black (lead-free paint) | ||||
Max. DC Output | 1000W | ||||
Power density | 1000W per liter | ||||
Load Range | |||||
Output | +3.3V | +5V | +12V | +5VSB | -12V |
Max.(Amps)
|
22A | 22A | 83.5A | 3A | 0.3A |
Min.(Amps)
|
0A | 0A | 0A | 0A | 0A |
Range (%)
|
±3% | ±3% | ±5/-7% | ±5% | ±5% |
Line Reg.(%)
|
±1% | ±1% | ±1% | ±1% | ±1% |
Ripple(mVp-p)
|
30mV | 30mV | 70mV | 40mV | 40mV |
Combined +3.3V & +5V | 120W | ||||
Combined +12V | 1000W | ||||
Input Voltage | 90 ~ 264 Vrms | ||||
Input Frequency Range | 47Hz ~ 63Hz | ||||
PFC | Active PFC (PF>0.95 at full load) | ||||
Efficiency | ≥87% & <89% overall efficiency | ||||
MTBF | 100,000 hours | ||||
Operating temperature | 0°C ~ 50°C | ||||
Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation |
||||

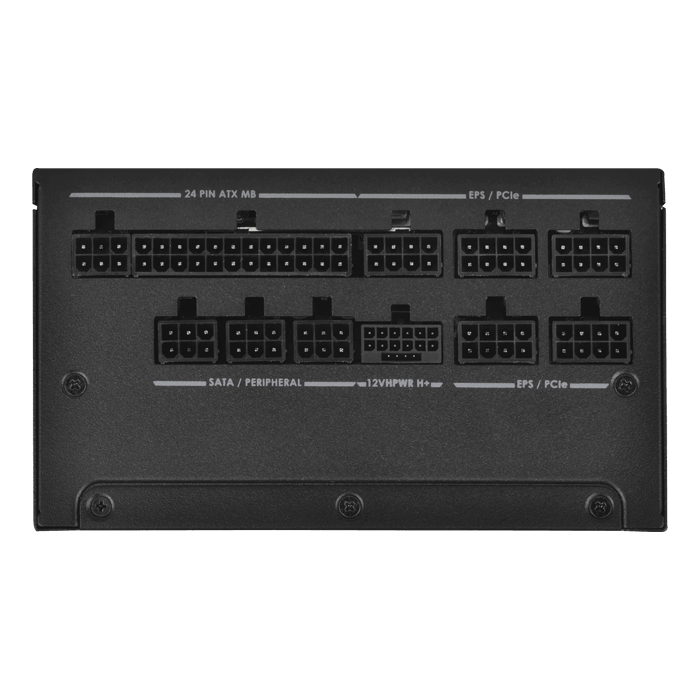

Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
||||

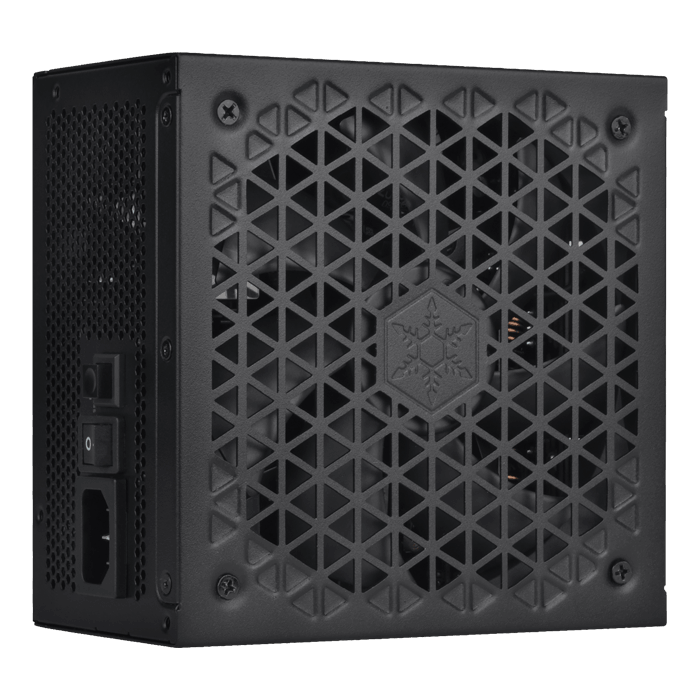

Cooling System | Silent 135mm FDB fan | ||||
Form factor | ATX (PS2) | ||||
Noise Level | 0 dBA minimum | ||||
Dimension | 150 mm (W) x 86 mm (H) x 150 mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) |
||||
Weight | 2.88 kg | ||||
Certification | Cybenetics Gold | ||||

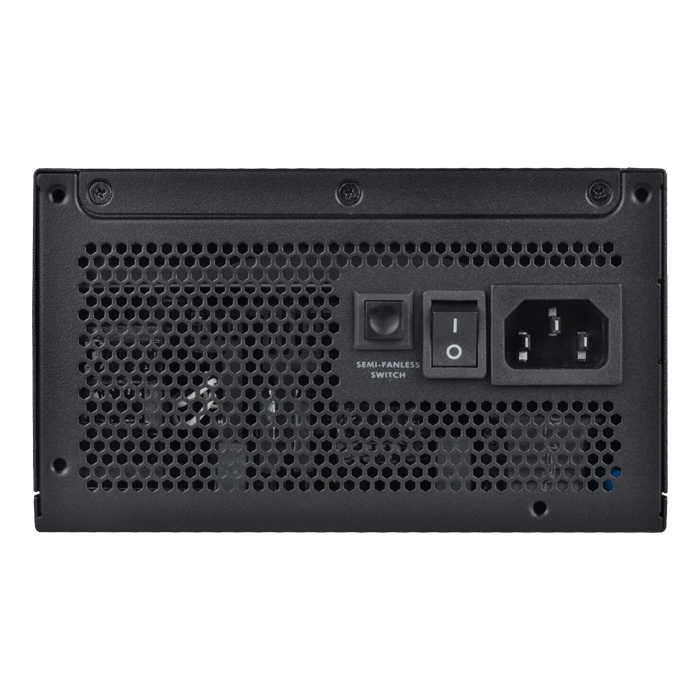

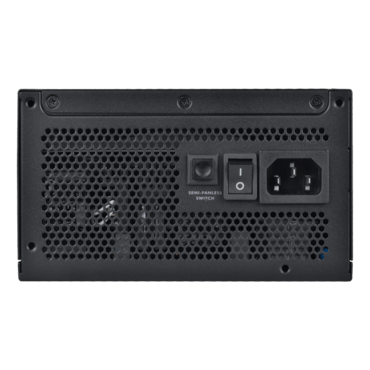

Other | Switch on rear side to activate / de-activate semi-fanless mode GPU Support list |
