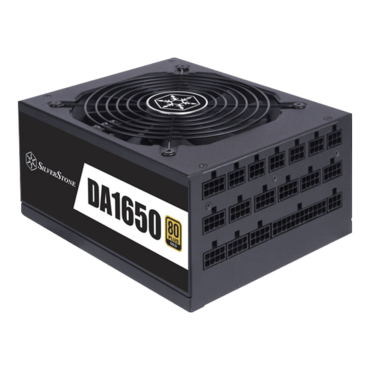

DA1650 Gold, 80 PLUS Gold 1650W, Fully Modular, ATX Power Supply
- SKU: 15627503
- Manufacturer: SILVERSTONE
- MPN: DA1650-G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$495.64
DA1650 Gold, 80 PLUS Gold 1650W, Fully Modular, ATX Power Supply
80 PLUS Gold 1650W fully modular ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 50? operating temperature
- 100% modular design with universal EPS / PCIe connector interface for maximum flexibility

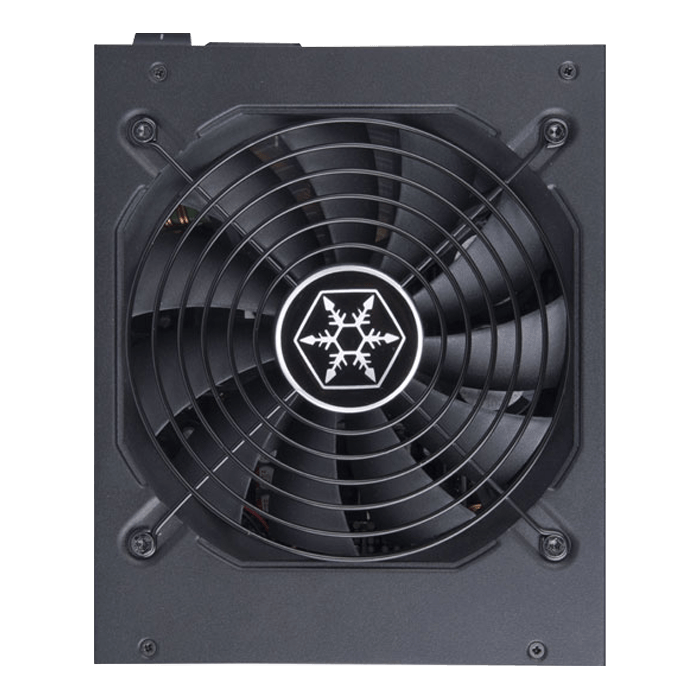

- Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
- Strict ±2% voltage regulation and low ripple & noise
- All Japanese capacitors
| Product No. | SST-DA1650-G | ||||
| Color | Black.(Lead-Free Paint) | ||||
| Max. DC Output | 1650W | ||||
| Power density | 711W per liter | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 25A | 25A | 137.5A | 3.0A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±2% | ±2% | ±2% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
| Combined +3.3V & +5V | 130W | ||||
| Combined +12V | 1650W | ||||
| Input Voltage | 90V~264V | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC(PF>0.9 at Full Load) | ||||
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
||||
| Connectors |

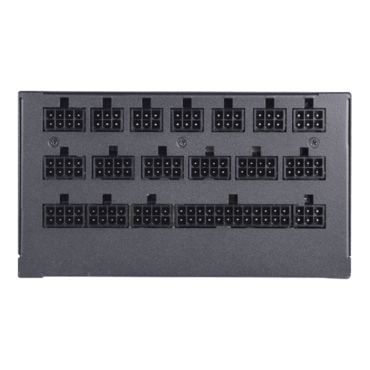

1 x 24 / 20-Pin motherboard connector (600mm) 4 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 4) 8 x 8 / 6-Pin PCIe connector ("600mm / 150mm" x 4) 4 x 8 / 6-Pin PCIe connector ("600mm" x 4) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm) |
||||
| Cooling System | Single 135mm FDB fan | ||||
| Noise Level | 0dBA ~ 36dBA | ||||
| Certification | 80 PLUS Gold | ||||
| Form factor | ATX / PS/2 | ||||
| Dimension | 150 mm (W) x 86 mm (H) x 180 mm (D) | ||||
| Weight | 2.09 kg | ||||
| Other | GPU Support list | ||||
