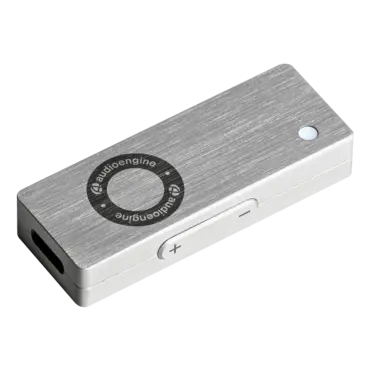

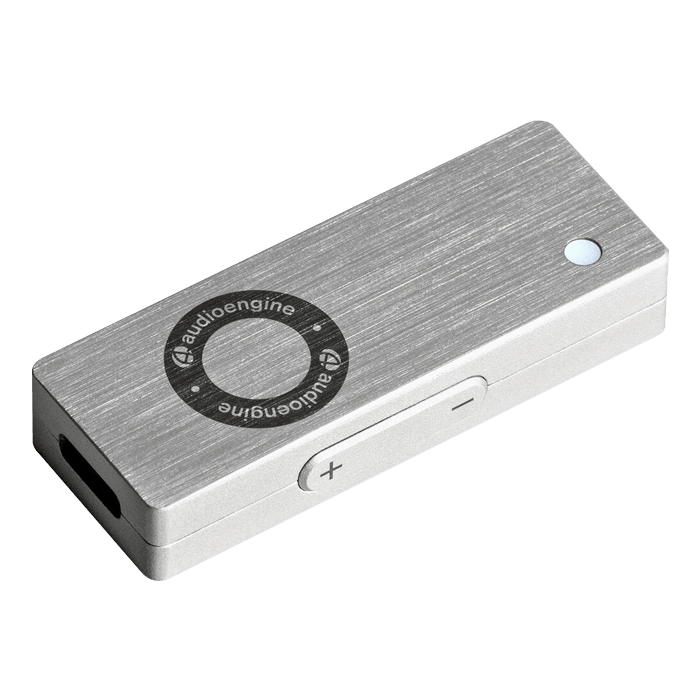

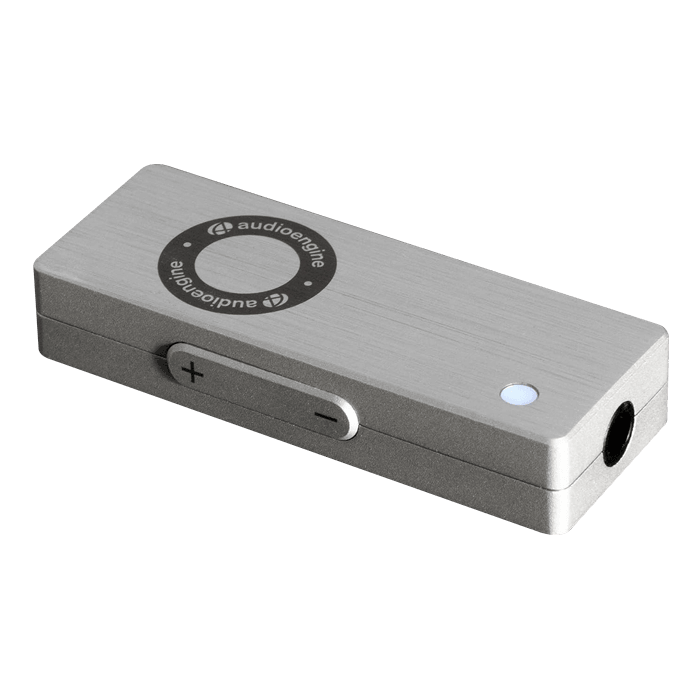

DAC3 Portable Headphone Amplifier and DAC
Quantity:
- SKU: 17534844
- Manufacturer: AUDIOENGINE
- MPN: DAC3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$149.00
| Number of Headphone Channels | Single Channel |
| Recommended Headphone Impedance | 12 Ohms |
| Headphone Output Power | Not Specified by Manufacturer |
| Digital Chipset |
DAC: 1 x ESS ES9281A |
| Analog Circuitry |
Preamplifier Op-Amp: 1x LME49726 |
| EQ | No |
| Display | No |
| Connectivity | |
| Analog Audio I/O | 1x 1/8" / 3.5 mm Line/Headphone Output |
| Digital Audio I/O | No |
| USB I/O | 1x USB-C (Digital Input, Power/Charging Input) |
| Performance | |
| Frequency Response | 10 Hz to 25 kHz ±0.5 dB |
| Maximum Output Level |
1/8" / 3.5 mm Outputs: 2 Vrms |
| Impedance |
Headphone Outputs: < 10 Kilohms |
| SNR | > 116 dB |
| Crosstalk | < -110 dB |
| Digital Audio | |
| Sample Rates |
USB-C Input: 384 kHz (PCM) 5.6 MHz (DSD) |
| Bit Depths | Up to 32-Bit |
| Compatibility | |
| Mobile Device Compatibility |
Android Smartphone Android Tablet iPad iPhone |
| Power | |
| Power Requirements | USB Bus Power |
| DC Input Power | 5 VDC at 200mA |
| Current Consumption | 200 mA |
| Physical | |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 5 to 95% () |
| Dimensions | 1.9 x 0.6 x 0.4" / 48 x 15 x 10 mm |
| Packaging Info | |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 4.2 x 4.1 x 1.2" |
