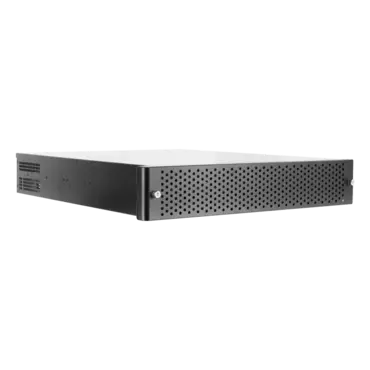

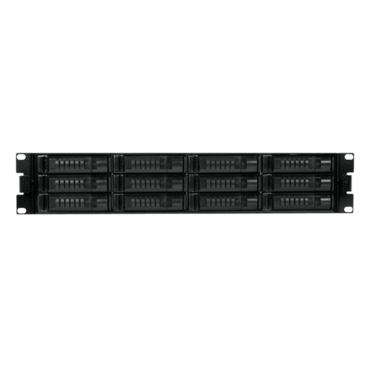

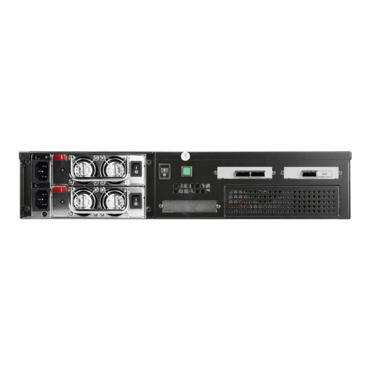

DAGE212U40BK-3MS-R, 12x 3.5" Hotswap Bays, 550W Rdt PSU, Black, 2U Chassis
Quantity:
- SKU: 12468850
- Manufacturer: ISTARUSA
- MPN: DAGE212U40BK-3MS-R
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,384.60
DAGE212U40BK-3MS-R 2U 12-bay 3.5" SAS/SATA miniSAS SFF8088 JBOD Enclosure
- Supports 12x 3.5" SAS/SATA 6Gb/s Hard Drives
- 3x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
- 4x 80mm Cooling Fans with Status Monitor
- LED Indicators for Power and Activity on Each Hard Drive
- Power and Alarm Reset Switch
- Optional Redundant Power Supply
- Fully RoHS Compliance
- Hot-swappable Both on Host and D
| Model Number | DAGE212U40BK-3MS |
| RoHS Compliance | Yes |
| Form Factor | 2U |
| Host Interface | 3x miniSAS (SFF8088) |
| HDD Interface | 3.5" SAS I/II & SATA I/II/III |
| Hotswap 3.5" | 12 |
| LED Display | HDD Activity |
| Material | Heavy-Duty Cold-Roll Steel |
| Main Color | Black |
| Power Supply | 500W |
| Raid Level | Configured by Host Controller |
| Cooling Fan | 4x80mm |
| Ordering Information
(Part Number) |
with 500W Single PSU: DAGE212U40BK-3MS
with 550W Redundant PSU:DAGE212U40BK-3MS-R |
| Dimensions (WxHxD) | 19.00" x 3.50" x 22.50"
482.6 mm x 88.9 mm x 571.5 mm |
