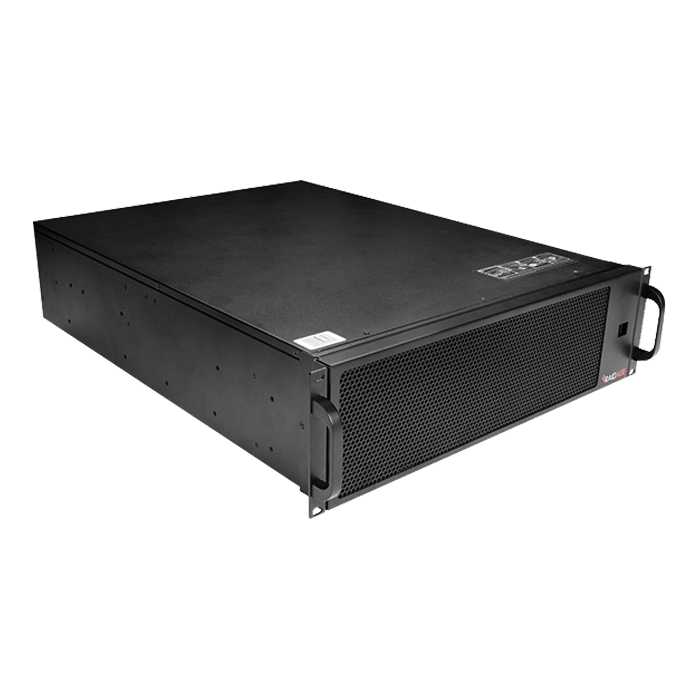

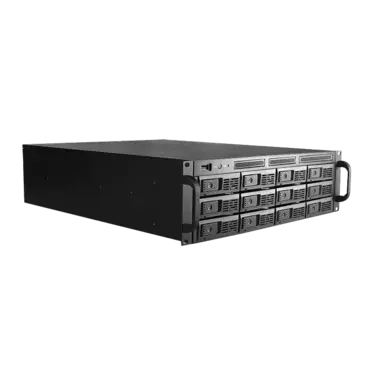

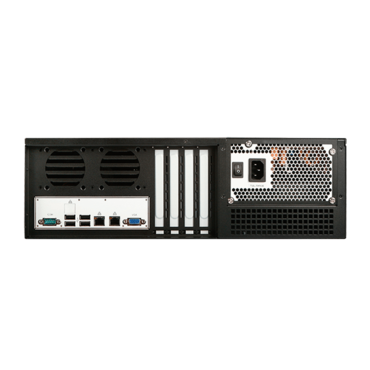

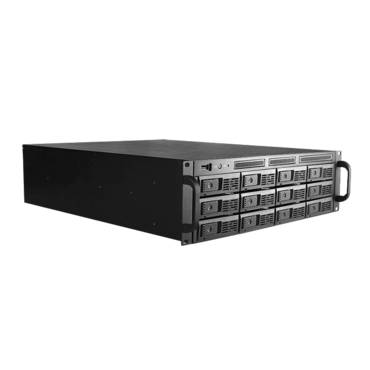

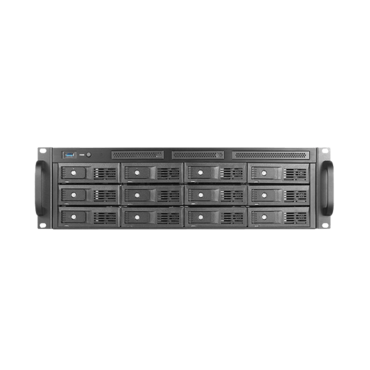

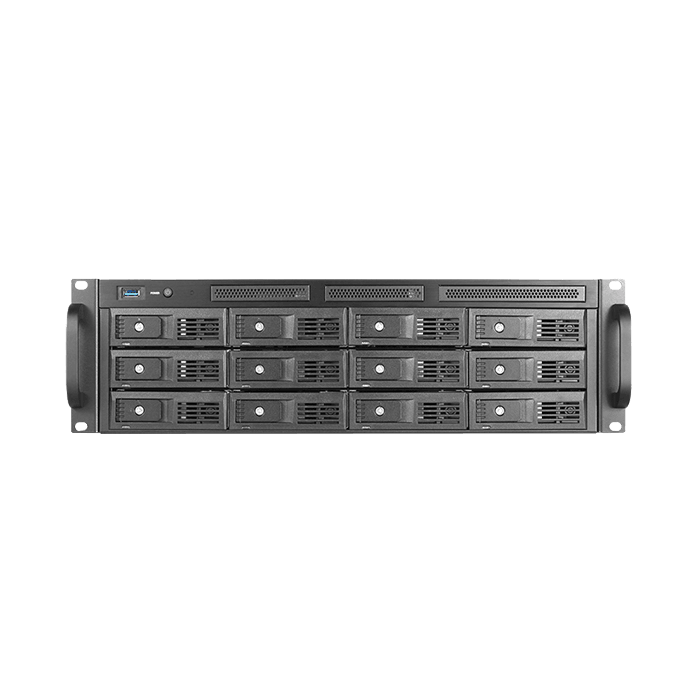

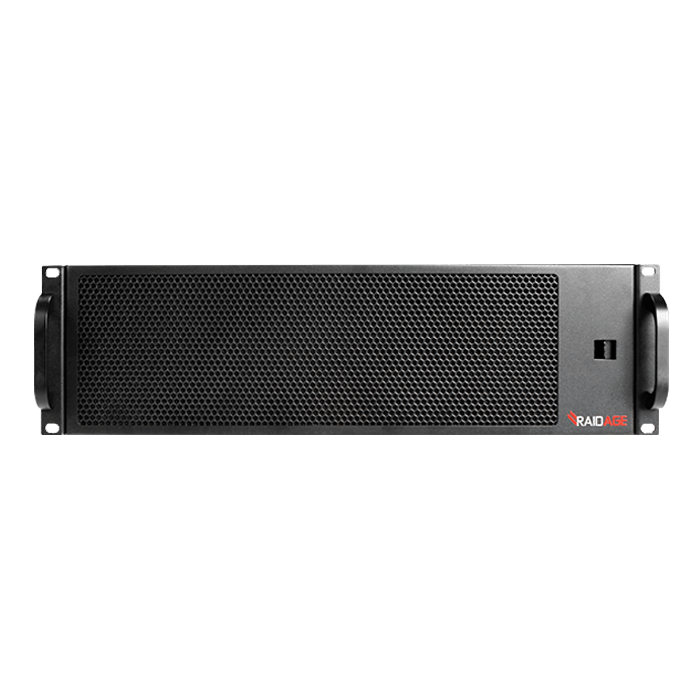

DAGE312UTL-NAS, 12x 3.5" Hotswap Bays, 500W PSU, Black, 3U Chassis
DAGE312UTL-NAS is an external 3U-12 bay hot-swappable SATA rackmount disk array NAS storage chassis. It provides users a most big storage capacity for up to 12 hard drives for RAID configurations in 3U form factor. Three 120mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE312UTL-NAS provides maximum storage and performance to high density storage system.
- Supports 12x SATA 6Gb/s Hard Drives
- LED Indicators for Power and Activity on Each Hard Drive
- 3x 120mm Cooling Fans for Ventilation
- Trayless Design
- 500W Power Supply Included
Model Number | DAGE312UTL-NAS |
RoHS Compliance Version | Yes |
Form Factor | 3U |
Host Interface | RJ45 |
HDD Interface | 3.5" SATA I/II/III |
Hotswap 3.5" | 12 |
LED Display | Power and HDD Activity |
Material | Steel |
Main Color | Black |
Power Supply | 500W Single PSU |
Raid Level | 0,1,3,5,6,10, 30, 50, 60 |
Cooling Fan | 3x120mm |
Dimensions (WxHxD) | 19.00" x 5.25" x 22.83"
482.6 mm x 133.4 mm x 579.9 mm |
